Android ViewPager2 Tutorial with Examples

Android ViewPager2 vs ViewPager
Example: ViewPager2
Example: Transformation

1. Android ViewPager2 vs ViewPager

Android ViewPager is an interface component introduced in Android support library. It allows the user to swipe left or right to view a completely new page (screen).

ViewPager/ViewPager2

A ViewPager/ViewPager2 where each page fills the screen, which the user will swipe left to move to the next page, or swipe right to go back one page.

A ViewPager/ViewPager2 seen on Duolingo language learning app.

ViewPager2 vs ViewPager

As we all know, the Android team is constantly releasing new updates and improvements to the Android Framework. One of the components that received major updates is ViewPager2. ViewPager2 is the replacement of ViewPager and got few performance improvements and additional functionalities.

So what's new in ViewPager2?

ViewPager2 is an improvised version of ViewPager that provides additional functionalities and addresses common issues faced in ViewPager.
ViewPager2 is built on top of RecyclerView. So you will have great advantages that a RecyclerView has. For example, you can take advantage of DiffUtils to efficiently calculate the difference between data sets and update the ViewPager with animations.
ViewPager2 supports vertical orientation. If you use ViewPager, you must write additional customizations for ViewPager to get the same results.
ViewPager2 as Right-to-Left (RTL) support and this will be enabled automatically based on App Locale.
When working with a set of Fragment(s). If one of the Fragment(s) changes its interface, you just need to call the notifyDatasetChanged() method to update the application's interface properly.
ViewPager2 supports page transformations i.e you can provide animations when switching between pages. You can also write your own custom PageTransformer.
PagerAdapter is replaced by RecyclerView.
FragmentStatePagerAdapter is replaced by FragmentStateAdapter.

Library

ViewPager2 is a component which is not available in the standard library of Android, so if you want to use it, you have to install it into your project.

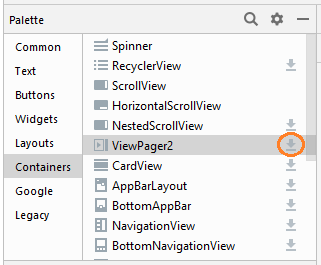

You can install ViewPager2 from the Palette of the design view.

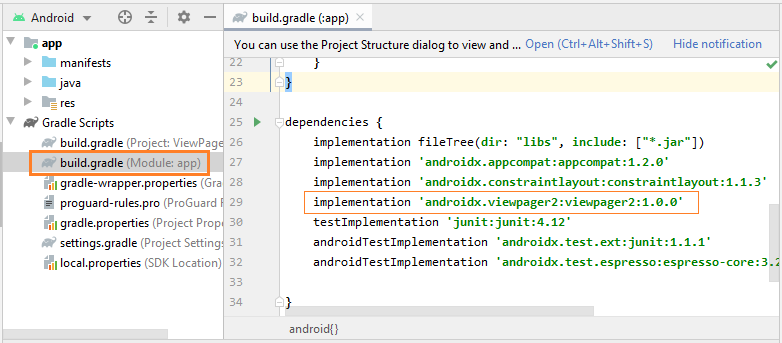

After the complete installation, you see the ViewPager2 library be declared in build.gradle (Module: app).

implementation 'androidx.viewpager2:viewpager2:1.0.0'

https://mvnrepository.com/artifact/androidx.viewpager2/viewpager2

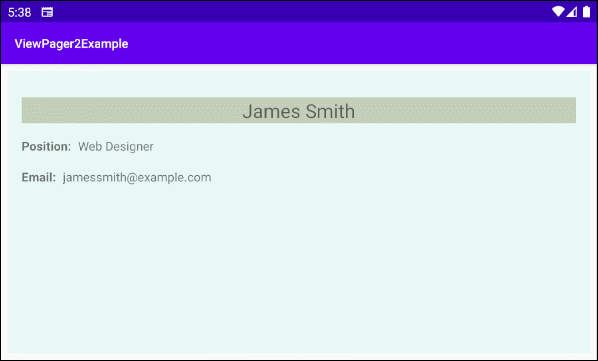

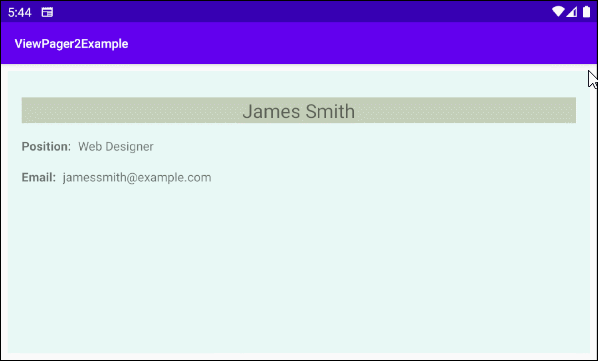

2. Example: ViewPager2

Now we are practicing a example of ViewPager2 and using Fragment as a blueprint for each page. Here is the preview image of the example:

The fragment_employee_page.xml file is an interface blueprint of a Page.
EmployeePageFragment class contains data of the Employee object and displays them on one Page.

On Android Studio, create a project:

File > New > New Project > Empty Activity
- Name: ViewPager2Example
- Package name: org.o7planning.viewpager2example
- Language: Java

As mentioned above, ViewPager2 is a component which is not available in the standard library of Android. Thus, in the next step, you need to install it into your project from the Palette of the design view.

Then create a Fragment (EmployeePageFragment) which is corresponding to one Page of ViewPager2:

File > New > Fragment > Fragment (Blank)

Fragment Name: EmployeePageFragment
Fragment Layout Name: fragment_page_employee
Source Language: Java

As you can see, two files are created:

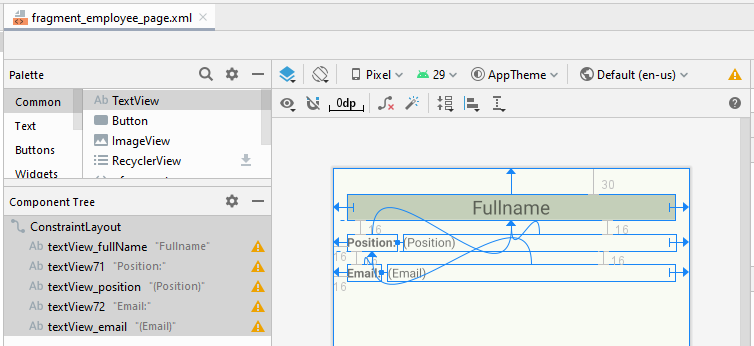

Next, open the fragment_employee_page.xml file to design its interface.

fragment_employee_page.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextView
        android:id="@+id/textView_fullName"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="30dp"
        android:layout_marginEnd="16dp"
        android:layout_marginRight="16dp"
        android:background="#C4CFB9"
        android:gravity="center_horizontal"
        android:text="Fullname"
        android:textSize="22sp"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <TextView
        android:id="@+id/textView71"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="16dp"
        android:text="Position:"
        android:textStyle="bold"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/textView_fullName" />

    <TextView
        android:id="@+id/textView_position"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:layout_marginLeft="8dp"
        android:layout_marginTop="16dp"
        android:layout_marginEnd="16dp"
        android:layout_marginRight="16dp"
        android:text="(Position)"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toEndOf="@+id/textView71"
        app:layout_constraintTop_toBottomOf="@+id/textView_fullName" />

    <TextView
        android:id="@+id/textView72"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="16dp"
        android:text="Email:"
        android:textStyle="bold"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/textView71" />

    <TextView
        android:id="@+id/textView_email"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:layout_marginLeft="8dp"
        android:layout_marginTop="16dp"
        android:layout_marginEnd="16dp"
        android:layout_marginRight="16dp"
        android:text="(Email)"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toEndOf="@+id/textView72"
        app:layout_constraintTop_toBottomOf="@+id/textView71" />

</androidx.constraintlayout.widget.ConstraintLayout>

EmployeePageFragment.java

package org.o7planning.viewpager2example;

import android.graphics.Color;
import android.os.Bundle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.fragment.app.Fragment;

public class EmployeePageFragment  extends Fragment {

    private static final String LOG_TAG = "AndroidExample";

    private Employee employee;

    private TextView textViewEmail;
    private TextView textViewPosition;
    private TextView textViewFullName;

    private static int counter = 0;

    // IMPORTANT:
    // Required default public constructor.
    // If configuration change.
    // For example: User rotate the Phone,
    //  Android will create new Fragment (EmployeePageFragment) via default Constructor
    //  so this.employee will be null.
    public EmployeePageFragment() {

    }

    public EmployeePageFragment(Employee employee) {
        this.employee = employee;
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = (ViewGroup) inflater.inflate(
                R.layout.fragment_employee_page, container, false);

        counter++;
        if(counter % 2 == 0) {
            view.setBackgroundColor(Color.parseColor("#ebdef0"));
        } else  {
            view.setBackgroundColor(Color.parseColor("#e8f8f5"));
        }

        this.textViewFullName = view.findViewById(R.id.textView_fullName);
        this.textViewPosition = view.findViewById(R.id.textView_position);
        this.textViewEmail = view.findViewById(R.id.textView_email);

        return view;
    }


    // Called when configuration change.
    // For example: User rotate the Phone,
    //  Android will create new Fragment (EmployeePageFragment) object via default Constructor
    //  so this.employee will be null.
    @Override
    public void onSaveInstanceState(@NonNull Bundle outState) {
        Log.i(LOG_TAG, "onSaveInstanceState: save employee data to Bundle");
        // Convert employee object to Bundle.
        Bundle dataBundle = this.employeeToBundle(this.employee);
        outState.putAll(dataBundle);

        super.onSaveInstanceState(outState);
    }


    @Override
    public void onViewStateRestored(@Nullable Bundle savedInstanceState) {
        Log.i(LOG_TAG, "onViewStateRestored");

        super.onViewStateRestored(savedInstanceState);
    }

    @Override
    public void onViewCreated(@NonNull View view, @Nullable Bundle savedInstanceState) {
        Log.i(LOG_TAG, "onViewCreated");
        super.onViewCreated(view, savedInstanceState);

        if(this.employee == null)  {
            Log.i(LOG_TAG, "Get employee data from savedInstanceState");
            // The state was saved by onSaveInstanceState(Bundle outState) method.
            this.employee = this.bundleToEmployee(savedInstanceState);
        }
        this.showInGUI(this.employee);
    }

    // Call where View ready.
    private void showInGUI(Employee employee)  {
        this.textViewFullName.setText(employee.getFullName());
        this.textViewPosition.setText(employee.getPosition());
        this.textViewEmail.setText(employee.getEmail());
    }

    private Bundle employeeToBundle(Employee employee)  {
        Bundle bundle = new Bundle();
        bundle.putString("fullName", employee.getFullName());
        bundle.putString("position", employee.getPosition());
        bundle.putString("email", employee.getEmail());

        return bundle;
    }

    private Employee bundleToEmployee(Bundle savedInstanceState) {
        String fullName = savedInstanceState.getString("fullName");
        String position = savedInstanceState.getString("position");
        String email = savedInstanceState.getString("email");
        return new Employee(fullName, email, position);
    }

}

EmployeeFragmentStateAdapter.java

package org.o7planning.viewpager2example;

import androidx.annotation.NonNull;
import androidx.fragment.app.Fragment;
import androidx.fragment.app.FragmentActivity;
import androidx.viewpager2.adapter.FragmentStateAdapter;

import java.util.ArrayList;
import java.util.List;

public class EmployeeFragmentStateAdapter extends FragmentStateAdapter {

    private List<Employee> employees;


    public EmployeeFragmentStateAdapter(@NonNull FragmentActivity fragmentActivity) {
        super(fragmentActivity);

        this.employees = this.intDatas();
    }

    private List<Employee> intDatas()  {
        Employee emp1 = new Employee("James Smith", "jamessmith@example.com", "Web Designer");
        Employee emp2 = new Employee("Elizabeth Johnson", "elizabethjohnson@example.com", "Project Manager");
        Employee emp3 = new Employee("Catherine Johnson", "catherinejohnson@example.com", "President of Sales");

        List<Employee> list = new ArrayList<Employee>();
        list.add(emp1);
        list.add(emp2);
        list.add(emp3);
        return list;
    }

    @NonNull
    @Override
    public Fragment createFragment(int position) {
        Employee employee = this.employees.get(position);
        return new EmployeePageFragment(employee);
    }


    @Override
    public int getItemCount() {
        return this.employees.size();
    }
}

Employee.java

package org.o7planning.viewpager2example;

public class Employee {

    private String fullName;
    private String email;
    private String position;

    public Employee(String fullName, String email, String position) {
        this.fullName = fullName;
        this.email = email;
        this.position = position;
    }

    public String getFullName() {
        return fullName;
    }

    public void setFullName(String fullName) {
        this.fullName = fullName;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getPosition() {
        return position;
    }

    public void setPosition(String position) {
        this.position = position;
    }

}

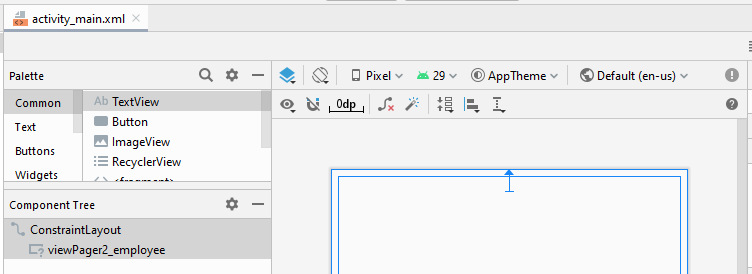

This is the main interface of the application:

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <androidx.viewpager2.widget.ViewPager2
        android:id="@+id/viewPager2_employee"
        android:layout_width="0dp"
        android:layout_height="0dp"
        android:layout_marginStart="8dp"
        android:layout_marginLeft="8dp"
        android:layout_marginTop="8dp"
        android:layout_marginEnd="8dp"
        android:layout_marginRight="8dp"
        android:layout_marginBottom="8dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>

MainActivity.java

package org.o7planning.viewpager2example;

import androidx.appcompat.app.AppCompatActivity;
import androidx.viewpager2.widget.ViewPager2;

import android.os.Bundle;

public class MainActivity extends AppCompatActivity {

    private ViewPager2 viewPager2Employee;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        this.viewPager2Employee = findViewById(R.id.viewPager2_employee);

        // Employee FragmentStateAdapter.
        EmployeeFragmentStateAdapter adapter = new EmployeeFragmentStateAdapter(this);
        this.viewPager2Employee.setAdapter(adapter);
    }

}

3. Example: Transformation

To show the animation effect when the user switches between pages, you need to write a class that implements the interface ViewPager2.PageTransformer and provides it for the ViewPager2 object.

ViewPager2 viewPager = findViewById(R.id.pager);
...
viewPager.setPageTransformer(new YourPageTransformer());

The interface ViewPager2.PageTransformer has only one transformPage() method which is called once for each transition.

/**
 * Apply a property transformation to the given page.
 *
 * @param page Apply the transformation to this page
 * @param position Position of page relative to the current front-and-center
 *                 position of the pager. 0 is front and center. 1 is one full
 *                 page position to the right, and -2 is two pages to the left.
 *                 Minimum / maximum observed values depend on how many pages we keep
 *                 attached, which depends on offscreenPageLimit.
 *
 * @see #setOffscreenPageLimit(int)
 */
void transformPage(@NonNull View page, float position);

Let's keep going with the example above, we are now adding animation effects to it.

Zoom Out Page Transformer

ZoomOutPageTransformer.java

package org.o7planning.viewpager2example.transformer;

import android.view.View;

import androidx.viewpager2.widget.ViewPager2;

public class ZoomOutPageTransformer implements ViewPager2.PageTransformer {
    private static final float MIN_SCALE = 0.85f;
    private static final float MIN_ALPHA = 0.5f;

    public void transformPage(View view, float position) {
        int pageWidth = view.getWidth();
        int pageHeight = view.getHeight();

        if (position < -1) { // [-Infinity,-1)
            // This page is way off-screen to the left.
            view.setAlpha(0f);

        } else if (position <= 1) { // [-1,1]
            // Modify the default slide transition to shrink the page as well
            float scaleFactor = Math.max(MIN_SCALE, 1 - Math.abs(position));
            float vertMargin = pageHeight * (1 - scaleFactor) / 2;
            float horzMargin = pageWidth * (1 - scaleFactor) / 2;
            if (position < 0) {
                view.setTranslationX(horzMargin - vertMargin / 2);
            } else {
                view.setTranslationX(-horzMargin + vertMargin / 2);
            }

            // Scale the page down (between MIN_SCALE and 1)
            view.setScaleX(scaleFactor);
            view.setScaleY(scaleFactor);

            // Fade the page relative to its size.
            view.setAlpha(MIN_ALPHA +
                    (scaleFactor - MIN_SCALE) /
                            (1 - MIN_SCALE) * (1 - MIN_ALPHA));

        } else { // (1,+Infinity]
            // This page is way off-screen to the right.
            view.setAlpha(0f);
        }
    }
}

MainActivity.java (Zoom Out Page Transformer)

package org.o7planning.viewpager2example;

import androidx.appcompat.app.AppCompatActivity;
import androidx.viewpager2.widget.ViewPager2;

import android.os.Bundle;
import org.o7planning.viewpager2example.transformer.ZoomOutPageTransformer;

public class MainActivity extends AppCompatActivity {

    private ViewPager2 viewPager2Employee;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        this.viewPager2Employee = findViewById(R.id.viewPager2_employee);

        // Employee FragmentStateAdapter.
        EmployeeFragmentStateAdapter adapter = new EmployeeFragmentStateAdapter(this);
        this.viewPager2Employee.setAdapter(adapter);

        // PageTransformer
        this.viewPager2Employee.setPageTransformer(new ZoomOutPageTransformer());

    }
}

Depth Page Transformer

DepthPageTransformer.java

package org.o7planning.viewpager2example.transformer;

import android.view.View;

import androidx.annotation.RequiresApi;
import androidx.viewpager2.widget.ViewPager2;

@RequiresApi(21)
public class DepthPageTransformer implements ViewPager2.PageTransformer {
    private static final float MIN_SCALE = 0.75f;

    public void transformPage(View view, float position) {
        int pageWidth = view.getWidth();

        if (position < -1) { // [-Infinity,-1)
            // This page is way off-screen to the left.
            view.setAlpha(0f);

        } else if (position <= 0) { // [-1,0]
            // Use the default slide transition when moving to the left page
            view.setAlpha(1f);
            view.setTranslationX(0f);
            view.setTranslationZ(0f);
            view.setScaleX(1f);
            view.setScaleY(1f);

        } else if (position <= 1) { // (0,1]
            // Fade the page out.
            view.setAlpha(1 - position);

            // Counteract the default slide transition
            view.setTranslationX(pageWidth * -position);
            // Move it behind the left page
            view.setTranslationZ(-1f);

            // Scale the page down (between MIN_SCALE and 1)
            float scaleFactor = MIN_SCALE
                    + (1 - MIN_SCALE) * (1 - Math.abs(position));
            view.setScaleX(scaleFactor);
            view.setScaleY(scaleFactor);

        } else { // (1,+Infinity]
            // This page is way off-screen to the right.
            view.setAlpha(0f);
        }
    }
}

MainActivity.java (Depth Page Transformer)

package org.o7planning.viewpager2example;

import androidx.appcompat.app.AppCompatActivity;
import androidx.viewpager2.widget.ViewPager2;

import android.os.Build;
import android.os.Bundle;

import org.o7planning.viewpager2example.transformer.DepthPageTransformer;

public class MainActivity extends AppCompatActivity {

    private ViewPager2 viewPager2Employee;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        this.viewPager2Employee = findViewById(R.id.viewPager2_employee);

        // Employee FragmentStateAdapter.
        EmployeeFragmentStateAdapter adapter = new EmployeeFragmentStateAdapter(this);
        this.viewPager2Employee.setAdapter(adapter);

        // PageTransformer
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) { // Api 21+.
           this.viewPager2Employee.setPageTransformer(new DepthPageTransformer());
        }
    }

}

Android Programming Tutorials

Flutter Programming Tutorials

Android ViewPager2 Tutorial with Examples

1. Android ViewPager2 vs ViewPager

2. Example: ViewPager2

3. Example: Transformation

Android Programming Tutorials

Android Programming Tutorials

Newest Articles
