Spring Boot, Apache Tiles, JSP Tutorial with Examples

What is Apache Tiles?
Objective of Example
Create a Spring Boot project
Configure pom.xml
Configure Tiles View Resolver
Tiles Definitions & Layout
JSP Fragments
Controller

1. What is Apache Tiles?

The Apache Titles is taken idea from putting tiles together to form a roof.

Your web page is regarded as a roof. It is reassembled from tiles. A tile herein is a jsp file (In this situation, it is also called a fragment). The Apache Titles helps you to define a template to reassemble compenents to form a complete page.

The Apache Tiles is based on an Composite model. It is built to simplify development for user interface. Let's imagine that your web application contains many pages, but in fact they have same structure. The simplest is a classic structure consisting of the 4 parts: Header, Footer, Menu, Body. Instead of designing a page in a block, let's design it in many components and put them together.

2. Objective of Example

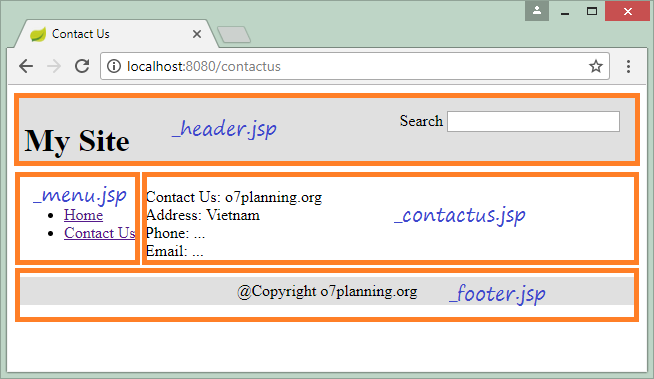

In this post, I am going to show you how to create a Spring Boot application, design interface components using JSP, and use the Apache Tiles to put the interface components together to form a complete site.

3. Create a Spring Boot project

Enter:

Name: SpringBootJspTiles
Group: org.o7planning
Artifact: SpringBootJspTiles
Description: Spring Boot + Apache Tiles + JSP
Package: org.o7planning.sbtiles

SpringBootJspTilesApplication.java

package org.o7planning.sbtiles;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootJspTilesApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootJspTilesApplication.class, args);
    }

}

4. Configure pom.xml

Declare the library necessary for the JSP/Servlet and the Apache Tiles in the pom.xml file.

JSP/Servlet + Tiles

<dependency>
    <groupId>org.apache.tomcat.embed</groupId>
    <artifactId>tomcat-embed-jasper</artifactId>
</dependency>

<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>jstl</artifactId>
</dependency>

<!-- Tiles API -->
<!-- http://mvnrepository.com/artifact/org.apache.tiles/tiles-api -->
<dependency>
    <groupId>org.apache.tiles</groupId>
    <artifactId>tiles-api</artifactId>
    <version>3.0.8</version>
</dependency>


<!-- Tiles Core -->
<!-- http://mvnrepository.com/artifact/org.apache.tiles/tiles-core -->
<dependency>
    <groupId>org.apache.tiles</groupId>
    <artifactId>tiles-core</artifactId>
    <version>3.0.8</version>
</dependency>

<!-- Tiles Servlet -->
<!-- http://mvnrepository.com/artifact/org.apache.tiles/tiles-servlet -->
<dependency>
    <groupId>org.apache.tiles</groupId>
    <artifactId>tiles-servlet</artifactId>
    <version>3.0.8</version>
</dependency>

<!-- Tiles JSP -->
<!-- http://mvnrepository.com/artifact/org.apache.tiles/tiles-jsp -->
<dependency>
    <groupId>org.apache.tiles</groupId>
    <artifactId>tiles-jsp</artifactId>
    <version>3.0.8</version>
</dependency>

<!-- https://mvnrepository.com/artifact/org.apache.tiles/tiles-request-api -->
<dependency>
    <groupId>org.apache.tiles</groupId>
    <artifactId>tiles-request-api</artifactId>
    <version>1.0.6</version>
</dependency>

The full content of the pom.xml file:

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
       http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>

    <groupId>org.o7planning</groupId>
    <artifactId>SpringBootJspTiles</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>SpringBootJspTiles</name>
    <description>Spring Boot + JSP + Apache Tiles</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.0.RELEASE</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>



    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>


        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>

        <!-- Tiles API -->
        <!-- http://mvnrepository.com/artifact/org.apache.tiles/tiles-api -->
        <dependency>
            <groupId>org.apache.tiles</groupId>
            <artifactId>tiles-api</artifactId>
            <version>3.0.8</version>
        </dependency>


        <!-- Tiles Core -->
        <!-- http://mvnrepository.com/artifact/org.apache.tiles/tiles-core -->
        <dependency>
            <groupId>org.apache.tiles</groupId>
            <artifactId>tiles-core</artifactId>
            <version>3.0.8</version>
        </dependency>

        <!-- Tiles Servlet -->
        <!-- http://mvnrepository.com/artifact/org.apache.tiles/tiles-servlet -->
        <dependency>
            <groupId>org.apache.tiles</groupId>
            <artifactId>tiles-servlet</artifactId>
            <version>3.0.8</version>
        </dependency>

        <!-- Tiles JSP -->
        <!-- http://mvnrepository.com/artifact/org.apache.tiles/tiles-jsp -->
        <dependency>
            <groupId>org.apache.tiles</groupId>
            <artifactId>tiles-jsp</artifactId>
            <version>3.0.8</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.tiles/tiles-request-api -->
        <dependency>
            <groupId>org.apache.tiles</groupId>
            <artifactId>tiles-request-api</artifactId>
            <version>1.0.6</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>

5. Configure Tiles View Resolver

TilesConfig.java

package org.o7planning.sbtiles.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.ViewResolver;
import org.springframework.web.servlet.view.UrlBasedViewResolver;
import org.springframework.web.servlet.view.tiles3.TilesConfigurer;
import org.springframework.web.servlet.view.tiles3.TilesView;

@Configuration
public class TilesConfig {


    @Bean(name = "viewResolver")
    public ViewResolver getViewResolver() {
        UrlBasedViewResolver viewResolver = new UrlBasedViewResolver();

        // TilesView 3
        viewResolver.setViewClass(TilesView.class);

        return viewResolver;
    }

    @Bean(name = "tilesConfigurer")
    public TilesConfigurer getTilesConfigurer() {
        TilesConfigurer tilesConfigurer = new TilesConfigurer();

        // TilesView 3
        tilesConfigurer.setDefinitions("/WEB-INF/tiles.xml");

        return tilesConfigurer;
    }



}

6. Tiles Definitions & Layout

Tiles.xml file is the place where you define pages in your application and declare the components of each page.

tiles.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE tiles-definitions PUBLIC
       "-//Apache Software Foundation//DTD Tiles Configuration 3.0//EN"
       "http://tiles.apache.org/dtds/tiles-config_3_0.dtd">

<tiles-definitions>

    <!-- Base Define -->
    <definition name="base.definition"
        template="/WEB-INF/layouts/classic.jsp">
        <put-attribute name="title" value="" />
        <put-attribute name="header" value="/WEB-INF/basefragments/_header.jsp" />
        <put-attribute name="menu" value="/WEB-INF/basefragments/_menu.jsp" />
        <put-attribute name="body" value="" />
        <put-attribute name="footer" value="/WEB-INF/basefragments/_footer.jsp" />
    </definition>

    <!-- Home Page  -->
    <definition name="homePage" extends="base.definition">
        <put-attribute name="title" value="Home Page" />
        <put-attribute name="body" value="/WEB-INF/bodyfragments/_home.jsp" />
    </definition>

    <!-- ContactUs Page -->
    <definition name="contactusPage" extends="base.definition">
        <put-attribute name="title" value="Contact Us" />
        <put-attribute name="body" value="/WEB-INF/bodyfragments/_contactus.jsp" />
    </definition>


</tiles-definitions>

Classic.jsp file is used to position the components to be displayed on the interface, for example, the following illustration below:

classic.jsp

<%@ taglib uri="http://tiles.apache.org/tags-tiles" prefix="tiles"%>
<html>
<head>
<title><tiles:getAsString name="title" /></title>
</head>

<body>
    <table width="100%">
        <tr>
            <td colspan="2">
                <tiles:insertAttribute name="header" />
            </td>
        </tr>
        <tr>
            <td width="20%" nowrap="nowrap">
                 <tiles:insertAttribute name="menu" />
             </td>
            <td width="80%">
                 <tiles:insertAttribute name="body" />
             </td>
        </tr>
        <tr>
            <td colspan="2">
                 <tiles:insertAttribute name="footer" />
            </td>
        </tr>
    </table>
</body>
</html>

7. JSP Fragments

/WEB-INF/basefragments/_menu.jsp

<div style="padding: 5px;">

    <ul>

        <li><a href="${pageContext.request.contextPath}/">Home</a></li>
        <li><a href="${pageContext.request.contextPath}/contactus">Contact Us</a></li>

    </ul>

</div>

/WEB-INF/basefragments/_header.jsp

<div style="background: #E0E0E0; height: 55px; padding: 5px;">
   <div style="float: left">
      <h1>My Site</h1>
   </div>

   <div style="float: right; padding: 10px; text-align: right;">

      Search <input name="search">

   </div>

</div>

/WEB-INF/basefragments/_footer.jsp

<div
   style="background: #E0E0E0; text-align: center; padding: 5px; margin-top: 10px;">

   @Copyright o7planning.org

</div>

/WEB-INF/bodyfragments/_home.jsp

<h2>Hi All</h2>

This is Home Page

/WEB-INF/bodyfragments/_contactus.jsp

Contact Us: o7planning.org
<br>
Address: ${address}
<br>
Phone: ${phone}
<br>
Email: ${email}

8. Controller

MainController.java

package org.o7planning.sbtiles.controller;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class MainController {

    @RequestMapping(value = { "/", "/home" }, method = RequestMethod.GET)
    public String homePage(Model model) {
        return "homePage";
    }


    @RequestMapping(value = { "/contactus" }, method = RequestMethod.GET)
    public String contactusPage(Model model) {
        model.addAttribute("address", "Vietnam");
        model.addAttribute("phone", "...");
        model.addAttribute("email", "...");
        return "contactusPage";
    }

}
