JavaFX TitledPane Tutorial with Examples

  1. JavaFX TitledPane
  2. TitledPane Example

1. JavaFX TitledPane

The TitledPane is a panel with title and this panel can be expaned or collapsed.
Constructor:
// Creates a new TitledPane with no title or content.
TitledPane()

// Creates a new TitledPane with a title and content.
TitledPane(String title, Node content)
Method:
public void setTitle(String title)
public void setContent(Node value)
public void setCollapsible(boolean value)
public boolean isCollapsible()
public void setAnimated(boolean value)
public void setExpanded(boolean value)
public boolean isExpanded()

.....

2. TitledPane Example

TitledPaneDemo.java
package org.o7planning.javafx.titledpane;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.TitledPane;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;

public class TitledPaneDemo extends Application {

   public static void main(String[] args) {
       Application.launch(args);
   }

   @Override
   public void start(Stage stage) {

       // Create TitledPane.
       TitledPane titledPane = new TitledPane();
       titledPane.setText("Java");

       // Content for TitledPane
       VBox content = new VBox();
       content.getChildren().add(new Label("Java Swing Tutorial"));
       content.getChildren().add(new Label("JavaFx Tutorial"));
       content.getChildren().add(new Label("Java IO Tutorial"));

       titledPane.setContent(content);

        // Set Expaneded.
        titledPane.setExpanded(true);

       //
       VBox root= new VBox();
       root.setPadding(new Insets(5));
       root.getChildren().add(titledPane);

       Scene scene = new Scene(root, 250, 200);

       stage.setTitle("TitledPane (o7planning.org)");
       stage.setScene(scene);
       stage.show();
   }

}

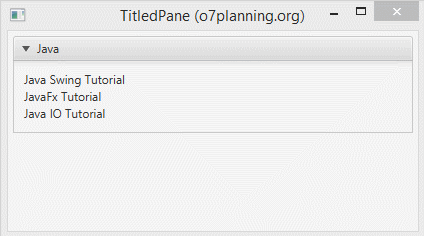

Running the example:
