JavaFX HBox, VBox Layout Tutorial with Examples

  1. HBox Layout
  2. HBox Layout example
  3. VBox Layout
  4. VBox Layout example
  5. Design HBox/VBox'Layout with Scene Builder

1. HBox Layout

HBox is a container, which arranges subcomponents on the single row.

2. HBox Layout example

HBoxDemo.java
package org.o7planning.javafx.hbox;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.CheckBox;
import javafx.scene.control.RadioButton;
import javafx.scene.control.TextField;
import javafx.scene.layout.HBox;
import javafx.stage.Stage;

public class HBoxDemo extends Application {

    @Override
    public void start(Stage primaryStage) throws Exception {
        HBox root = new HBox();

        root.setSpacing(10);
        root.setPadding(new Insets(15,20, 10,10));

        // Button 1
        Button button1= new Button("Button1");
        root.getChildren().add(button1);


        // Button 2
        Button button2 = new Button("Button2");
        button2.setPrefSize(100, 100);
        root.getChildren().add(button2);

        // TextField
        TextField textField = new TextField("Text Field");
        textField.setPrefWidth(110);


        root.getChildren().add(textField);

        // CheckBox
        CheckBox checkBox = new CheckBox("Check Box");

        root.getChildren().add(checkBox);

        // RadioButton
        RadioButton radioButton = new RadioButton("Radio Button");
        root.getChildren().add(radioButton);

        Scene scene = new Scene(root, 550, 250);

        primaryStage.setTitle("HBox Layout Demo");
        primaryStage.setScene(scene);
        primaryStage.show();
    }


    public static void main(String[] args) {
        launch(args);
    }

}

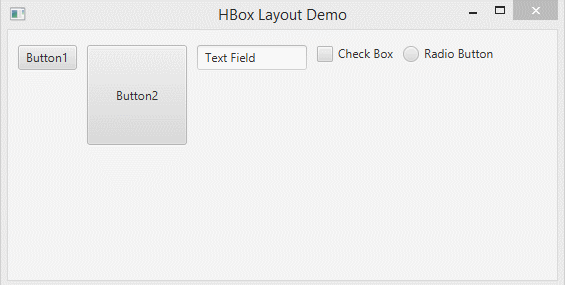

Running the example:

3. VBox Layout

VBox is a container, which arranges subcomponents on the single column.

4. VBox Layout example

VBoxDemo.java
package org.o7planning.javafx.vbox;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.CheckBox;
import javafx.scene.control.RadioButton;
import javafx.scene.control.TextField;
import javafx.scene.layout.HBox;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;

public class VBoxDemo extends Application {

    @Override
    public void start(Stage primaryStage) throws Exception {
        VBox root = new VBox();

        root.setSpacing(10);
        root.setPadding(new Insets(15,20, 10,10));

        // Button 1
        Button button1= new Button("Button1");
        root.getChildren().add(button1);


        // Button 2
        Button button2 = new Button("Button2");
        button2.setPrefSize(100, 100);
        root.getChildren().add(button2);

        // TextField
        TextField textField = new TextField("Text Field");
        textField.setPrefWidth(110);


        root.getChildren().add(textField);

        // CheckBox
        CheckBox checkBox = new CheckBox("Check Box");

        root.getChildren().add(checkBox);

        // RadioButton
        RadioButton radioButton = new RadioButton("Radio Button");
        root.getChildren().add(radioButton);

        Scene scene = new Scene(root, 550, 250);

        primaryStage.setTitle("VBox Layout Demo");
        primaryStage.setScene(scene);
        primaryStage.show();
    }


    public static void main(String[] args) {
        launch(args);
    }

}
Running the example:

5. Design HBox/VBox'Layout with Scene Builder

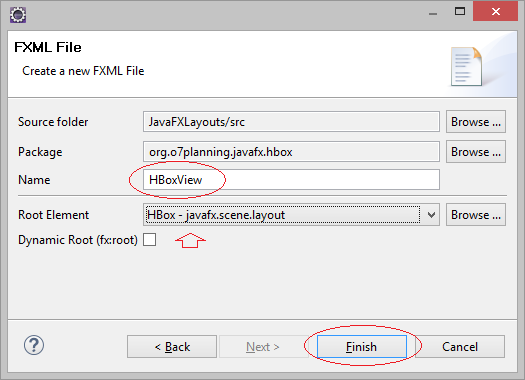

  • File/New/Other..

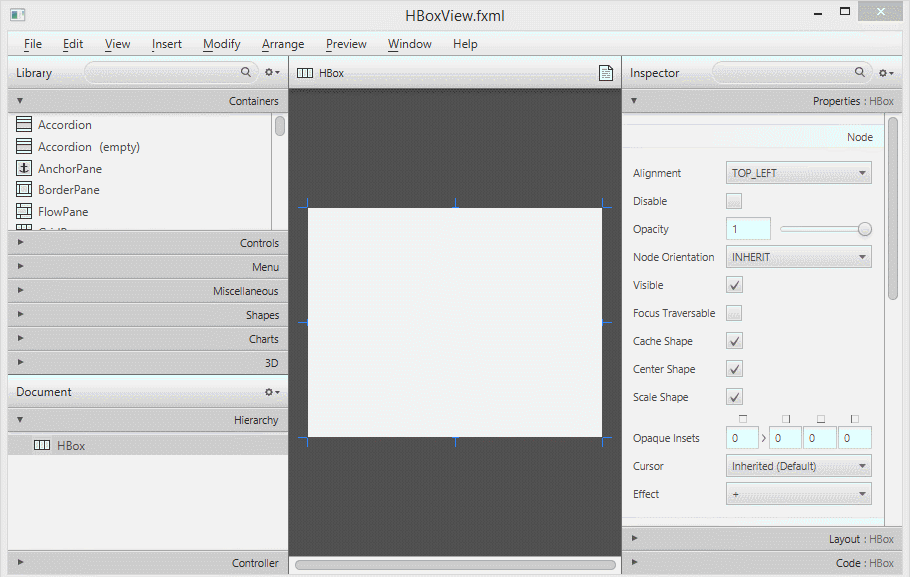

Open HBoxView.fxml with Scene Builder:
Add components to HBox.

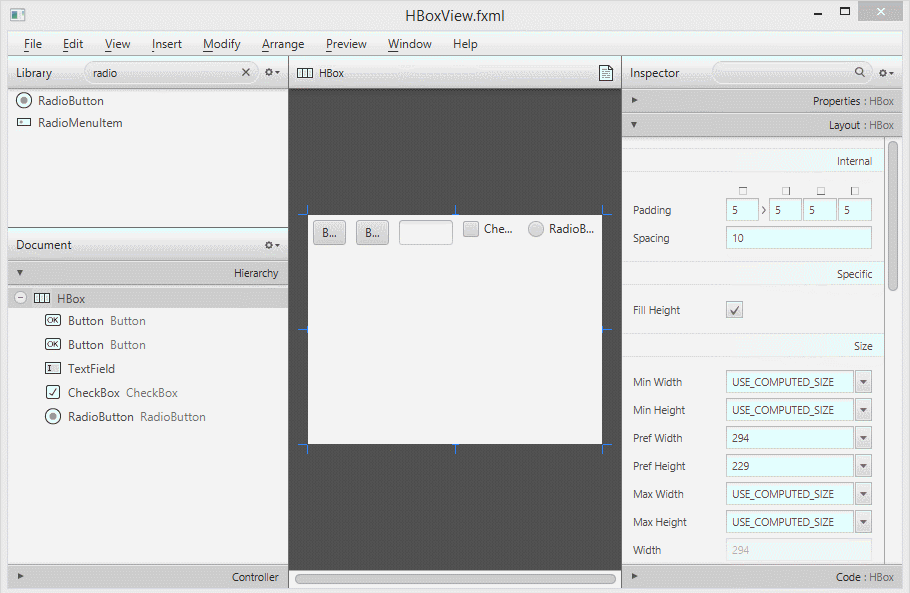

padding & spacing:

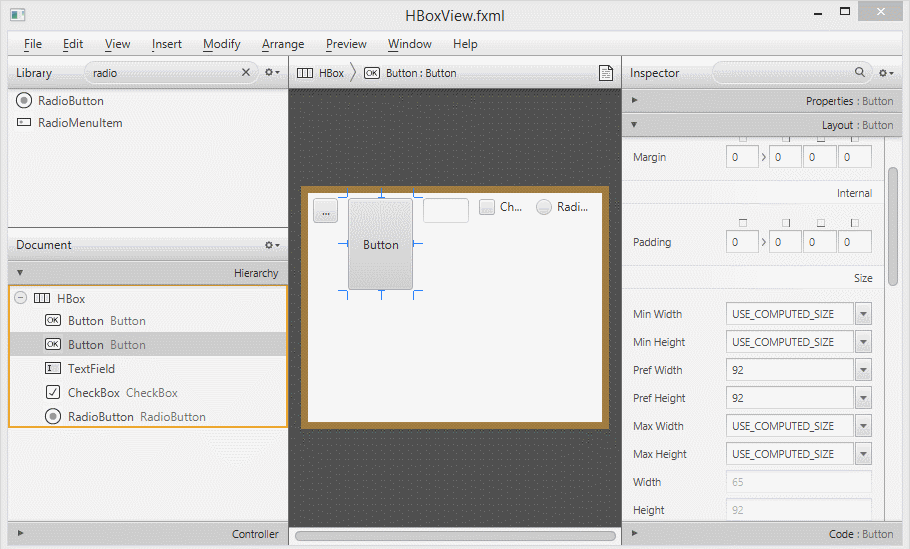

Set preferred size for the children:
Alignment:
