JavaFX Tooltip Tutorial with Examples

JavaFX Tooltip
Tooltip Example
Displaying HTML content in the tooltip
Displaying Graphics content in the tooltip

1. JavaFX Tooltip

JavaFX Tooltip is the UI component used to display additional information for other component when you move the mouse over the surface of the component.

TextField field_userName= new TextField();

Tooltip tooltip_userName=new Tooltip("Enter user name");

// Set tooltip
field_userName.setTooltip(tooltip_userName);

// Or using Tooltip.install
Tooltip.install(field_userName, tooltip_userName);

// Uninstall tooltip
Tooltip.uninstall(field_userName, tooltip_userName);

2. Tooltip Example

TooltipDemo.java

package org.o7planning.javafx.tooltip;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.PasswordField;
import javafx.scene.control.TextField;
import javafx.scene.control.Tooltip;
import javafx.scene.layout.GridPane;
import javafx.stage.PopupWindow.AnchorLocation;
import javafx.stage.Stage;

public class TooltipDemo  extends Application {

   @Override
   public void start(Stage stage) {

       GridPane root= new GridPane();
       root.setHgap(5);
       root.setVgap(5);
       root.setPadding(new Insets(5));

       // User Name
       root.add(new Label("User Name"), 0, 0);
       TextField field_userName= new TextField();
       root.add(field_userName, 1, 0);

       Tooltip tooltip_userName=new Tooltip("Enter user name");
       field_userName.setTooltip(tooltip_userName);


       // Password
       root.add(new Label("Password"), 0, 1);
       PasswordField field_password= new PasswordField();

       Tooltip tooltip_password=new Tooltip("Enter Password");
       field_password.setTooltip(tooltip_password);

       root.add(field_password, 1, 1);


       // Create a Button
       Button button_login = new Button("Submit");
       Tooltip tooltip_login =new Tooltip("Login to Application");

       // Set Location to display tooltip.
       tooltip_login.setAnchorLocation(AnchorLocation.WINDOW_BOTTOM_LEFT);
       button_login.setTooltip(tooltip_login);


       root.add(button_login, 1, 2);



       Scene scene = new Scene(root, 350, 200);

       stage.setTitle("Tooltip Demo (o7planning.org)");
       stage.setScene(scene);
       stage.show();
   }

   public static void main(String[] args) {
       Application.launch(args);
   }

}

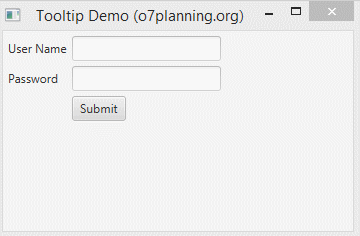

Running the example:

3. Displaying HTML content in the tooltip

TooltipHtmlDemo.java

package org.o7planning.javafx.tooltip;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.ContentDisplay;
import javafx.scene.control.Tooltip;
import javafx.scene.layout.FlowPane;
import javafx.scene.web.WebEngine;
import javafx.scene.web.WebView;
import javafx.stage.Stage;


public class TooltipHtmlDemo extends Application {

   @Override
   public void start(Stage stage) {

       FlowPane root = new FlowPane();
       root.setHgap(5);
       root.setVgap(5);
       root.setPadding(new Insets(25));

       // Create a Button
       Button button = new Button("Button");

       // A browser.
       WebView  webView = new WebView();
       WebEngine webEngine = webView.getEngine();
       webEngine.loadContent
       (
            "<h3>Note:</h3> This is a Button"
       );

       Tooltip  tooltip = new Tooltip();
       tooltip.setPrefSize(200, 100);
       tooltip.setContentDisplay(ContentDisplay.GRAPHIC_ONLY);

       // Set tooltip content
       tooltip.setGraphic(webView);

       // Install tooltip for button (same as button.setTooltip)
       Tooltip.install(button, tooltip);

       root.getChildren().add(button);

       Scene scene = new Scene(root, 350, 200);

       stage.setTitle("Tooltip Html Demo (o7planning.org)");
       stage.setScene(scene);
       stage.show();
   }

   public static void main(String[] args) {
       Application.launch(args);
   }

}

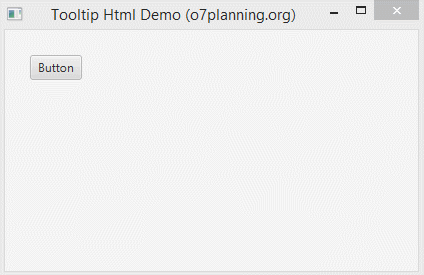

Running the example:

4. Displaying Graphics content in the tooltip

Tooltip allows to display Graphics on its contents via tooltip.setGraphic() method.

// tooltip.setGraphic(Node):

tooltip.setGraphic(new Button("This is a button in tooltip"));

Example:

TooltipGraphicDemo.java

package org.o7planning.javafx.tooltip;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.ContentDisplay;
import javafx.scene.control.Tooltip;
import javafx.scene.layout.FlowPane;
import javafx.stage.Stage;

public class TooltipGraphicDemo extends Application {

    @Override
    public void start(Stage stage) {

        FlowPane root = new FlowPane();
        root.setHgap(5);
        root.setVgap(5);
        root.setPadding(new Insets(25));

        // Create a Button
        Button button = new Button("Button");

        Tooltip tooltip = new Tooltip();
        tooltip.setPrefSize(200, 100);
        tooltip.setContentDisplay(ContentDisplay.GRAPHIC_ONLY);

        // Set tooltip content
        tooltip.setGraphic(new Button("Button in a Tooltip"));

        // Install tooltip for button (same as button.setTooltip)
        Tooltip.install(button, tooltip);

        root.getChildren().add(button);

        Scene scene = new Scene(root, 350, 200);

        stage.setTitle("Tooltip Graphic Demo (o7planning.org)");
        stage.setScene(scene);
        stage.show();
    }

    public static void main(String[] args) {
        Application.launch(args);
    }

}

Running the example:
