Customize java compiler processing your Annotation (Annotation Processing Tool)

  1. What is Annotation Processing Tool (APT)
  2. The model of example
  3. Project APTProcessor
  4. Project APTTutorial

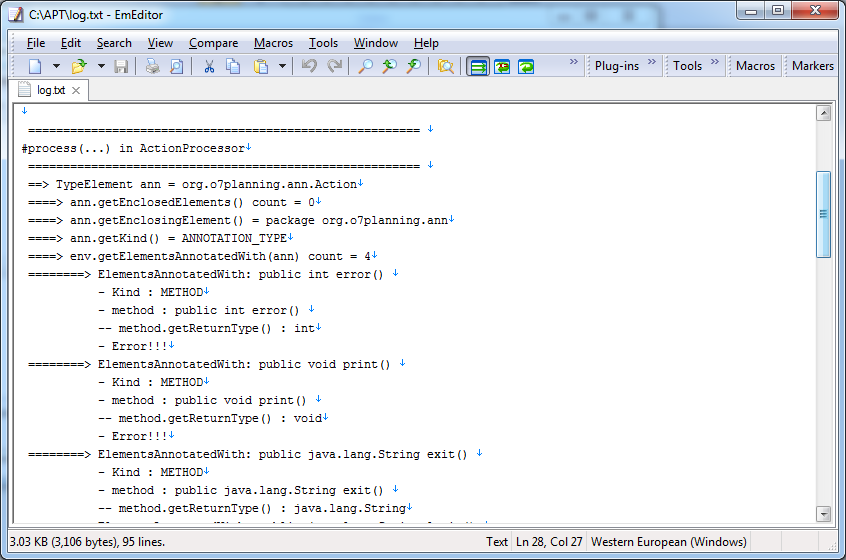

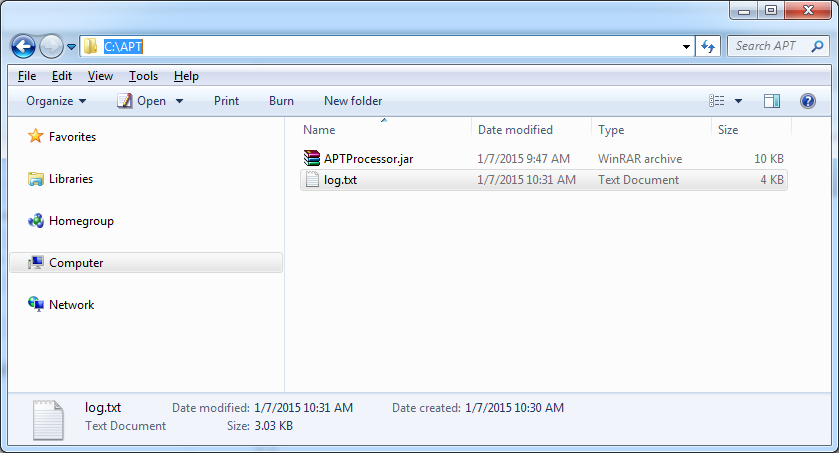

  5. View Log

1. What is Annotation Processing Tool (APT)

The situation is that:

You create your own Annotations and use them in your Java application. You set using rules for these Annotations. You want the Java Compiler to notify the error of applying the rules wrongly, if any, at the compile-time. If you use Eclipse for writing codes, you want Eclipse will notify the using error right on IDE.

This request is feasible to APT (Annotation Processing Tool).
APT Definition:
Java annotation processing tool is a tool you can use to process annotations in the sourcecode. All you need is to implement an annotation processor.
  • For example:
@PublicFinal is your annotation. Your rule is that it only can annotate on the method or field whose modifier is public and final. If you use it wrongly, there will be a notice displayed at the compile-time, and a notice on IDE at once.

2. The model of example

This is the example model I will introduce in this document:
Your Annotation:
  • @PublicFinal is used for method or field whose modifiers are public and final.
  • @Controller only uses for class, and the name of class must have the Controller suffix.
  • @Action only use for method, returning to String.
Processors including PublicFinalProcessor, ControllerProcessor, ActionProcesser are responsible for having notifications if there are errors at the compile-time. It includes the display of notifying errors on IDE Eclipse,too.

3. Project APTProcessor

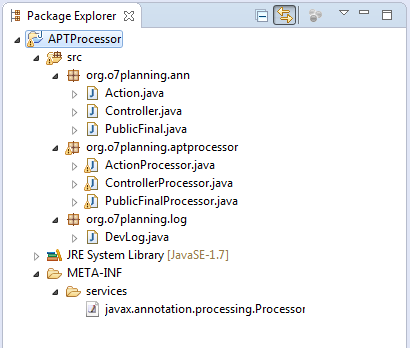

First, create a Project.
  • APTProcessor
Action.java
package org.o7planning.ann;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Target(ElementType.METHOD)
@Retention(RetentionPolicy.SOURCE)
public @interface Action {

}
Controller.java
package org.o7planning.ann;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.SOURCE)
public @interface Controller {

}
PublicFinal.java
package org.o7planning.ann;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
@Target(ElementType.FIELD)
@Retention(RetentionPolicy.SOURCE)
public @interface PublicFinal {
}
AcctionProccessor.java
package org.o7planning.aptprocessor;

import java.util.List;
import java.util.Set;
import javax.annotation.processing.AbstractProcessor;
import javax.annotation.processing.Filer;
import javax.annotation.processing.Messager;
import javax.annotation.processing.ProcessingEnvironment;
import javax.annotation.processing.RoundEnvironment;
import javax.annotation.processing.SupportedAnnotationTypes;
import javax.annotation.processing.SupportedSourceVersion;
import javax.lang.model.SourceVersion;
import javax.lang.model.element.Element;
import javax.lang.model.element.ElementKind;
import javax.lang.model.element.ExecutableElement;
import javax.lang.model.element.TypeElement;
import javax.lang.model.type.TypeMirror;
import javax.tools.Diagnostic.Kind;
import org.o7planning.log.DevLog;

// Work with @Action
@SupportedAnnotationTypes({ "org.o7planning.ann.Action" })
@SupportedSourceVersion(SourceVersion.RELEASE_6)
public class ActionProcessor extends AbstractProcessor {
  private Filer filer;
  private Messager messager;
  @Override
  public void init(ProcessingEnvironment env) {
      filer = env.getFiler();
      messager = env.getMessager();
  }
  @Override
  public boolean process(Set<? extends TypeElement> annotations,
          RoundEnvironment env) {
      DevLog.log("\n\n");
      DevLog.log(" ======================================================== ");
      DevLog.log("#process(...) in " + this.getClass().getSimpleName());
      DevLog.log(" ======================================================== ");

      for (TypeElement ann : annotations) {
          DevLog.log(" ==> TypeElement ann = " + ann);
          List<? extends Element> es = ann.getEnclosedElements();
          DevLog.log(" ====> ann.getEnclosedElements() count = " + es.size());
          for (Element e : es) {
              DevLog.log(" ========> EnclosedElement: " + e);
          }
          Element enclosingElement = ann.getEnclosingElement();
          DevLog.log(" ====> ann.getEnclosingElement() = " + enclosingElement);
          ElementKind kind = ann.getKind();
          DevLog.log(" ====> ann.getKind() = " + kind);
          Set<? extends Element> e2s = env.getElementsAnnotatedWith(ann);

          DevLog.log(" ====> env.getElementsAnnotatedWith(ann) count = "
                  + e2s.size());
          for (Element e2 : e2s) {
              DevLog.log(" ========> ElementsAnnotatedWith: " + e2);
              DevLog.log("           - Kind : " + e2.getKind());
              // @Action use for method only
              // notify if misuse
              if (e2.getKind() != ElementKind.METHOD) {
                  DevLog.log("           - Error!!!");
                  messager.printMessage(Kind.ERROR, "@Action using for method only ", e2);
              } else {
                  // The name of the method is annotated by @Action
                  String methodName = e2.getSimpleName().toString();
                  // (ExecutableElement described for method, constructor,...)
                  ExecutableElement method = (ExecutableElement) e2;

                  DevLog.log("           - method : " + method);
                  TypeMirror retType = method.getReturnType();
                  DevLog.log("           -- method.getReturnType() : " + retType);
                  // @Action Only used for method returns the String
                  // Notify if misuse
                  if (!String.class.getName().equals(retType.toString())) {
                      DevLog.log("           - Error!!!");
                      messager.printMessage(Kind.ERROR,
                              "Method using @Action must return String", e2);
                  }
              }
          }
      }
      return true;
  }
}
ControllProcessor.java
package org.o7planning.aptprocessor;

import java.util.List;
import java.util.Set;
import javax.annotation.processing.AbstractProcessor;
import javax.annotation.processing.Filer;
import javax.annotation.processing.Messager;
import javax.annotation.processing.ProcessingEnvironment;
import javax.annotation.processing.RoundEnvironment;
import javax.annotation.processing.SupportedAnnotationTypes;
import javax.annotation.processing.SupportedSourceVersion;
import javax.lang.model.SourceVersion;
import javax.lang.model.element.Element;
import javax.lang.model.element.ElementKind;
import javax.lang.model.element.TypeElement;
import javax.tools.Diagnostic.Kind;
import org.o7planning.log.DevLog;

// Apply for @Controller
@SupportedAnnotationTypes({ "org.o7planning.ann.Controller" })
@SupportedSourceVersion(SourceVersion.RELEASE_6)
public class ControllerProcessor extends AbstractProcessor {
  private Filer filer;
  private Messager messager;
  @Override
  public void init(ProcessingEnvironment env) {
      filer = env.getFiler();
      messager = env.getMessager();
  }
  @Override
  public boolean process(Set<? extends TypeElement> annotations,
          RoundEnvironment env) {
      DevLog.log("\n\n");
      DevLog.log(" ======================================================== ");
      DevLog.log("#process(...) in " + this.getClass().getSimpleName());
      DevLog.log(" ======================================================== ");

      for (TypeElement ann : annotations) {
          DevLog.log(" ==> TypeElement ann = " + ann);
          //
          List<? extends Element> es = ann.getEnclosedElements();
          DevLog.log(" ====> ann.getEnclosedElements() count = " + es.size());
          for (Element e : es) {
              DevLog.log(" ========> EnclosedElement: " + e);
          }
          Element enclosingElement = ann.getEnclosingElement();
          DevLog.log(" ====> ann.getEnclosingElement() = " + enclosingElement);
          ElementKind kind = ann.getKind();
          DevLog.log(" ====> ann.getKind() = " + kind);
          Set<? extends Element> e2s = env.getElementsAnnotatedWith(ann);

          DevLog.log(" ====> env.getElementsAnnotatedWith(ann) count = "
                  + e2s.size());
          for (Element e2 : e2s) {
              DevLog.log(" ========> ElementsAnnotatedWith: " + e2);
              DevLog.log("           - Kind : " + e2.getKind());

              // @Controller only use for Class
              // Notify if misuse
              if (e2.getKind() != ElementKind.CLASS) {
                  DevLog.log("           - Error!!!");
                  messager.printMessage(Kind.ERROR,
                          "@Controller using for class only ", e2);
              } else {
                  // The name of the class is annotated by @Controller
                  String className = e2.getSimpleName().toString();
                  // @Controller using for class with suffix Controller
                  // Notify if misuse
                  if (!className.endsWith("Controller")) {
                      DevLog.log("           - Error!!!");
                      messager.printMessage(
                              Kind.ERROR,
                              "Class using @Controller must have suffix Controller", e2);
                  }
              }
          }
      }
      return true;
  }
}
PublicFinalProcessor.java
package org.o7planning.aptprocessor;

import java.util.Set;
import javax.annotation.processing.AbstractProcessor;
import javax.annotation.processing.Filer;
import javax.annotation.processing.Messager;
import javax.annotation.processing.ProcessingEnvironment;
import javax.annotation.processing.RoundEnvironment;
import javax.annotation.processing.SupportedAnnotationTypes;
import javax.annotation.processing.SupportedSourceVersion;
import javax.lang.model.SourceVersion;
import javax.lang.model.element.Element;
import javax.lang.model.element.Modifier;
import javax.lang.model.element.TypeElement;
import javax.tools.Diagnostic.Kind;
import org.o7planning.log.DevLog;
// Apply for @PublicFinal
@SupportedAnnotationTypes(value = { "org.o7planning.ann.PublicFinal" })
@SupportedSourceVersion(SourceVersion.RELEASE_6)
public class PublicFinalProcessor extends AbstractProcessor {
  private Filer filer;
  private Messager messager;
  @Override
  public void init(ProcessingEnvironment env) {
      filer = env.getFiler();
      messager = env.getMessager();
  }
  @Override
  public boolean process(Set<? extends TypeElement> annotations,
          RoundEnvironment env) {
      DevLog.log("\n\n");
      DevLog.log(" ======================================================== ");
      DevLog.log("#process(...) in " + this.getClass().getSimpleName());
      DevLog.log(" ======================================================== ");
      DevLog.log(" annotations count = " + annotations.size());
      for (TypeElement ann : annotations) {
          Set<? extends Element> e2s = env.getElementsAnnotatedWith(ann);
          for (Element e2 : e2s) {
              DevLog.log("- e2 = " + e2);
              Set<Modifier> modifiers = e2.getModifiers();
              // @PublicFinal only using for public & final
              // Notify if misuse
              if (!(modifiers.contains(Modifier.FINAL) && modifiers
                      .contains(Modifier.PUBLIC))) {
                  DevLog.log("- Error!!!");
                  messager.printMessage(Kind.ERROR,
                          "Method/field wasn't public and final", e2);
              }
          }
      }
      // All PublicFinal annotations are handled by this Processor.
      return true;
  }
}
DevLog.java
package org.o7planning.log;

import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
public class DevLog {
public static final String LOG_FILE = "C:/APT/log.txt";
public static void log(Object message) {
     if (message == null) {
         return;
     }
     // Make sure the path exists.
     new File(LOG_FILE).getParentFile().mkdirs();
     //
     FileWriter writer = null;
     try {
         writer = new FileWriter(LOG_FILE, true);
         writer.append(message.toString());
         writer.append("\n");
         writer.close();
     } catch (IOException e) {
         e.printStackTrace();
         try {
             writer.close();
         } catch (IOException e1) {
         }
     }
}
}
Declare Service
Create file javax.annotation.processing.Processor located in folder META-INF/services as shown below:
javax.annotation.processing.Processor
org.o7planning.aptprocessor.PublicFinalProcessor
org.o7planning.aptprocessor.ActionProcessor
org.o7planning.aptprocessor.ControllerProcessor

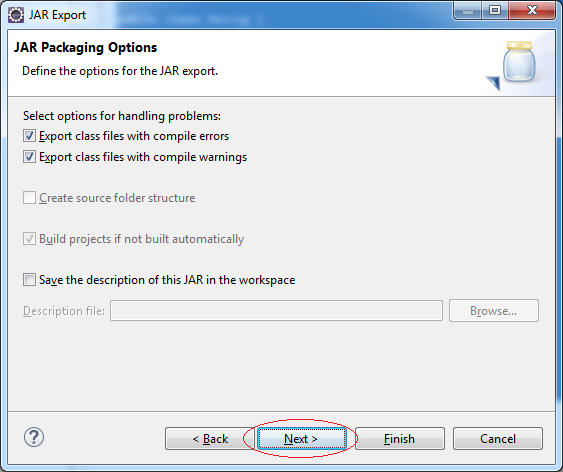

Packing APTProcessor project into jar file:

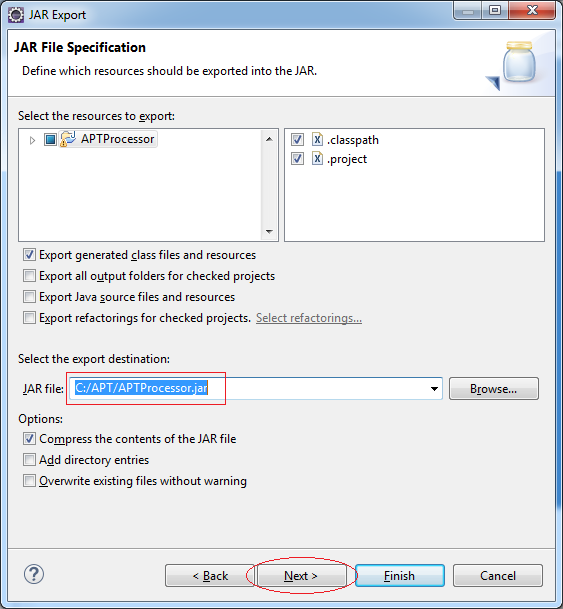

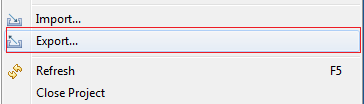

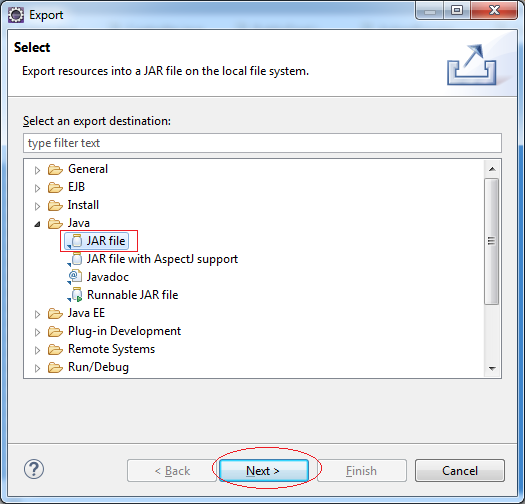

Right-click Project and select Export:

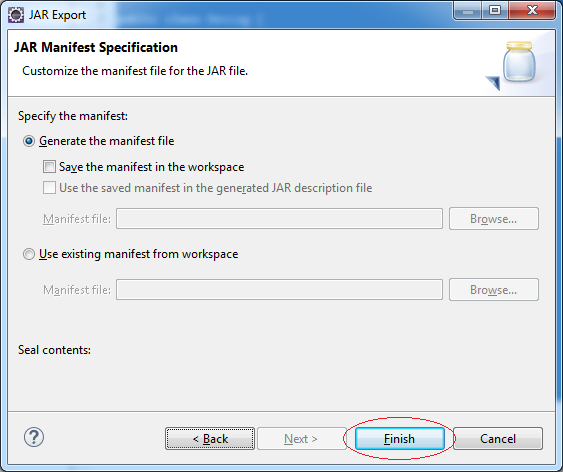

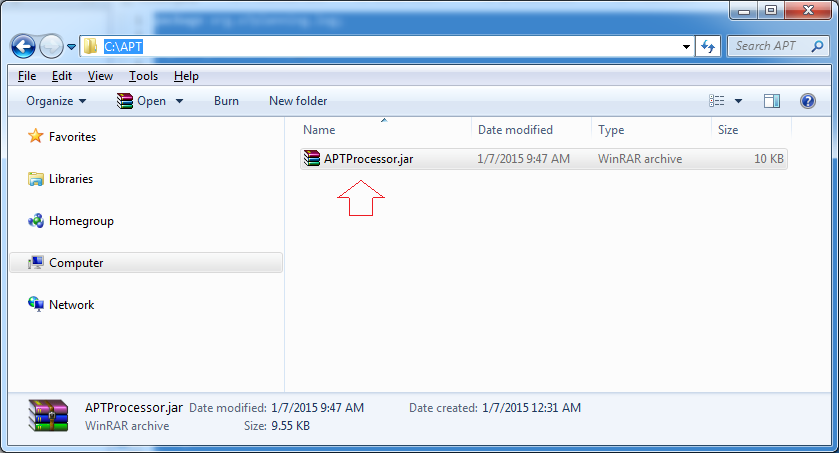

Export success:

4. Project APTTutorial

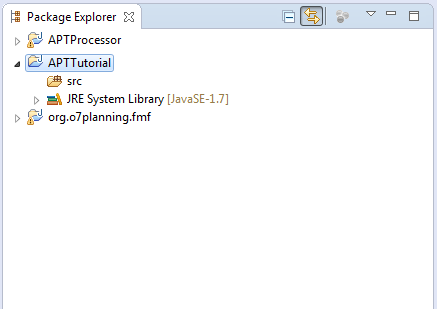

Create Project APTTutorial:
Right-click APTTutorial select property.
Declare use APTProccessor library that you created earlier.

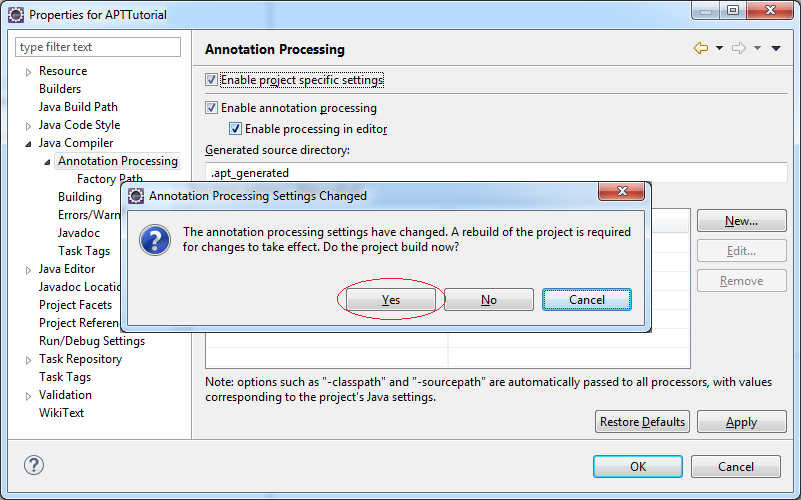

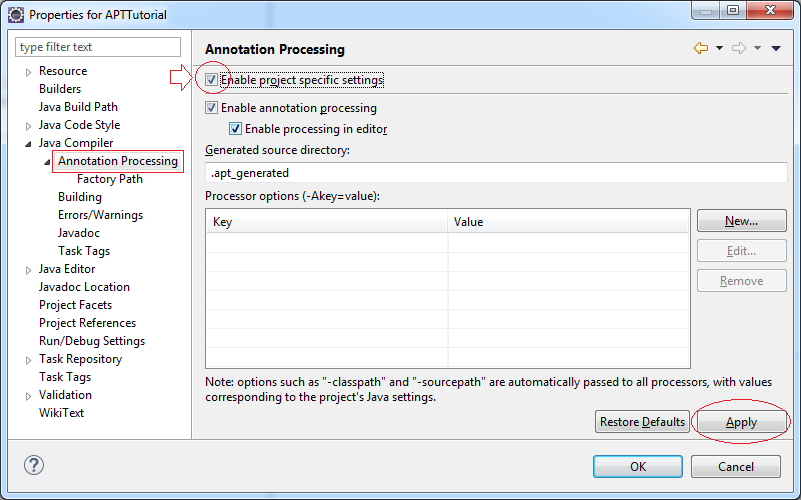

Declare use your Annotation Processor with Compiler.

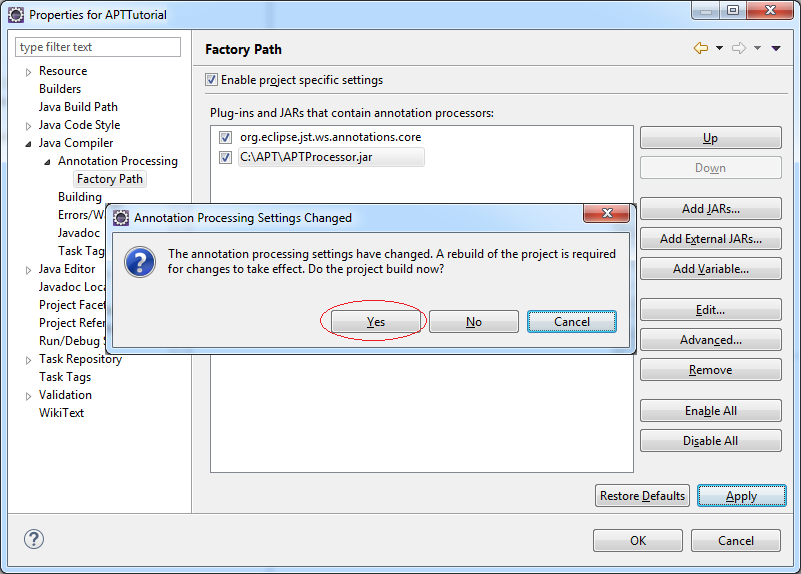

Declaring Processor library location:

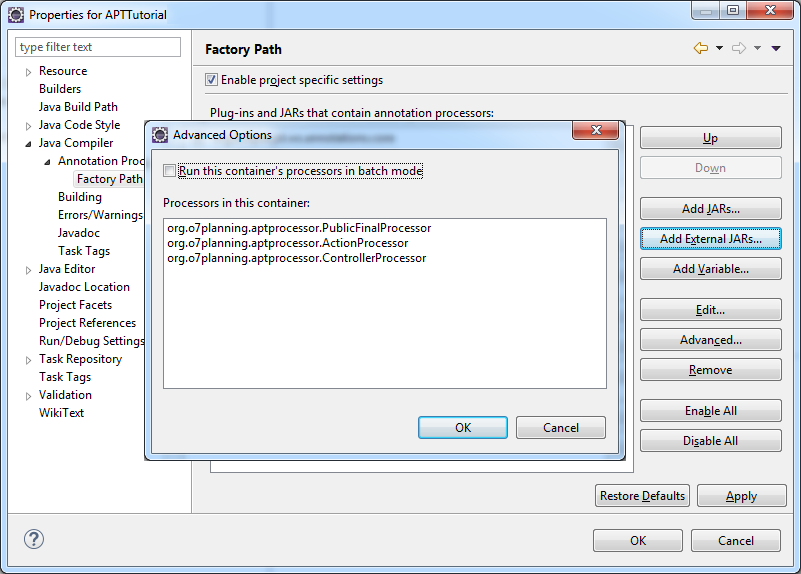

You can click on Advanced... to see Processors registered with Compiler.

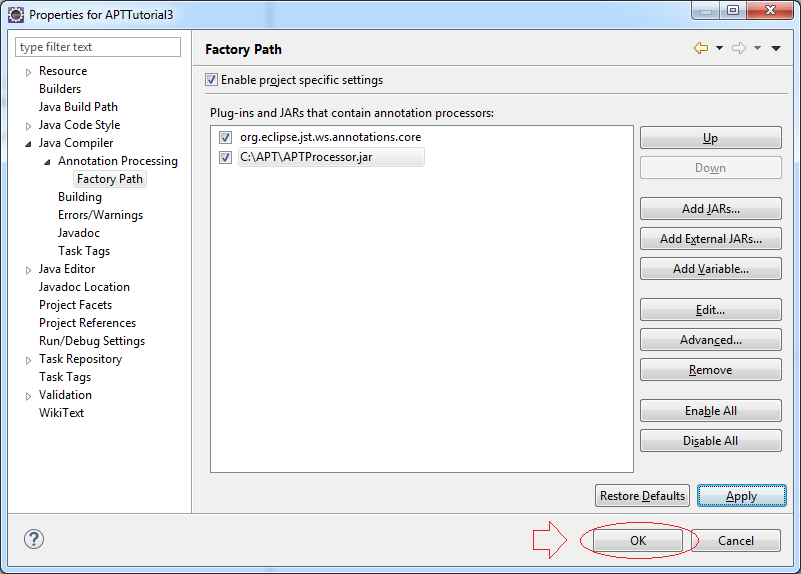

Click OK to complete:

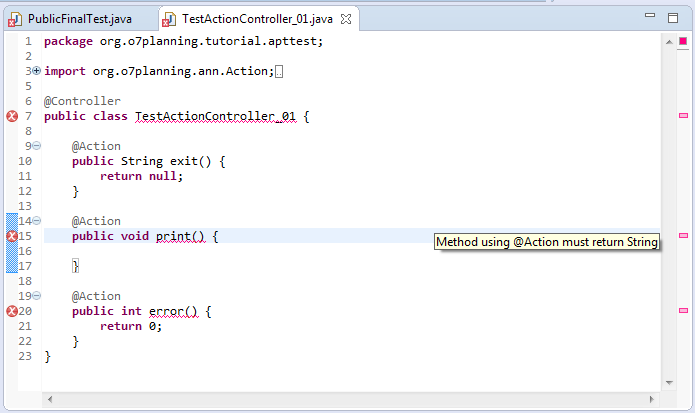

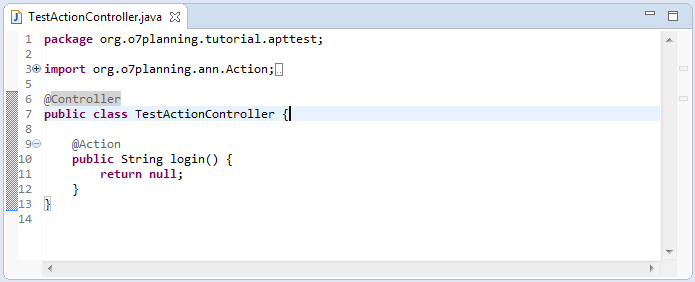

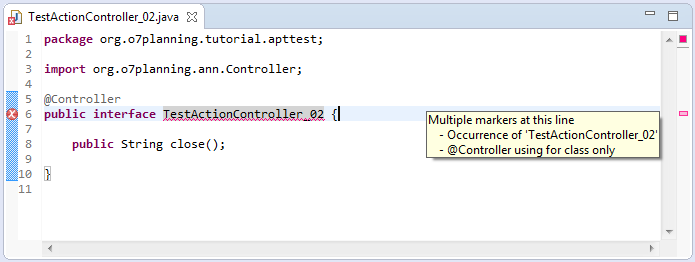

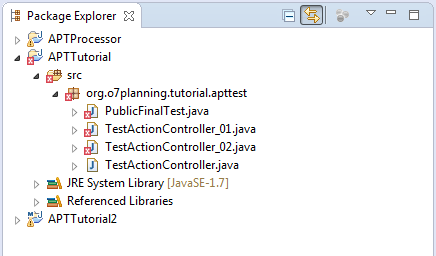

Create a test class using your Annotation and Processor:
PublicFinalTest.java
package org.o7planning.tutorial.apttest;

import org.o7planning.ann.PublicFinal;

public class PublicFinalTest {
  @PublicFinal
  public final static int ABC = 100;
  @PublicFinal
  private static String MODULE_NAME = "APT";
}
The error message seen on the IDE:
TestActionController_01.java
package org.o7planning.tutorial.apttest;

import org.o7planning.ann.Action;
import org.o7planning.ann.Controller;

@Controller
public class TestActionController_01 {
  @Action
  public String exit() {
      return null;
  }
  @Action
  public void print() {
  }
  @Action
  public int error() {
      return 0;
  }
}
TestActionController_02.java
package org.o7planning.tutorial.apttest;

import org.o7planning.ann.Controller;
@Controller
public interface TestActionController_02 {
  public String close();
}
TestActionController.java
package org.o7planning.tutorial.apttest;

import org.o7planning.ann.Action;
import org.o7planning.ann.Controller;

@Controller
public class TestActionController {
  @Action
  public String login() {
      return null;
  }
}

5. View Log

View Log:
  • C:/APT/log.txt
log.txt created by DevLog, using for developer.

Java Basic

Show More

Java Basic

Show More

Newest Articles

Show More
