Java Commons Logging Tutorial with Examples

View more Tutorials:

  1. What is Commons Logging?
  2. The goal of documentation
  3. Commons Logging + Log4J Logger
    1. Library
    2. Create project
    3. A simple example HelloWorld (Log to Console)
    4. For example, more complex (Log out file)
Follow us on our fanpages to receive notifications every time there are new articles. Facebook Twitter

1- What is Commons Logging?

In your Java application, you want to write code to log messages during its working? You can use one of three library Logger follows:
  • Log4J Logger
  • Jdk14 Logger
  • Simple Logger
Commons Logging is a library that allows you to work with one of three libraries above easier. So to write a program log, Stand alone 'Commons Logging' can not be a Logger. A similar way, you work with java.io to process stream,  Commons IO is a library written based on java.io help you more easily handled IO, Common IO irreplaceable java.io.
So you have 3 choices:
What you choose does not matter, Logger are treated the same way with the support of the Commons Logging.

2- The goal of documentation

In this guide I will show you how to work with:
  • Commons Logging + Log4J Logger

3- Commons Logging + Log4J Logger

3.1- Library

Commons Logging Library:
Maven:

<dependency>
    <groupId>commons-logging</groupId>
    <artifactId>commons-logging</artifactId>
    <version>1.1.3</version>
</dependency>
Log4J Logger Library:
Maven:

<dependency>
    <groupId>log4j</groupId>
    <artifactId>log4j</artifactId>
    <version>1.2.17</version>
</dependency>

3.2- Create project

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
   <modelVersion>4.0.0</modelVersion>
   <groupId>org.o7planning</groupId>
   <artifactId>CommonsLoggingTutorial</artifactId>
   <version>0.0.1-SNAPSHOT</version>

   <dependencies>
       <dependency>
           <groupId>commons-logging</groupId>
           <artifactId>commons-logging</artifactId>
           <version>1.1.3</version>
       </dependency>
       <dependency>
           <groupId>log4j</groupId>
           <artifactId>log4j</artifactId>
           <version>1.2.17</version>
       </dependency>
   </dependencies>

</project>

3.3- A simple example HelloWorld (Log to Console)

In this step we will make a simple HelloWorld example, it will write Log to the console.
HelloWorld.java

package org.o7planning.tutorial.commonslogging;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;

public class HelloWorld {

   private static final Log log = LogFactory.getLog(HelloWorld.class);

   public static void main(String[] args) {
       log.debug("Example debug message ..");
       log.info("Example info message ..");
       log.warn("Example warn message ..");
       log.error("Example error message ..");
       log.fatal("Example fatal message ..");
   }
}
commons-logging.properties

org.apache.commons.logging.Log=org.apache.commons.logging.impl.Log4JLogger

log4j.configuration=log4j.properties
log4j.properties

log4j.rootLogger=DEBUG, CA, NTEventLog

#Console Appender
log4j.appender.CA=org.apache.log4j.ConsoleAppender
log4j.appender.CA.layout=org.apache.log4j.PatternLayout
log4j.appender.CA.layout.ConversionPattern=%-4r [%t] %-5p %c %x - %m%n
In fact you can configure Commons Logging to use other Logger libraries, not log4j:

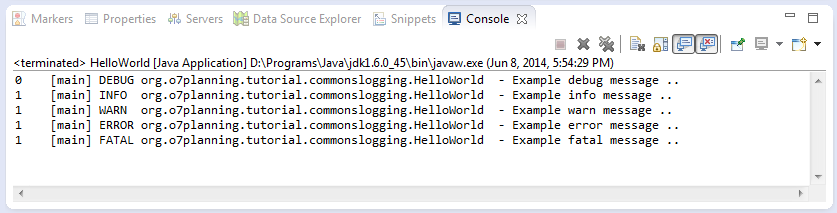

Run class HelloWorld:
With Log4j you can configure in the xml file, and the xml configuration is easy and straightforward than properties file.
Open file commons-logging.properties and change:
commons-logging.properties

org.apache.commons.logging.Log=org.apache.commons.logging.impl.Log4JLogger

log4j.configuration=log4j.xml
log4j.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE log4j:configuration SYSTEM "log4j.dtd">

<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/">

   <appender name="MyConsole" class="org.apache.log4j.ConsoleAppender">
       <param name="Target" value="System.out" />
       <layout class="org.apache.log4j.PatternLayout">
           <param name="ConversionPattern" value="%-4r [%t] %-5p %c %x - %m%n" />
       </layout>
   </appender>



   <root>
       <priority value="debug" />
       <appender-ref ref="MyConsole" />
   </root>

</log4j:configuration>

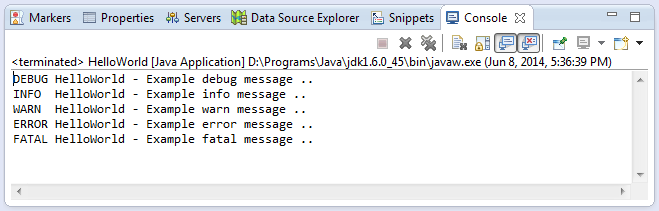

Running class HelloWorld and view Log in Console.

3.4- For example, more complex (Log out file)

Next we will continue with a more complex example, the Log to file.
AdminApplication.java

package org.o7planning.tutorial.commonslogging.admin;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;

public class AdminApplication {

   private static final Log log = LogFactory.getLog(AdminApplication.class);

   public static void main(String[] args) {
       log.debug("Example debug message ..");
       log.info("Example info message ..");
       log.warn("Example warn message ..");
       log.error("Example error message ..");
       log.fatal("Example fatal message ..");

       try {
           raiseException();
       } catch (Exception e) {
           log.fatal("<Some Object>", e);
       }
   }

   private static void raiseException() throws Exception {
       throw new Exception("Test Exception");
   }
}
FrontEndApplication.java

package org.o7planning.tutorial.commonslogging.frontend;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;

public class FrontEndApplication {

   private static final Log log = LogFactory.getLog(FrontEndApplication.class);

   public static void main(String[] args) {
       log.debug("Example debug message ..");
       log.info("Example info message ..");
       log.warn("Example warn message ..");
       log.error("Example error message ..");
       log.fatal("Example fatal message ..");
   }
}
Cấu hình thêm vào trong log4j.xml, thêm vào đoạn cấu hình:

  <appender name="AdminFileAppender" class="org.apache.log4j.FileAppender">
      <param name="File" value="logs/admin.log" />
      <layout class="org.apache.log4j.PatternLayout">
          <param name="ConversionPattern"
              value="%d{dd MMM yyyy HH:mm:ss,SSS} {%t} %-5p %c %x - %m%n" />
      </layout>
  </appender>

  <appender name="FrontEndFileAppender" class="org.apache.log4j.FileAppender">
      <param name="File" value="logs/frontEnd.log" />
      <layout class="org.apache.log4j.PatternLayout">
          <param name="ConversionPattern"
              value="%d{dd MMM yyyy HH:mm:ss,SSS} {%t} %-5p %c %x - %m%n" />
      </layout>
  </appender>

  <!-- logger name must by package name! -->
  <logger name="org.o7planning.tutorial.commonslogging.admin">
      <level value="ERROR" />
      <appender-ref ref="AdminFileAppender" />
  </logger>

  <!-- logger name must by package name! -->
  <logger name="org.o7planning.tutorial.commonslogging.frontend">
      <level value="DEBUG" />
      <appender-ref ref="FrontEndFileAppender" />
  </logger>
log4j.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE log4j:configuration SYSTEM "log4j.dtd">

<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/">

  <appender name="MyConsole" class="org.apache.log4j.ConsoleAppender">
      <param name="Target" value="System.out" />
      <layout class="org.apache.log4j.PatternLayout">
          <param name="ConversionPattern" value="%-4r [%t] %-5p %c %x - %m%n" />
      </layout>
  </appender>




  <appender name="AdminFileAppender" class="org.apache.log4j.FileAppender">
      <param name="File" value="logs/admin.log" />
      <layout class="org.apache.log4j.PatternLayout">
          <param name="ConversionPattern"
              value="%d{dd MMM yyyy HH:mm:ss,SSS} {%t} %-5p %c %x - %m%n" />
      </layout>
  </appender>

  <appender name="FrontEndFileAppender" class="org.apache.log4j.FileAppender">
      <param name="File" value="logs/frontEnd.log" />
      <layout class="org.apache.log4j.PatternLayout">
          <param name="ConversionPattern"
              value="%d{dd MMM yyyy HH:mm:ss,SSS} {%t} %-5p %c %x - %m%n" />
      </layout>
  </appender>

  <!-- logger name must by package name! -->
  <logger name="org.o7planning.tutorial.commonslogging.admin">
      <level value="ERROR" />
      <appender-ref ref="AdminFileAppender" />
  </logger>

  <!-- logger name must by package name! -->
  <logger name="org.o7planning.tutorial.commonslogging.frontend">
      <level value="DEBUG" />
      <appender-ref ref="FrontEndFileAppender" />
  </logger>


  <root>
      <priority value="debug" />
      <appender-ref ref="MyConsole" />
  </root>

</log4j:configuration>
There is a note on the order of tags when you configure log4j.xml:

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE log4j:configuration SYSTEM "log4j.dtd">

<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/">

    <!-- render -->
    <renderer></renderer>
    <renderer></renderer>
    <renderer></renderer>

    <!-- appender -->
    <appender></appender>
    <appender></appender>
    <appender></appender>


    <!-- plugin -->
    <plugin></plugin>
    <plugin></plugin>
    <plugin></plugin>

    <!-- logger -->
    <logger></logger>
    <logger></logger>
    <logger></logger>

    <!-- category -->
    <category></category>
    <category></category>
    <category></category>

    <!-- root -->
    <root></root>
    <root></root>
    <root></root>

    <!-- loggerfactory -->
    <loggerfactory></loggerfactory>
    <loggerfactory></loggerfactory>
    <loggerfactory></loggerfactory>

    <!-- categoryfactory -->
    <categoryfactory></categoryfactory>
    <categoryfactory></categoryfactory>
    <categoryfactory></categoryfactory>

</log4j:configuration>

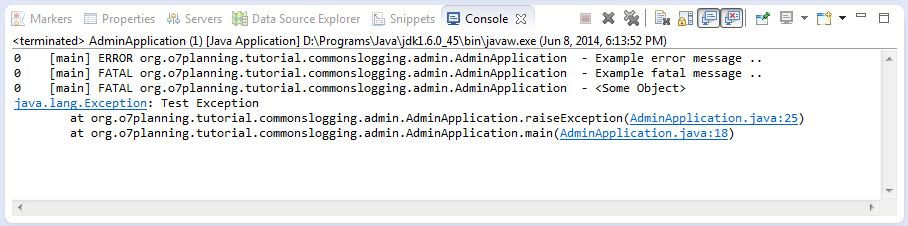

Run class AdminApplication:

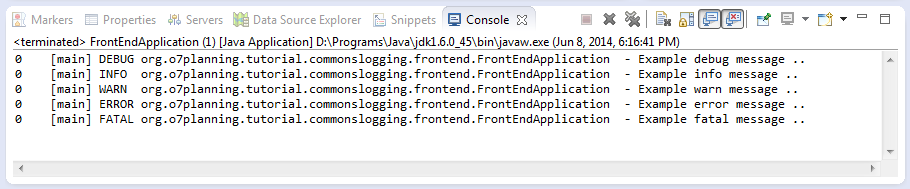

Run class FrontEndApplication
A folder 'logs' has been created and has two log files (admin.log & frontEnd.log)
