Bootstrap Nav Tab/Pill Tutorial with Examples

Bootstrap Nav
Alignment
Responsive Nav
.active & .disable
Nav (Tab)
Nav (Tab) Data-Toggle
Nav (Pill)
Nav (Pill) Data-Toggle

1. Bootstrap Nav

In the Bootstrap, the .nav class is used together with the .nav-item and .nav-link classes to create a simple horizontal Menu.

Bootstrap Nav

<!-- UL/LI -->
<ul class="nav">
   <li class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">Css</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">Bootstrap</a>
   </li>
</ul>

<!-- DIV -->
<div class="nav">
   <div class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </div>
   <div class="nav-item">
      <a class="nav-link" href="#">Css</a>
   </div>
   <div class="nav-item">
      <a class="nav-link" href="#">Bootstrap</a>
   </div>
</div>

See the full example:

nav-example.html

<!DOCTYPE html>
<html>
   <head>
      <meta charset="utf-8">
      <title>Bootstrap Nav</title>
      <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.1.1/css/bootstrap.min.css">
   </head>
   <body>
      <div class="container">
         <h4>Bootstrap Nav</h4>

         <ul class="nav">
            <li class="nav-item">
               <a class="nav-link" href="#">Javascript</a>
            </li>
            <li class="nav-item">
               <a class="nav-link" href="#">Css</a>
            </li>
            <li class="nav-item">
               <a class="nav-link" href="#">Bootstrap</a>
            </li>
         </ul>

      </div>

      <script src="https://code.jquery.com/jquery-3.3.1.slim.min.js"></script>
      <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.14.3/umd/popper.min.js"></script>
      <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.1.1/js/bootstrap.min.js"></script>
   </body>
</html>

2. Alignment

The Bootstrap provides you a few classes to align for the Nav:

Lớp	Description
.justify-content-start	Left justify
.justify-content-center	Center justify
.justify-content-end	Right justify

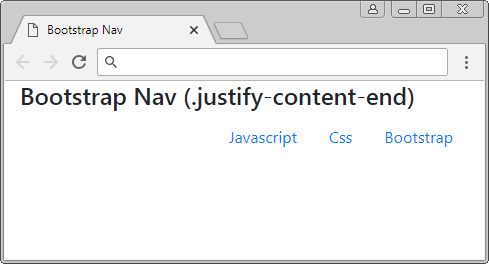

.justify-content-end

<ul class="nav justify-content-end">
   <li class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">Css</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">Bootstrap</a>
   </li>
</ul>

3. Responsive Nav

By default, the Bootstrap Nav is a horizontal Menu. But, you can make it display vertically by using the .flex-column class (This is a utility class used in many different situations).

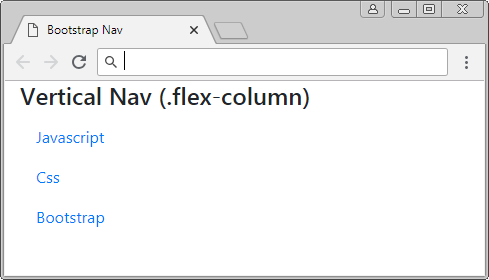

Vertical Nav (.flex-column)

<ul class="nav flex-column">
   <li class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">Css</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">Bootstrap</a>
   </li>
</ul>

If you want to have a horizontal menu, which can turn vertical when the screen width is smaller, you can combine the .flex-column class with one of the following classes:

.flex-sm-row
.flex-md-row
.flex-lg-row
.flex-xl-row

Lớp	Description
.flex-column .flex-sm-row	If the screen width is >= 567px, Nav will be horizontal. Conversely, the Nav will display vertical.
.flex-column .flex-md-row	If the screen width is >= 768px, Nav will be horizontal. Conversely, the Nav will display vertical.
.flex-column .flex-lg-row	If the screen width is >= 992px, Nav will be horizontal. Conversely, the Nav will display vertical.
.flex-column .flex-xl-row	If the screen width is >= 1200px, Nav will be horizontal. Conversely, the Nav will display vertical.

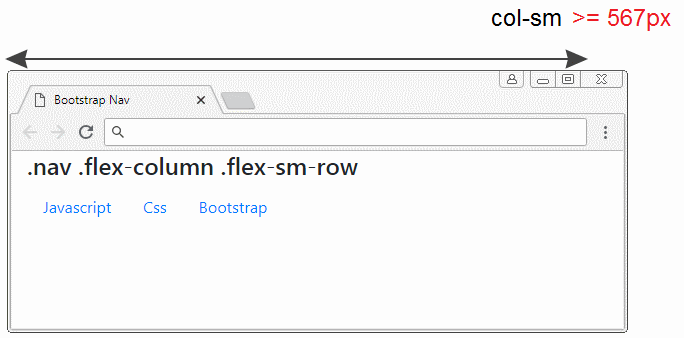

Responsive Nav

<ul class="nav flex-column flex-sm-row">
   <li class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">Css</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">Bootstrap</a>
   </li>
</ul>

4. .active & .disable

The .active class is used when you want to highlight a Link-item, as it is activated (or selected). Apply the .disabled class to the Nav-link class if you want to disable it; users will not be able to interact with this Nav-link.

.active .disabled

<ul class="nav">
   <li class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </li>
   <li class="nav-item">
      <a class="nav-link active" href="#">Bootstrap (Reading)</a>
   </li>
   <li class="nav-item">
      <a class="nav-link disabled" href="#">AngularJS (Comming Soon)</a>
   </li>
</ul>

5. Nav (Tab)

If you want Nav to display as a TAB, please use the .nav-tabs class.

Tab (.nav-tabs)

<ul class="nav nav-tabs">
   <li class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </li>
   <li class="nav-item">
      <a class="nav-link active" href="#">Bootstrap (Reading)</a>
   </li>
   <li class="nav-item">
      <a class="nav-link disabled" href="#">AngularJS (Comming Soon)</a>
   </li>
</ul>

Use the .nav-tabs class in combination with the .nav-fill you will get a Nav (Tab) where Nav-Items will adjust their width to fill the remaining space horizontally.

Tab (.nav-tabs .nav-fill)

<ul class="nav nav-tabs nav-fill">
   <li class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">CSS</a>
   </li>
   <li class="nav-item">
      <a class="nav-link active" href="#">Bootstrap</a>
   </li>
</ul>

6. Nav (Tab) Data-Toggle

A simple Nav (Tab) is actually a static menu. The Nav-Items can not change its state. Users click on the Nav-item to jump to another page. A more complex Nav(Tab) allows displaying the corresponding content that users click on without jumping to another page.

Nav (Tabs) Data-Toggle

<ul class="nav nav-tabs" id="myTab" role="tablist">
   <li class="nav-item">
      <a class="nav-link" id="tab-javascript" data-toggle="tab"
         href="#content-javascript"
         role="tab" aria-controls="content-javascript" aria-selected="false">
      Javascript
      </a>
   </li>
   <li class="nav-item">
      <a class="nav-link" id="tab-css" data-toggle="tab"
         href="#content-css"
         role="tab" aria-controls="content-css" aria-selected="false">
      CSS
      </a>
   </li>
   <li class="nav-item">
      <a class="nav-link active" id="tab-bootstrap" data-toggle="tab"
         href="#content-bootstrap"
         role="tab" aria-controls="content-bootstrap" aria-selected="true">
      Bootstrap
      </a>
   </li>
</ul>

<div class="tab-content" id="myTabContent">
   <div class="tab-pane fade" id="content-javascript"
      role="tabpanel" aria-labelledby="tab-javascript">
      JavaScript is a cross-platform, object-oriented scripting language ...
   </div>
   <div class="tab-pane fade" id="content-css"
      role="tabpanel" aria-labelledby="tab-css">
      CSS stands for Cascading Style Sheets. ...
   </div>
   <div class="tab-pane fade show active" id="content-bootstrap"
      role="tabpanel" aria-labelledby="tab-bootstrap">
      Bootstrap is a free front-end framework for faster and easier web development...
   </div>
</div>

Note: You can remove the role, aria-controls, aria-selected, aria-labelledby attributes out of the above example without causing any problems. These attributes aim at suggesting devices like Screen Reader (Screen reader for the blind).

7. Nav (Pill)

Pill is the same as Tab in activities except for difference in the. Nav-item interface of Nav(Pill) in the active status, which looks like a button. Below is the illustration of the Pill:

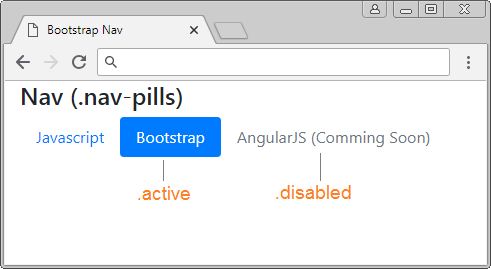

Pill (.nav-pills)

<ul class="nav nav-pills">
   <li class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </li>
   <li class="nav-item">
      <a class="nav-link active" href="#">Bootstrap</a>
   </li>
   <li class="nav-item">
      <a class="nav-link disabled" href="#">AngularJS (Comming Soon)</a>
   </li>
</ul>

Use the .nav-fill class in combination with the .nav-fill , you will get a Nav (Pill) where the Nav-Items will adjust their width to fill the remaining space horizontally.

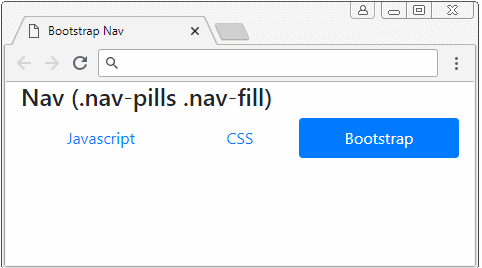

Pill (.nav-pills .nav-fill)

<ul class="nav nav-pills nav-fill">
   <li class="nav-item">
      <a class="nav-link" href="#">Javascript</a>
   </li>
   <li class="nav-item">
      <a class="nav-link" href="#">CSS</a>
   </li>
   <li class="nav-item">
      <a class="nav-link active" href="#">Bootstrap</a>
   </li>
</ul>

8. Nav (Pill) Data-Toggle

Nav (Pill) Data-Toggle

<ul class="nav nav-pills" id="myPill" role="tablist">
   <li class="nav-item">
      <a class="nav-link" id="tab-javascript" data-toggle="tab"
         href="#content-javascript"
         role="tab" aria-controls="content-javascript" aria-selected="false">
      Javascript
      </a>
   </li>
   <li class="nav-item">
      <a class="nav-link" id="tab-css" data-toggle="tab"
         href="#content-css"
         role="tab" aria-controls="content-css" aria-selected="false">
      CSS
      </a>
   </li>
   <li class="nav-item">
      <a class="nav-link active" id="tab-bootstrap" data-toggle="tab"
         href="#content-bootstrap"
         role="tab" aria-controls="content-bootstrap" aria-selected="true">
      Bootstrap
      </a>
   </li>
</ul>

<div class="tab-content" id="myPillContent">
   <div class="tab-pane fade" id="content-javascript"
      role="tabpanel" aria-labelledby="tab-javascript">
      JavaScript is a cross-platform, object-oriented scripting language ...
   </div>
   <div class="tab-pane fade" id="content-css"
      role="tabpanel" aria-labelledby="tab-css">
      CSS stands for Cascading Style Sheets. ...
   </div>
   <div class="tab-pane fade show active" id="content-bootstrap"
      role="tabpanel" aria-labelledby="tab-bootstrap">
      Bootstrap is a free front-end framework for faster and easier web development...
   </div>
</div>
