Bootstrap NavBars Tutorial with Examples

NavBar
Brand/ Logo
Collapsing Navbar
Navbar Left & Right
Dropdown Navbar
Navbar & Form
Fixed NavBar

1. NavBar

Navigation Bar is part of user interface, helping users to be able to jump to different pages of the website.

Bootstrap provides you with relevant Css classes, helping you create a Navigation Bar easily and is compatible with all devices of different screen sizes.

Navbar

To be compatible with the devices with different screen widths. The toolbar of the Bootstrap can be expanded or collapsed depending on the screen size. The simplest behavior is that it changes from a horizontal toolbar to a vertical one when the screen width is small.

Standard toolbars are created with the .navbar and .navbar-expand-xl|lg|md|sm classes to indicate for which screen widths the toolbar will be expanded, on the contrary, it is collapsed.

Keyword	Description	Width
sm	Small	>= 567px
md	Medium	>= 768px
lg	Large	>= 992px
xl	Extra Large	>=1200px

Below is the illustration of structure of a simple Navbar. One ".navbar" can contain one or more ".navbar-nav":

navbar-example1.html

<!DOCTYPE html>
<html>
   <head>
      <meta charset="utf-8">
      <title>Navbar Example</title>
      <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css">
   </head>
   <body>

      <h4>.navbar .navbar-expand-sm</h4>

      <!-- A horizontal navbar that becomes vertical on small screens -->
      <nav class="navbar navbar-expand-sm bg-dark">
         <!-- Links -->
         <ul class="navbar-nav">
            <li class="nav-item">
               <a class="nav-link" href="#">Javascript</a>
            </li>
            <li class="nav-item">
               <a class="nav-link" href="#">Css</a>
            </li>
            <li class="nav-item">
               <a class="nav-link" href="#">Bootstrap</a>
            </li>
         </ul>
      </nav>

      <script src="https://code.jquery.com/jquery-3.2.1.slim.min.js"></script>
      <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.12.9/umd/popper.min.js"></script>
      <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/js/bootstrap.min.js"></script>
   </body>
</html>

If you don't use the .navbar-expand-xl|lg|md|sm class, the toolbar will be always vertical with all screen sizes.

<!-- Vertical with every screen size -->
<nav class="navbar bg-dark">
   <!-- Links -->
   <ul class="navbar-nav">
      <li class="nav-item">
         <a class="nav-link" href="#">Javascript</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Css</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Bootstrap</a>
      </li>
   </ul>
</nav>

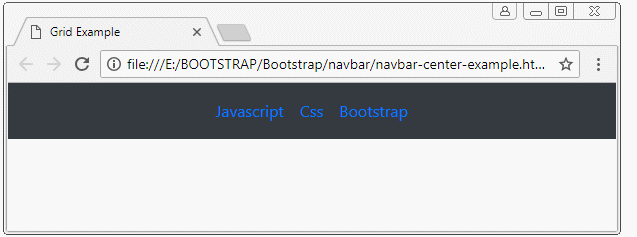

.justify-content-center

The .justify-content-center class helps .navbar-nav be located in the middle of the toolbar.

navbar-center-example.html

<nav class="navbar navbar-expand-sm bg-dark justify-content-center">
   <!-- Links -->
   <ul class="navbar-nav">
      <li class="nav-item">
         <a class="nav-link" href="#">Javascript</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Css</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Bootstrap</a>
      </li>
   </ul>
</nav>

Colored Navbar

Css Class	Description
.navbar-dark	Use this class if you notify to the Bootstrap that your toolbar is using a dark background. The Bootstrap will automatically set the text color of all Nav-items to white.
.navbar-light	Use this class if you notify to the Bootstrap that your toolbar is using a bright background. The Bootstrap will automatically set the text color of all Nav-items to black.

.navbar-light .navbar-dark

<nav class="navbar navbar-expand-sm bg-warning navbar-light">
   <!-- Links -->
   <ul class="navbar-nav">
      <li class="nav-item">
         <a class="nav-link" href="#">Javascript</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Css</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Bootstrap</a>
      </li>
   </ul>
</nav>

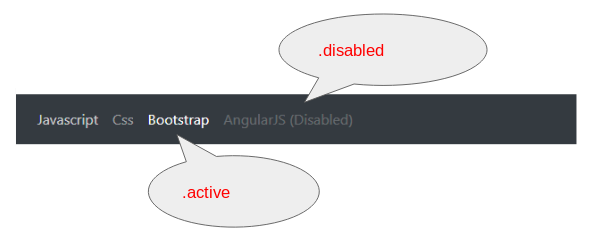

Css Class	Description
.active	Use this class if you want the Bootstrap to highlight a Nav-item like it is selected (or is activated).
.disabled	Use this class if you want the Bootstrap disable a Link. The user will not be able to press this Link.

.active .disabled

<nav class="navbar navbar-expand-sm bg-dark navbar-dark">
   <!-- Links -->
   <ul class="navbar-nav">
      <li class="nav-item">
         <a class="nav-link" href="#">Javascript</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Css</a>
      </li>
      <li class="nav-item active">
         <a class="nav-link" href="#">Bootstrap</a>
      </li>
      <li class="nav-item">
         <a class="nav-link disabled" href="#">AngularJS (Disabled)</a>
      </li>
   </ul>
</nav>

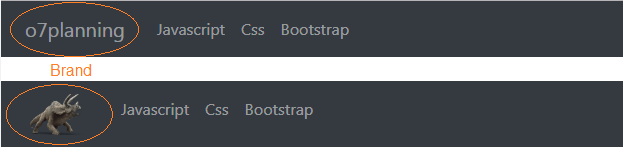

2. Brand/ Logo

One of the indispensable components of a Navbar is a Brand. It is the place where you put a Logo or a name directly related to your website.

Use <a class="navbar-brand"> to create a Brand. You have two ways to position the Brand. It can be a direct child element of ".navbar" or a direct child element of ".nav-item". (Like the following illustration).

.navbar-brand (Text)

<!-- Brand: Direct child of ".navbar" -->
<nav class="navbar navbar-expand-sm bg-dark navbar-dark">
   <a class="navbar-brand" href="#">o7planning</a>

   <ul class="navbar-nav">
      <li class="nav-item">
         <a class="nav-link" href="#">Javascript</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Css</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Bootstrap</a>
      </li>
   </ul>
</nav>

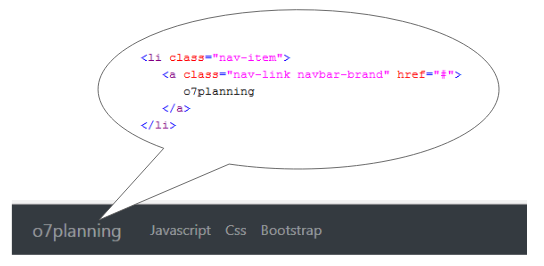

<!-- Brand: Direct Child of ".nav-item" -->
<nav class="navbar navbar-expand-sm bg-dark navbar-dark">
   <ul class="navbar-nav">
      <li class="nav-item">
         <a class="nav-link navbar-brand" href="#">o7planning</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Javascript</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Css</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Bootstrap</a>
      </li>
   </ul>
</nav>

Example of displaying a Logo on Navbar:

.navbar-brand (Logo)

<!-- Brand: Direct Child of ".navbar" -->
<nav class="navbar navbar-expand-sm bg-dark navbar-dark">
   <a class="navbar-brand" href="#">
   <img src="../images/logo.png" style="width:64px;">
   </a>

   <ul class="navbar-nav">
      <li class="nav-item">
         <a class="nav-link" href="#">Javascript</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Css</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Bootstrap</a>
      </li>
   </ul>
</nav>

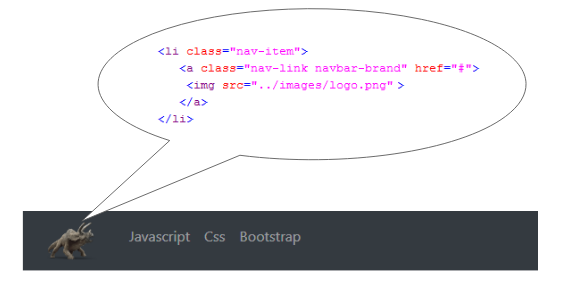

<!-- Brand: Direct Child of ".nav-item" -->
<nav class="navbar navbar-expand-sm bg-dark navbar-dark">
   <ul class="navbar-nav">
      <li class="nav-item">
         <a class="nav-link navbar-brand" href="#">
         <img src="../images/logo.png" style="width:64px;">
         </a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Javascript</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Css</a>
      </li>
      <li class="nav-item">
         <a class="nav-link" href="#">Bootstrap</a>
      </li>
   </ul>
</nav>

3. Collapsing Navbar

Normally, on the devices with small screens, websites often choose the act of collapsing the navigation bar into a button, when the user clicks on that button, the navigation bar will display vertically.

For the navigation bar to have the above act, you need to use it in combination with the following css classes:

collapse
navbar-collapse
navbar-toggler

navbar-collapsing-example.html

<!DOCTYPE html>
<html>
   <head>
      <meta charset="utf-8">
      <title>Navbar Example</title>
      <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css">
   </head>
   <body>

      <nav class="navbar navbar-expand-sm bg-dark navbar-dark">
         <!-- Brand -->
         <a class="navbar-brand" href="#">o7planning</a>

         <!-- Toggler/collapsibe Button -->
         <button class="navbar-toggler" type="button" data-toggle="collapse" data-target="#collapsibleNavbar">
            <span class="navbar-toggler-icon"></span>
         </button>

         <!-- Navbar links -->
         <div class="collapse navbar-collapse" id="collapsibleNavbar">
            <ul class="navbar-nav">
               <li class="nav-item">
                  <a class="nav-link" href="#">Javascript</a>
               </li>
               <li class="nav-item">
                  <a class="nav-link" href="#">Css</a>
               </li>
               <li class="nav-item">
                  <a class="nav-link" href="#">Bootstrap</a>
               </li>
            </ul>
         </div>
      </nav>

      <script src="https://code.jquery.com/jquery-3.2.1.slim.min.js"></script>
      <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.12.9/umd/popper.min.js"></script>
      <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/js/bootstrap.min.js"></script>
   </body>

</html>

4. Navbar Left & Right

A Navbar can contain one or more ".navbar-nav". Below is an example, a Navbar with a Brand, and a ".navbar-nav" on the left and a ".navbar-nav" on the right.

navbar-leftright-example.html

<!DOCTYPE html>
<html>
   <head>
      <meta charset="utf-8">
      <title>Navbar Example</title>
      <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css">
   </head>
   <body>
      <nav class="navbar navbar-expand-sm navbar-dark bg-primary">
         <a class="navbar-brand" href="#">o7planning</a>

         <!-- Left -->
         <ul class="navbar-nav mr-auto">
            <li class="nav-item">
               <a class="nav-link">Java</a>
            </li>
            <li class="nav-item">
               <a class="nav-link">C/C++</a>
            </li>
         </ul>
         <!-- Right -->
         <ul class="navbar-nav ml-auto">
           <li class="nav-item">
              <a class="nav-link">Tom</a>
           </li>
           <li class="nav-item">
              <a class="nav-link">Logout</a>
           </li>
         </ul>
      </nav>

      <script src="https://code.jquery.com/jquery-3.2.1.slim.min.js"></script>
      <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.12.9/umd/popper.min.js"></script>
      <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/js/bootstrap.min.js"></script>
   </body>
</html>

mr-auto, ml-auto (?)
Bootstrap Spacing

5. Dropdown Navbar

navbar-dropdown-example.html

<!DOCTYPE html>
<html>
   <head>
      <meta charset="utf-8">
      <title>Navbar Example</title>
      <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css">
   </head>
   <body>
      <nav class="navbar navbar-expand-sm bg-dark navbar-dark">

         <!-- Brand -->
         <a class="navbar-brand" href="#">o7planning</a>

         <!-- Links -->
         <ul class="navbar-nav">
            <li class="nav-item">
               <a class="nav-link" href="#">Java</a>
            </li>
            <li class="nav-item">
               <a class="nav-link" href="#">C/C++</a>
            </li>
            <!-- Dropdown -->
            <li class="nav-item dropdown">
               <a class="nav-link dropdown-toggle" href="#" id="navbardrop" data-toggle="dropdown">
               Front-end
               </a>
               <div class="dropdown-menu">
                  <a class="dropdown-item" href="#">Javascript</a>
                  <a class="dropdown-item" href="#">Css</a>
                  <a class="dropdown-item" href="#">Bootstrap</a>
               </div>
            </li>
         </ul>

      </nav>

      <script src="https://code.jquery.com/jquery-3.2.1.slim.min.js"></script>
      <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.12.9/umd/popper.min.js"></script>
      <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/js/bootstrap.min.js"></script>
   </body>
</html>

6. Navbar & Form

Form can also appear on a Navbar, most commonly search Form, which allows users enter a keyword to search a content of website.

<!-- Navbar-nav with FORM -->
<ul class="navbar-nav">
   <form class="form-inline" action="/somepage">
      <input class="form-control mr-sm-2" type="text" placeholder="Search">
      <button class="btn btn-success" type="submit">Search</button>
   </form>
</ul>

navbar-form-example.html

<!DOCTYPE html>
<html>
   <head>
      <meta charset="utf-8">
      <title>Navbar Example</title>
      <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css">
   </head>
   <body>

      <nav class="navbar navbar-expand-sm navbar-dark bg-primary rounded">
         <a class="navbar-brand" href="#">o7planning</a>
         <ul class="navbar-nav mr-auto">
            <li class="nav-item">
               <a class="nav-link">Java</a>
            </li>
            <li class="nav-item">
               <a class="nav-link">C/C++</a>
            </li>
         </ul>
         <!-- Navbar-nav with FORM -->
         <ul class="navbar-nav ml-auto">
            <form class="form-inline" action="/somepage">
               <input class="form-control mr-sm-2" type="text" placeholder="Search">
               <button class="btn btn-success" type="submit">Search</button>
            </form>
         </ul>
      </nav>

      <script src="https://code.jquery.com/jquery-3.2.1.slim.min.js"></script>
      <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.12.9/umd/popper.min.js"></script>
      <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/js/bootstrap.min.js"></script>
   </body>
</html>

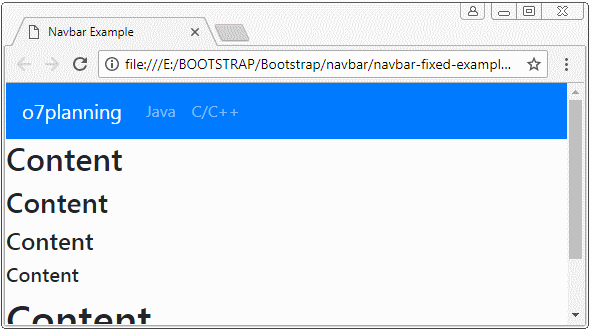

7. Fixed NavBar

.fixed-top is a utility class in the Bootstrap. It is used to fix an element on the viewport side of browser. You can apply this class to Navbar.

navbar-fixed-example.html

<!DOCTYPE html>
<html>
   <head>
      <meta charset="utf-8">
      <title>Navbar Example</title>
      <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css">
   </head>
   <body>

      <nav class="navbar navbar-expand-sm navbar-dark bg-primary fixed-top">
         <a class="navbar-brand" href="#">o7planning</a>
         <ul class="navbar-nav mr-auto">
            <li class="nav-item">
               <a class="nav-link">Java</a>
            </li>
            <li class="nav-item">
               <a class="nav-link">C/C++</a>
            </li>
         </ul>
      </nav>

      <h1 class="mt-6">Content</h1>
      <h2>Content</h2>
      <h3>Content</h3>
      <h4>Content</h4>
      <h5>Content</h5>
      <h1>Content</h1>
      <h2>Content</h2>

      <script src="https://code.jquery.com/jquery-3.2.1.slim.min.js"></script>
      <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.12.9/umd/popper.min.js"></script>
      <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/js/bootstrap.min.js"></script>
   </body>
</html>

Bootstrap Position
