Simple CRUD example with Spring MVC RESTful Web Service

  1. The objective of the document
  2. XML-Binding & JSON-Binding
  3. Create Maven Project
  4. Configure web.xml & pom.xml
  5. Configure Spring MVC
  6. Data Model
  7. Spring REST Controller
  8. Running apps
Websites to learn foreign languages for free:
Follow us on our fanpages to receive notifications every time there are new articles. Facebook Twitter

1- The objective of the document

In the post, I will show you the way to create a RESTful Web service application with Spring MVC.
First of all, you should find out "What is RESTful Web Services?":
Note that there are a lot of ways to create a RESTful Web Service application, one of which is to use JAX-RS, Spring Boot, you can see relevant guides here:

2- XML-Binding & JSON-Binding

JAVA <==> JSON
Spring MVC need a JSON-Binding to convert Java object into JSON and vice versa. And you can use Jackson (jackson-databind).

<!-- MAVEN -->

<!--  https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
<dependency>
   <groupId>com.fasterxml.jackson.core</groupId>
   <artifactId>jackson-databind</artifactId>
   <version>2.8.3</version>
</dependency>
JAVA <==> XML:
Spring MVC needs a XML-Binding to convert a Java object into XML, in case you have two choices.
  • Use Jackson: jackson-dataformat-xml
  • Or use JAXB
-
  1. JAXB (Java Architecture for XML Binding) - Is a library integrated into Java Standard Edition from version 1.6.
  2. jackson-dataformat-xml: Is a extended library of Jackson.

<!-- jackson-dataformat-xml  -->

<!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.dataformat/jackson-dataformat-xml -->
<dependency>
    <groupId>com.fasterxml.jackson.dataformat</groupId>
    <artifactId>jackson-dataformat-xml</artifactId>
    <version>2.8.3</version>
</dependency>
  • Jackson: Java Object ==> XML
jackson-dataformat-xml converts a Java object into XML without Annotation attached to the model classes.
  • JAXB (Java Architecture for XML Binding): Java ==> XML
In case that you want Spring MVC to use JAXB as a default XML-Binding. You need to use @XmlRootElement to annotate in model classes.
In the post, I will use Jackson library to convert Java objects into XML and JSON.

<!-- JSON-Binding -->
<!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.8.3</version>
</dependency>

<!-- XML-Binding -->
<!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.dataformat/jackson-dataformat-xml -->
 <dependency>
    <groupId>com.fasterxml.jackson.dataformat</groupId>
    <artifactId>jackson-dataformat-xml</artifactId>
    <version>2.8.3</version>
</dependency>

3- Create Maven Project

In Eclipse create an Empty Maven Web App named SpringMVCRESTful

4- Configure web.xml & pom.xml

Using Web App  >= 3.
web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="http://java.sun.com/xml/ns/javaee"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
    http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
    id="WebApp_ID" version="3.0">

    <display-name>SpringMVCRESTful</display-name>

</web-app>
Maven:
pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                      http://maven.apache.org/maven-v4_0_0.xsd">

  <modelVersion>4.0.0</modelVersion>
  <groupId>org.o7planning</groupId>
  <artifactId>SpringMVCRESTful</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>SpringMVCRESTful Maven Webapp</name>
  <url>http://maven.apache.org</url>


  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>
    </dependency>
        <!-- Servlet Library -->
        <!-- http://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>

        <!-- Spring dependencies -->
        <!-- http://mvnrepository.com/artifact/org.springframework/spring-core -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>4.3.1.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework/spring-web -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>4.3.1.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
          <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>4.3.1.RELEASE</version>
        </dependency>


        <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
          <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.8.3</version>
        </dependency>


        <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.dataformat/jackson-dataformat-xml -->
         <dependency>
            <groupId>com.fasterxml.jackson.dataformat</groupId>
            <artifactId>jackson-dataformat-xml</artifactId>
            <version>2.8.3</version>
        </dependency>


    </dependencies>


    <build>
        <finalName>SpringMVCRESTful</finalName>
        <plugins>

            <!-- Config: Maven Tomcat Plugin -->
            <!-- http://mvnrepository.com/artifact/org.apache.tomcat.maven/tomcat7-maven-plugin -->
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <!-- Config: contextPath and Port (Default: /SpringMVCRESTful : 8080) -->
                <!--
                <configuration>
                    <path>/</path>
                    <port>8899</port>
                </configuration>
                -->
            </plugin>
        </plugins>
    </build>

</project>

5- Configure Spring MVC

SpringWebAppInitializer.java

package org.o7planning.springmvcrestful.config;

import javax.servlet.FilterRegistration;
import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.ServletRegistration;

import org.springframework.web.WebApplicationInitializer;
import org.springframework.web.context.support.AnnotationConfigWebApplicationContext;
import org.springframework.web.filter.CharacterEncodingFilter;
import org.springframework.web.servlet.DispatcherServlet;

public class SpringWebAppInitializer implements WebApplicationInitializer {

    @Override
    public void onStartup(ServletContext servletContext) throws ServletException {
        AnnotationConfigWebApplicationContext appContext = new AnnotationConfigWebApplicationContext();
        appContext.register(ApplicationContextConfig.class);

        ServletRegistration.Dynamic dispatcher = servletContext.addServlet("SpringDispatcher",
                new DispatcherServlet(appContext));
        dispatcher.setLoadOnStartup(1);
        dispatcher.addMapping("/");

        // UTF8 Charactor Filter.
        FilterRegistration.Dynamic fr = servletContext.addFilter("encodingFilter", CharacterEncodingFilter.class);

        fr.setInitParameter("encoding", "UTF-8");
        fr.setInitParameter("forceEncoding", "true");
        fr.addMappingForUrlPatterns(null, true, "/*");
    }

}
ApplicationContextConfig.java

package org.o7planning.springmvcrestful.config;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

@Configuration

@ComponentScan("org.o7planning.springmvcrestful.*")

public class ApplicationContextConfig {


   // No need ViewSolver



   // Other declarations if needed ...

}
WebMvcConfig.java

package org.o7planning.springmvcrestful.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.DefaultServletHandlerConfigurer;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;

@Configuration
@EnableWebMvc
public class WebMvcConfig extends WebMvcConfigurerAdapter {

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {

    }

    @Override
    public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
        configurer.enable();
    }

}

6- Data Model

Employee.java

package org.o7planning.springmvcrestful.model;

public class Employee {

    private String empNo;
    private String empName;
    private String position;

    // This default constructor is required if there are other constructors.
    public Employee() {

    }

    public Employee(String empNo, String empName, String position) {
        this.empNo = empNo;
        this.empName = empName;
        this.position = position;
    }

    public String getEmpNo() {
        return empNo;
    }

    public void setEmpNo(String empNo) {
        this.empNo = empNo;
    }

    public String getEmpName() {
        return empName;
    }

    public void setEmpName(String empName) {
        this.empName = empName;
    }

    public String getPosition() {
        return position;
    }

    public void setPosition(String position) {
        this.position = position;
    }

}
EmployeeDAO class simulate retrieving data from a data source, and process insert, update, delete.
EmployeeDAO.java

package org.o7planning.springmvcrestful.dao;

import java.util.ArrayList;
import java.util.Collection;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.o7planning.springmvcrestful.model.Employee;
import org.springframework.stereotype.Repository;

@Repository
public class EmployeeDAO {

    private static final Map<String, Employee> empMap = new HashMap<String, Employee>();

    static {
        initEmps();
    }

    private static void initEmps() {
        Employee emp1 = new Employee("E01", "Smith", "Clerk");
        Employee emp2 = new Employee("E02", "Allen", "Salesman");
        Employee emp3 = new Employee("E03", "Jones", "Manager");

        empMap.put(emp1.getEmpNo(), emp1);
        empMap.put(emp2.getEmpNo(), emp2);
        empMap.put(emp3.getEmpNo(), emp3);
    }

    public Employee getEmployee(String empNo) {
        return empMap.get(empNo);
    }

    public Employee addEmployee(Employee emp) {
        empMap.put(emp.getEmpNo(), emp);
        return emp;
    }

    public Employee updateEmployee(Employee emp) {
        empMap.put(emp.getEmpNo(), emp);
        return emp;
    }

    public void deleteEmployee(String empNo) {
        empMap.remove(empNo);
    }

    public List<Employee> getAllEmployees() {
        Collection<Employee> c = empMap.values();
        List<Employee> list = new ArrayList<Employee>();
        list.addAll(c);
        return list;
    }

}

7- Spring REST Controller

Spring uses @RestController to annotate in a class, the class will be a RESTful Controller.
MainRESTController.java

package org.o7planning.springmvcrestful.controller;

import java.util.List;

import org.o7planning.springmvcrestful.dao.EmployeeDAO;
import org.o7planning.springmvcrestful.model.Employee;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.MediaType;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class MainRESTController {

    @Autowired
    private EmployeeDAO employeeDAO;

    @RequestMapping("/")
    @ResponseBody
    public String welcome() {
        return "Welcome to RestTemplate Example.";
    }

    // URL:
    // http://localhost:8080/SpringMVCRESTful/employees
    // http://localhost:8080/SpringMVCRESTful/employees.xml

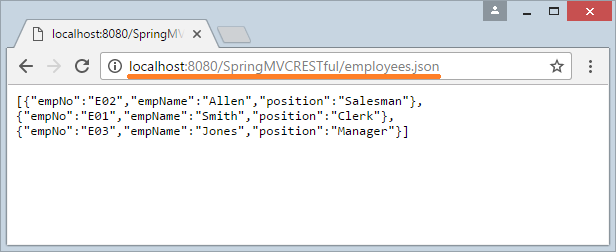

    // http://localhost:8080/SpringMVCRESTful/employees.json
    @RequestMapping(value = "/employees", //
            method = RequestMethod.GET, //
            produces = { MediaType.APPLICATION_JSON_VALUE, MediaType.APPLICATION_XML_VALUE })
    @ResponseBody
    public List<Employee> getEmployees() {
        List<Employee> list = employeeDAO.getAllEmployees();
        return list;
    }

    // URL:
    // http://localhost:8080/SpringMVCRESTful/employee/{empNo}
    // http://localhost:8080/SpringMVCRESTful/employee/{empNo}.xml
    // http://localhost:8080/SpringMVCRESTful/employee/{empNo}.json
    @RequestMapping(value = "/employee/{empNo}", //
            method = RequestMethod.GET, //
            produces = { MediaType.APPLICATION_JSON_VALUE, MediaType.APPLICATION_XML_VALUE })
    @ResponseBody
    public Employee getEmployee(@PathVariable("empNo") String empNo) {
        return employeeDAO.getEmployee(empNo);
    }

    // URL:
    // http://localhost:8080/SpringMVCRESTful/employee
    // http://localhost:8080/SpringMVCRESTful/employee.xml
    // http://localhost:8080/SpringMVCRESTful/employee.json
    @RequestMapping(value = "/employee", //
            method = RequestMethod.POST, //
            produces = { MediaType.APPLICATION_JSON_VALUE, MediaType.APPLICATION_XML_VALUE })
    @ResponseBody
    public Employee addEmployee(@RequestBody Employee emp) {

        return employeeDAO.addEmployee(emp);

    }

    // URL:
    // http://localhost:8080/SpringMVCRESTful/employee
    // http://localhost:8080/SpringMVCRESTful/employee.xml
    // http://localhost:8080/SpringMVCRESTful/employee.json
    @RequestMapping(value = "/employee", //
            method = RequestMethod.PUT, //
            produces = { MediaType.APPLICATION_JSON_VALUE, MediaType.APPLICATION_XML_VALUE })
    @ResponseBody
    public Employee updateEmployee(@RequestBody Employee emp) {

        return employeeDAO.updateEmployee(emp);
    }

    // URL:
    // http://localhost:8080/SpringMVCRESTful/employee/{empNo}
    @RequestMapping(value = "/employees/{empNo}", //
            method = RequestMethod.DELETE, //
            produces = { MediaType.APPLICATION_JSON_VALUE, MediaType.APPLICATION_XML_VALUE })
    @ResponseBody
    public void deleteEmployee(@PathVariable("empNo") String empNo) {
        employeeDAO.deleteEmployee(empNo);
    }

}

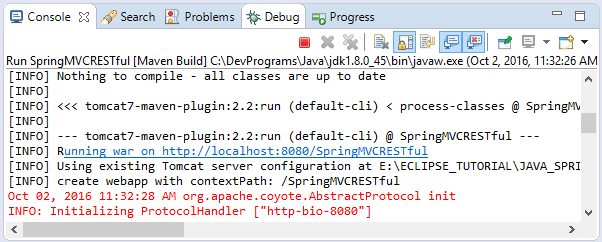

8- Running apps

  • Name: Run SpringMVCRESTful
  • Base directory: ${workspace_loc:/SpringMVCRESTful}
  • Goals: tomcat7:run
In order to test insert, update and delete data on RESTful web service, you need to use RESTClient tool which is an Addons for Firefox and Chrome, you can see the installation & use guide here:
Maybe you are interested

These are online courses outside the o7planning website that we introduced, which may include free or discounted courses.
