Spring MVC Security with Hibernate Tutorial with Examples

Introduction
Demo
Preparing the database
Create Project
Configuring Maven & web.xml
Hibernate Entity Classes
Configure Spring MVC & Security
Model, DAO, UserDetailService
Spring MVC Controller
JSP Pages
Configure and run the application

1. Introduction

The document is based on:

Eclipse 4.6 (NEON)
Spring MVC 4.x
Spring Security 4.x
Hibernate 4.x
(Annotation Config)

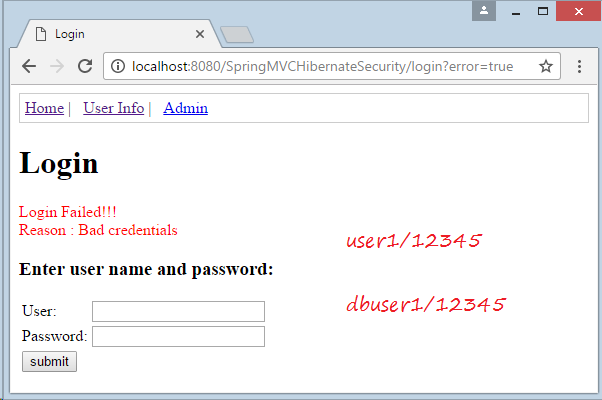

2. Demo

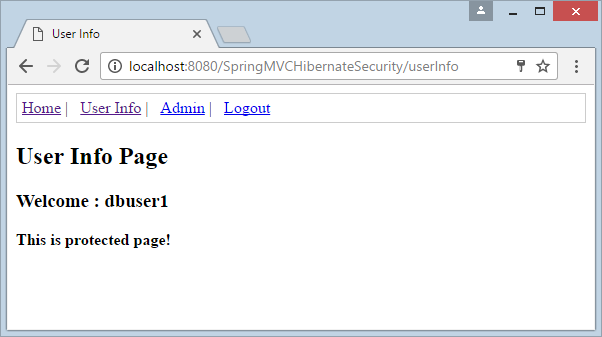

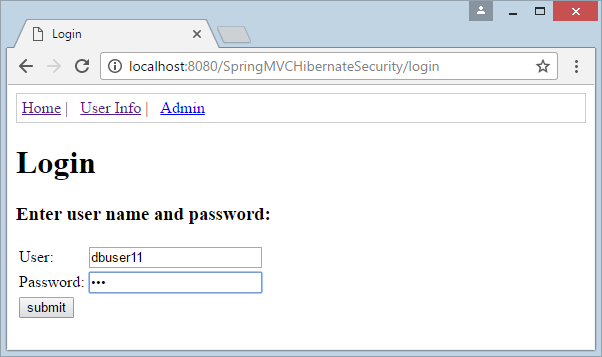

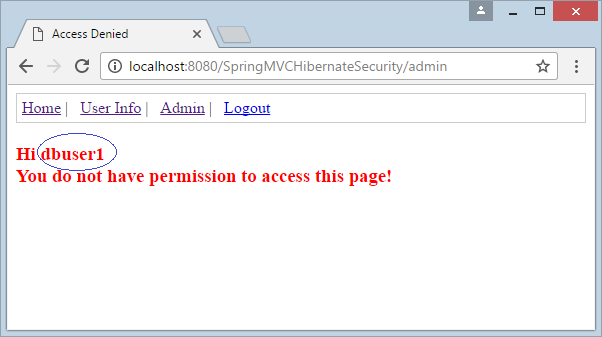

Preview application:

3. Preparing the database

ORACLE:

-- Create table
create table USERS
(
 USERNAME VARCHAR2(36) not null,
 PASSWORD VARCHAR2(36) not null,
 ENABLED  NUMBER(1) not null
) ;

alter table USERS
 add constraint USER_PK primary key (USERNAME);

---------------------

-- Create table
create table USER_ROLES
(
 ROLE_ID   VARCHAR2(50) not null,
 USERNAME  VARCHAR2(36) not null,
 USER_ROLE VARCHAR2(30) not null
) ;

alter table USER_ROLES
 add constraint USER_ROLE_PK primary key (ROLE_ID);

alter table USER_ROLES
 add constraint USER_ROLE_UK unique (USERNAME, USER_ROLE);

-------------------------------

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbuser1', '12345', 1);

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbadmin1', '12345', 1);


insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('1', 'dbuser1', 'USER');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('2', 'dbadmin1', 'ADMIN');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('3', 'dbadmin1', 'USER');

-------------------------------
Commit;

MySQL & SQL Server:

-- Create table
create table USERS
(
USERNAME VARCHAR(36) not null,
PASSWORD VARCHAR(36) not null,
ENABLED  smallint not null
) ;

alter table USERS
add constraint USER_PK primary key (USERNAME);

---------------------

-- Create table
create table USER_ROLES
(
ROLE_ID   VARCHAR(50) not null,
USERNAME  VARCHAR(36) not null,
USER_ROLE VARCHAR(30) not null
) ;

alter table USER_ROLES
add constraint USER_ROLE_PK primary key (ROLE_ID);

alter table USER_ROLES
add constraint USER_ROLE_UK unique (USERNAME, USER_ROLE);

-------------------------------

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbuser1', '12345', 1);

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbadmin1', '12345', 1);


insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('1', 'dbuser1', 'USER');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('2', 'dbadmin1', 'ADMIN');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('3', 'dbadmin1', 'USER');

4. Create Project

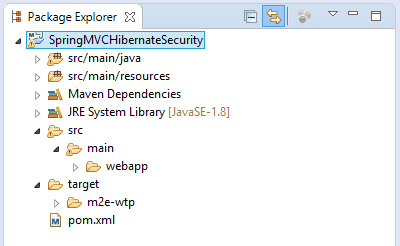

Create an Empty Maven Web App project with name SpringMVCHibernateSecurity.

Create an Empty Maven Web App project in Eclipse

5. Configuring Maven & web.xml

Configure to use Servlet 3.x:

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns="http://java.sun.com/xml/ns/javaee"
 xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
          http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
 id="WebApp_ID" version="3.0">

 <display-name>Spring MVC Security</display-name>


</web-app>

Maven:

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                  http://maven.apache.org/maven-v4_0_0.xsd">

  <modelVersion>4.0.0</modelVersion>
  <groupId>org.o7planning</groupId>
  <artifactId>SpringMVCHibernateSecurity</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>SpringMVCHibernateSecurity Maven Webapp</name>
  <url>http://maven.apache.org</url>



    <properties>
        <java-version>1.7</java-version>
    </properties>

    <repositories>
        <!-- Repository for ORACLE JDBC Driver -->
        <repository>
            <id>codelds</id>
            <url>https://code.lds.org/nexus/content/groups/main-repo</url>
        </repository>
    </repositories>

    <dependencies>

         <!-- Servlet API -->
        <!-- http://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>

        <!-- Jstl for jsp page -->
        <!-- http://mvnrepository.com/artifact/javax.servlet/jstl -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>


        <!-- JSP API -->
        <!-- http://mvnrepository.com/artifact/javax.servlet.jsp/jsp-api -->
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
            <scope>provided</scope>
        </dependency>

        <!-- Spring dependencies -->
        <!-- http://mvnrepository.com/artifact/org.springframework/spring-core -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>4.1.4.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework/spring-web -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>4.1.4.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>4.1.4.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework/spring-orm -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
            <version>4.1.4.RELEASE</version>
        </dependency>


        <!-- Spring Security Artifacts - START -->
        <!-- Spring Security Artifacts - START -->
        <!-- http://mvnrepository.com/artifact/org.springframework.security/spring-security-web -->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-web</artifactId>
            <version>4.0.4.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework.security/spring-security-config -->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-config</artifactId>
            <version>4.0.4.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework.security/spring-security-taglibs -->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-taglibs</artifactId>
            <version>4.0.4.RELEASE</version>
        </dependency>

        <!-- Hibernate -->
        <!-- http://mvnrepository.com/artifact/org.hibernate/hibernate-core -->
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-core</artifactId>
            <version>4.3.8.Final</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.hibernate/hibernate-entitymanager -->
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-entitymanager</artifactId>
            <version>4.3.8.Final</version>
        </dependency>


        <!-- http://mvnrepository.com/artifact/org.hibernate/hibernate-c3p0 -->
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-c3p0</artifactId>
            <version>4.3.8.Final</version>
        </dependency>

        <!-- Commons DataSources -->
        <!-- https://mvnrepository.com/artifact/commons-dbcp/commons-dbcp -->
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.4</version>
        </dependency>


        <!-- MySQL JDBC driver -->
        <!-- http://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.34</version>
        </dependency>

        <!-- Oracle JDBC driver -->
        <dependency>
            <groupId>com.oracle</groupId>
            <artifactId>ojdbc6</artifactId>
            <version>11.2.0.3</version>
        </dependency>

        <!-- SQLServer JDBC driver (JTDS) -->
        <!-- http://mvnrepository.com/artifact/net.sourceforge.jtds/jtds -->
        <dependency>
            <groupId>net.sourceforge.jtds</groupId>
            <artifactId>jtds</artifactId>
            <version>1.3.1</version>
        </dependency>


    </dependencies>


    <build>
        <finalName>SpringMVCHibernateSecurity</finalName>
        <plugins>

            <!-- Config: Maven Tomcat Plugin -->
            <!-- http://mvnrepository.com/artifact/org.apache.tomcat.maven/tomcat7-maven-plugin -->
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <!-- Config: contextPath and Port (Default - /SpringMVCHibernateSecurity : 8080) -->
                <!--
                <configuration>
                    <path>/</path>
                    <port>8899</port>
                </configuration>
                -->
            </plugin>
        </plugins>
    </build>


</project>

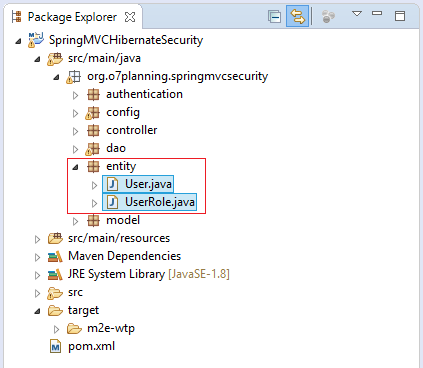

6. Hibernate Entity Classes

User.java

package org.o7planning.springmvcsecurity.entity;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Table;

@Entity
@Table(name = "Users")
public class User {

    private String username;
    private String password;
    private boolean enabled;

    @Id
    @Column(name = "Username", length = 36, nullable = false)
    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    @Column(name = "Password", nullable = false)
    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    @Column(name = "enabled", nullable = false)
    public boolean isEnabled() {
        return enabled;
    }

    public void setEnabled(boolean enabled) {
        this.enabled = enabled;
    }

}

UserRole.java

package org.o7planning.springmvcsecurity.entity;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.ManyToOne;
import javax.persistence.Table;
import javax.persistence.UniqueConstraint;

@Entity
@Table(name = "User_Roles", uniqueConstraints = //
           @UniqueConstraint(columnNames = { "Username", "User_Role" }))
public class UserRole {

    private String roleId;
    private User user;
    private String userRole;

    @Id
    @Column(name = "Role_Id", nullable = false)
    public String getRoleId() {
        return roleId;
    }

    public void setRoleId(String roleId) {
        this.roleId = roleId;
    }

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "Username")
    public User getUser() {
        return user;
    }

    public void setUser(User user) {
        this.user = user;
    }

    @Column(name = "User_Role", length = 30, nullable = false)
    public String getUserRole() {
        return userRole;
    }

    public void setUserRole(String userRole) {
        this.userRole = userRole;
    }

}

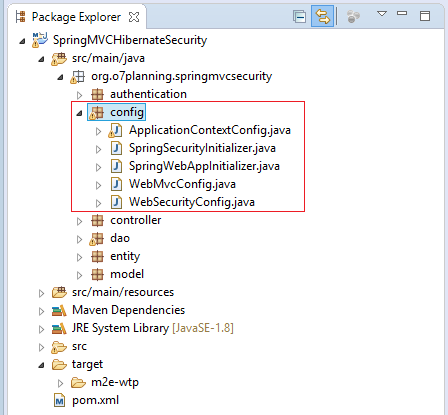

7. Configure Spring MVC & Security

SpringWebAppInitializer.java

package org.o7planning.springmvcsecurity.config;

import javax.servlet.FilterRegistration;
import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.ServletRegistration;

import org.springframework.web.WebApplicationInitializer;
import org.springframework.web.context.ContextLoaderListener;
import org.springframework.web.context.support.AnnotationConfigWebApplicationContext;
import org.springframework.web.filter.CharacterEncodingFilter;
import org.springframework.web.servlet.DispatcherServlet;

public class SpringWebAppInitializer implements WebApplicationInitializer {

    @Override
    public void onStartup(ServletContext servletContext) throws ServletException {
        AnnotationConfigWebApplicationContext appContext = new AnnotationConfigWebApplicationContext();
        appContext.register(ApplicationContextConfig.class);

        ServletRegistration.Dynamic dispatcher = servletContext.addServlet("SpringDispatcher",
                new DispatcherServlet(appContext));
        dispatcher.setLoadOnStartup(1);
        dispatcher.addMapping("/");



        ContextLoaderListener contextLoaderListener = new ContextLoaderListener(appContext);

        servletContext.addListener(contextLoaderListener);


        // Filter.
        FilterRegistration.Dynamic fr = servletContext.addFilter("encodingFilter", CharacterEncodingFilter.class);

        fr.setInitParameter("encoding", "UTF-8");
        fr.setInitParameter("forceEncoding", "true");
        fr.addMappingForUrlPatterns(null, true, "/*");
    }

}

Configure:

DataSource
Transaction Manager
Beans (SessionFactory, ...)
...

ApplicationContextConfig.java

package org.o7planning.springmvcsecurity.config;

import java.util.Properties;

import javax.sql.DataSource;

import org.apache.commons.dbcp.BasicDataSource;
import org.hibernate.SessionFactory;
import org.o7planning.springmvcsecurity.dao.UserInfoDAO;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.PropertySource;
import org.springframework.context.support.ResourceBundleMessageSource;
import org.springframework.core.env.Environment;
import org.springframework.orm.hibernate4.HibernateTransactionManager;
import org.springframework.orm.hibernate4.LocalSessionFactoryBean;
import org.springframework.transaction.annotation.EnableTransactionManagement;
import org.springframework.web.servlet.view.InternalResourceViewResolver;

@Configuration
@ComponentScan("org.o7planning.springmvcsecurity.*")
@EnableTransactionManagement
// Load to Environment.
@PropertySource("classpath:datasource-cfg.properties")
public class ApplicationContextConfig {

    // The Environment class serves as the property holder
    // and stores all the properties loaded by the @PropertySource
    @Autowired
    private Environment env;

    @Autowired
    private UserInfoDAO userInfoDAO;

    @Bean
    public ResourceBundleMessageSource messageSource() {
        ResourceBundleMessageSource rb = new ResourceBundleMessageSource();
        // Load property in message/validator.properties
        rb.setBasenames(new String[] { "messages/validator" });
        return rb;
    }

    @Bean(name = "viewResolver")
    public InternalResourceViewResolver getViewResolver() {
        InternalResourceViewResolver viewResolver = new InternalResourceViewResolver();
        viewResolver.setPrefix("/WEB-INF/pages/");
        viewResolver.setSuffix(".jsp");
        return viewResolver;
    }

    @Bean(name = "dataSource")
    public DataSource getDataSource() {
        BasicDataSource dataSource = new BasicDataSource();

        // See: datasouce-cfg.properties
        dataSource.setDriverClassName(env.getProperty("ds.database-driver"));
        dataSource.setUrl(env.getProperty("ds.url"));
        dataSource.setUsername(env.getProperty("ds.username"));
        dataSource.setPassword(env.getProperty("ds.password"));

        System.out.println("## getDataSource: " + dataSource);

        return dataSource;
    }

    @Autowired
    @Bean(name = "sessionFactory")
    public SessionFactory getSessionFactory(DataSource dataSource) throws Exception {
        System.out.println("## getSessionFactory .... ");
        try {
            Properties properties = new Properties();

            // See: ds-hibernate-cfg.properties
            properties.put("hibernate.dialect", env.getProperty("hibernate.dialect"));
            properties.put("hibernate.show_sql", env.getProperty("hibernate.show_sql"));
            properties.put("current_session_context_class", env.getProperty("current_session_context_class"));

            LocalSessionFactoryBean factoryBean = new LocalSessionFactoryBean();

            // Package contain entity classes
            factoryBean.setPackagesToScan(new String[] { "org.o7planning.springmvcsecurity.entity" });
            factoryBean.setDataSource(dataSource);
            factoryBean.setHibernateProperties(properties);
            factoryBean.afterPropertiesSet();
            //
            SessionFactory sf = factoryBean.getObject();
            System.out.println("## getSessionFactory: " + sf);
            return sf;
        } catch (Exception e) {
            System.out.println("Error getSessionFactory: " + e);
            e.printStackTrace();
            throw e;
        }

    }

    // Hibernate Transaction Manager
    @Autowired
    @Bean(name = "transactionManager")
    public HibernateTransactionManager getTransactionManager(SessionFactory sessionFactory) {
        HibernateTransactionManager transactionManager = new HibernateTransactionManager(sessionFactory);

        return transactionManager;
    }

}

ApplicationContextConfig will read datasouce-cfg.xml file:

datasouce-cfg.properties (For Oracle)

# DataSource

ds.database-driver=oracle.jdbc.driver.OracleDriver
ds.url=jdbc:oracle:thin:@localhost:1521:db12c
ds.username=test
ds.password=12345

# Hibernate Config

hibernate.dialect=org.hibernate.dialect.Oracle10gDialect
hibernate.show_sql=true
current_session_context_class=thread
hibernate.hbm2ddl.auto=update

datasource-cfg.properties (For SQL Server)

# DataSource

ds.database-driver=net.sourceforge.jtds.jdbc.Driver
ds.url=jdbc:jtds:sqlserver://localhost:1433/simplehr;instance=SQLEXPRESS
ds.username=test
ds.password=12345



# Hibernate Config

hibernate.dialect=org.hibernate.dialect.SQLServerDialect
hibernate.show_sql=true
current_session_context_class=thread
hibernate.hbm2ddl.auto=update

datasource-cfg.properties (For MySQL)

# DataSource

ds.database-driver=com.mysql.jdbc.Driver
ds.url=jdbc:mysql://localhost:3306/mydatabase
ds.username=root
ds.password=12345


# Hibernate Config

hibernate.dialect=org.hibernate.dialect.MySQLDialect
hibernate.show_sql=true
current_session_context_class=thread
hibernate.hbm2ddl.auto=update

WebMvcConfig.java

package org.o7planning.springmvcsecurity.config;

import java.nio.charset.Charset;
import java.util.Arrays;
import java.util.List;

import org.springframework.context.annotation.Configuration;
import org.springframework.http.MediaType;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.StringHttpMessageConverter;
import org.springframework.web.servlet.config.annotation.DefaultServletHandlerConfigurer;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;

@Configuration
@EnableWebMvc
public class WebMvcConfig extends WebMvcConfigurerAdapter {

    private static final Charset UTF8 = Charset.forName("UTF-8");

    // Config UTF-8 Encoding.
    @Override
    public void configureMessageConverters(List<HttpMessageConverter<?>> converters) {
        StringHttpMessageConverter stringConverter = new StringHttpMessageConverter();
        stringConverter.setSupportedMediaTypes(Arrays.asList(new MediaType("text", "plain", UTF8)));
        converters.add(stringConverter);

        // Add other converters ...
    }


    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {

    }

    @Override
    public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
        configurer.enable();
    }

}

SpringSecurityInitializer.java

package org.o7planning.springmvcsecurity.config;

import org.springframework.security.web.context.AbstractSecurityWebApplicationInitializer;


public class SpringSecurityInitializer extends AbstractSecurityWebApplicationInitializer {

    // Do nothing

}

WebSecurityConfig.java

package org.o7planning.springmvcsecurity.config;

import org.o7planning.springmvcsecurity.authentication.MyUserDetailsService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.transaction.annotation.Transactional;

@Configuration
@EnableWebSecurity
@Transactional
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {


    @Autowired
    private MyUserDetailsService myUserDetailsService;

    @Autowired
    public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {

        // Users in memory.

        auth.inMemoryAuthentication().withUser("user1").password("12345").roles("USER");
        auth.inMemoryAuthentication().withUser("admin1").password("12345").roles("USER, ADMIN");

        // For User in database.
        auth.userDetailsService(myUserDetailsService);

    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {

        http.csrf().disable();

        // The pages does not require login
        http.authorizeRequests().antMatchers("/", "/welcome", "/login", "/logout").permitAll();

        // /userInfo page requires login as USER or ADMIN.
        // If no login, it will redirect to /login page.
        http.authorizeRequests().antMatchers("/userInfo").access("hasAnyRole('ROLE_USER', 'ROLE_ADMIN')");

        // For ADMIN only.
        http.authorizeRequests().antMatchers("/admin").access("hasRole('ROLE_ADMIN')");

        // When the user has logged in as XX.
        // But access a page that requires role YY,
        // AccessDeniedException will throw.
        http.authorizeRequests().and().exceptionHandling().accessDeniedPage("/403");

        // Config for Login Form
        http.authorizeRequests().and().formLogin()//
                // Submit URL of login page.
                .loginProcessingUrl("/j_spring_security_check") // Submit URL
                .loginPage("/login")//
                .defaultSuccessUrl("/userInfo")//
                .failureUrl("/login?error=true")//
                .usernameParameter("username")//
                .passwordParameter("password")
                // Config for Logout Page
                .and().logout().logoutUrl("/logout").logoutSuccessUrl("/logoutSuccessful");

    }
}

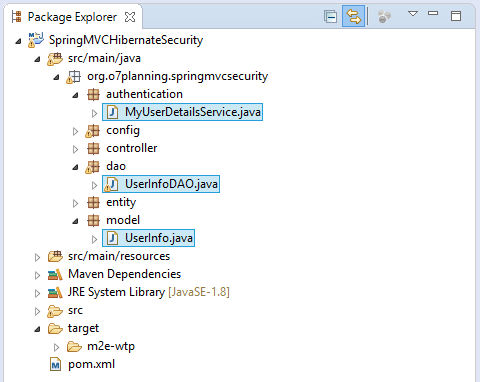

8. Model, DAO, UserDetailService

UserInfo class corresponds to a record in the USERS table.

UserInfo.java

package org.o7planning.springmvcsecurity.model;

public class UserInfo {

   private String userName;
   private String password;

   public UserInfo()  {

   }

   // Do not change this constructor, it used in hibernate Query.
   public UserInfo(String userName, String password) {
       this.userName = userName;
       this.password = password;
   }

   public String getUserName() {
       return userName;
   }

   public void setUserName(String userName) {
       this.userName = userName;
   }

   public String getPassword() {
       return password;
   }

   public void setPassword(String password) {
       this.password = password;
   }

}

UserInfoDAO.java

package org.o7planning.springmvcsecurity.dao;

import java.util.List;

import org.hibernate.Query;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.o7planning.springmvcsecurity.entity.User;
import org.o7planning.springmvcsecurity.entity.UserRole;
import org.o7planning.springmvcsecurity.model.UserInfo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;
import org.springframework.transaction.annotation.Transactional;

@Repository
@Transactional
public class UserInfoDAO {

    @Autowired
    private SessionFactory sessionFactory;

    public UserInfoDAO() {

    }

    public UserInfo findUserInfo(String userName) {
        String sql = "Select new " + UserInfo.class.getName() + "(u.username,u.password) "//
                + " from " + User.class.getName() + " u where u.username = :username ";

        Session session = sessionFactory.getCurrentSession();

        Query query = session.createQuery(sql);
        query.setParameter("username", userName);

        return (UserInfo) query.uniqueResult();
    }

    public List<String> getUserRoles(String userName) {
        String sql = "Select r.userRole "//
                + " from " + UserRole.class.getName() + " r where r.user.username = :username ";

        Session session = sessionFactory.getCurrentSession();

        Query query = session.createQuery(sql);
        query.setParameter("username", userName);

        List<String> roles = query.list();

        return roles;
    }

}

MyUserDetailsService.java

package org.o7planning.springmvcsecurity.authentication;

import java.util.ArrayList;
import java.util.List;

import org.o7planning.springmvcsecurity.dao.UserInfoDAO;
import org.o7planning.springmvcsecurity.model.UserInfo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

@Service
public class MyUserDetailsService implements UserDetailsService {

    @Autowired
    private UserInfoDAO userInfoDAO;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        UserInfo userInfo = userInfoDAO.findUserInfo(username);
        System.out.println("UserInfo= " + userInfo);

        if (userInfo == null) {
            throw new UsernameNotFoundException("User " + username + " was not found in the database");
        }

        // [USER,ADMIN,..]
        List<String> roles= userInfoDAO.getUserRoles(username);

        List<GrantedAuthority> grantList= new ArrayList<GrantedAuthority>();
        if(roles!= null)  {
            for(String role: roles)  {
                // ROLE_USER, ROLE_ADMIN,..
                GrantedAuthority authority = new SimpleGrantedAuthority("ROLE_" + role);
                grantList.add(authority);
            }
        }

        UserDetails userDetails = (UserDetails) new User(userInfo.getUserName(), //
                userInfo.getPassword(),grantList);

        return userDetails;
    }

}

9. Spring MVC Controller

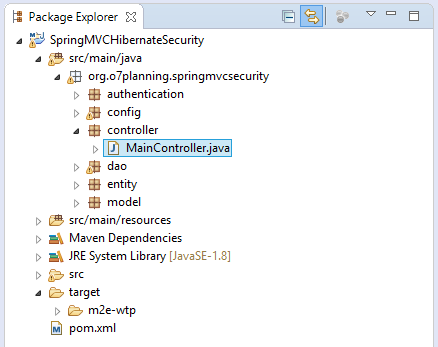

MainController.java

package org.o7planning.springmvcsecurity.controller;

import java.security.Principal;

import org.springframework.stereotype.Controller;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
@Transactional
public class MainController {

   @RequestMapping(value = { "/", "/welcome" }, method = RequestMethod.GET)
   public String welcomePage(Model model) {
       model.addAttribute("title", "Welcome");
       model.addAttribute("message", "This is welcome page!");
       return "welcomePage";
   }

   @RequestMapping(value = "/admin", method = RequestMethod.GET)
   public String adminPage(Model model) {
       return "adminPage";
   }

   @RequestMapping(value = "/login", method = RequestMethod.GET)
   public String loginPage(Model model ) {

       return "loginPage";
   }

   @RequestMapping(value = "/logoutSuccessful", method = RequestMethod.GET)
   public String logoutSuccessfulPage(Model model) {
       model.addAttribute("title", "Logout");
       return "logoutSuccessfulPage";
   }

   @RequestMapping(value = "/userInfo", method = RequestMethod.GET)
   public String userInfo(Model model, Principal principal) {

       // After user login successfully.
       String userName = principal.getName();

       System.out.println("User Name: "+ userName);

       return "userInfoPage";
   }

   @RequestMapping(value = "/403", method = RequestMethod.GET)
   public String accessDenied(Model model, Principal principal) {

       if (principal != null) {
           model.addAttribute("message", "Hi " + principal.getName()
                   + "<br> You do not have permission to access this page!");
       } else {
           model.addAttribute("msg",
                   "You do not have permission to access this page!");
       }
       return "403Page";
   }
}

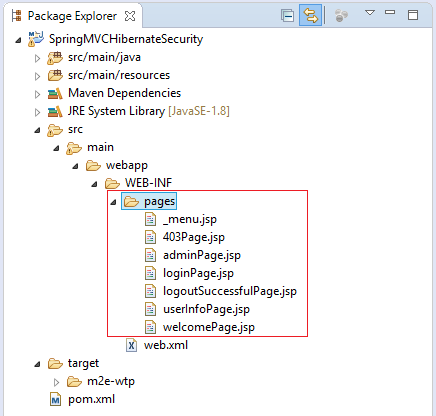

10. JSP Pages

_menu.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>

<div style="border: 1px solid #ccc;padding:5px;margin-bottom:20px;">

  <a href="${pageContext.request.contextPath}/welcome">Home</a>

  | &nbsp;

   <a href="${pageContext.request.contextPath}/userInfo">User Info</a>

  | &nbsp;

  <a href="${pageContext.request.contextPath}/admin">Admin</a>

  <c:if test="${pageContext.request.userPrincipal.name != null}">

     | &nbsp;
     <a href="${pageContext.request.contextPath}/logout">Logout</a>

  </c:if>

</div>

403Page.jsp

<%@page session="false"%>
<html>
<head>
<title>Access Denied</title>
</head>
<body>
<jsp:include page="_menu.jsp"/>

    <h3 style="color:red;">${message}</h3>
</body>
</html>

adminPage.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@page session="true"%>

<html>
<head>
<title>${title}</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />

    <h2>Admin Page</h2>


    <h3>Welcome : ${pageContext.request.userPrincipal.name}</h3>

    <b>This is protected page!</b>
</body>
</html>

loginPage.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>

<html>
<head><title>Login</title></head>
<body>
   <jsp:include page="_menu.jsp" />


   <h1>Login</h1>

     <!-- /login?error=true -->
     <c:if test="${param.error == 'true'}">
         <div style="color:red;margin:10px 0px;">

                Login Failed!!!<br />
                Reason :  ${sessionScope["SPRING_SECURITY_LAST_EXCEPTION"].message}

         </div>
    </c:if>

   <h3>Enter user name and password:</h3>

   <form name='f' action="${pageContext.request.contextPath}/j_spring_security_check" method='POST'>
      <table>
         <tr>
            <td>User:</td>
            <td><input type='text' name='username' value=''></td>
         </tr>
         <tr>
            <td>Password:</td>
            <td><input type='password' name='password' /></td>
         </tr>
         <tr>
            <td><input name="submit" type="submit" value="submit" /></td>
         </tr>
      </table>
  </form>
</body>
</html>

logoutSuccessfulPage.jsp

<html>
<head>
<title>Logout</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />

    <h1>Logout Successful!</h1>
</body>
</html>

userInfoPage.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@page session="true"%>

<html>
<head>
<title>User Info</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />

    <h2>User Info Page</h2>

    <h3>Welcome : ${pageContext.request.userPrincipal.name}</h3>

    <b>This is protected page!</b>
</body>
</html>

welcomePage.jsp

<%@page session="false"%>
<html>
<head>
<title>${title}</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />


    <h1>Message : ${message}</h1>
</body>
</html>

11. Configure and run the application

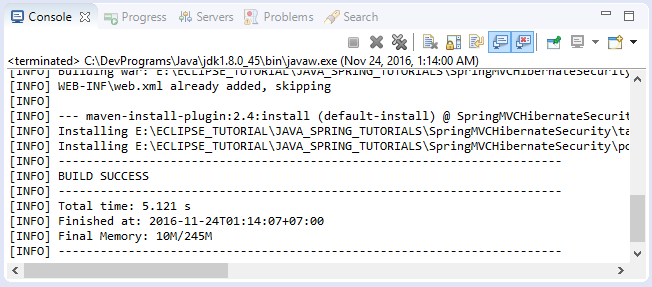

In the first, before running the application you need to build the project.

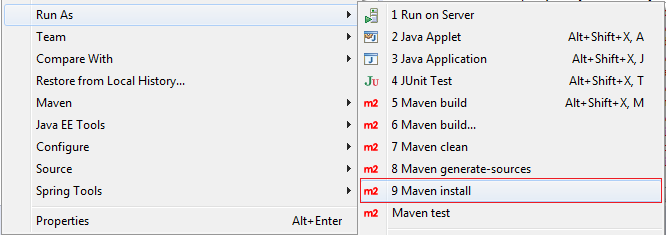

Right-click the project and select:

Run As/Maven install

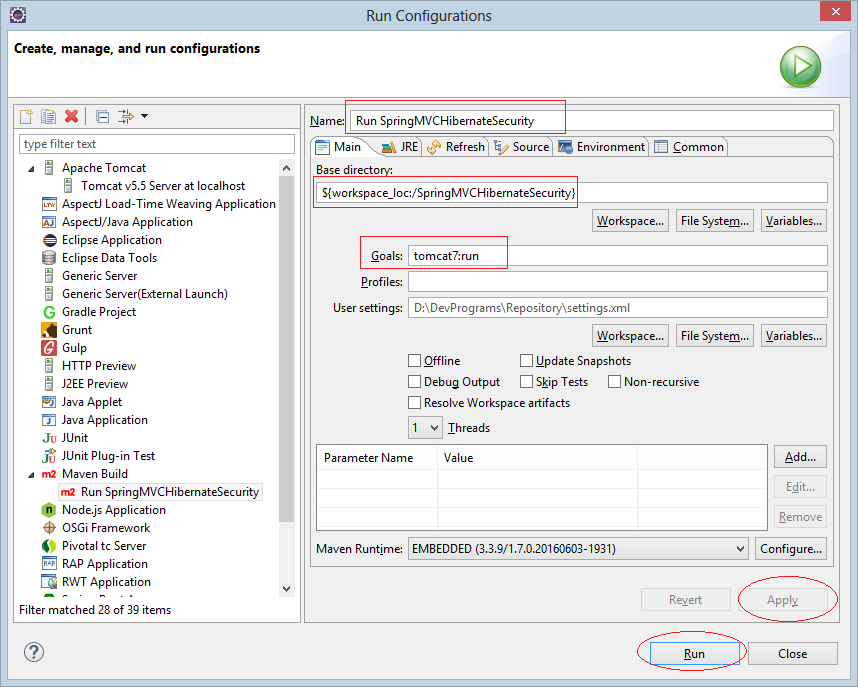

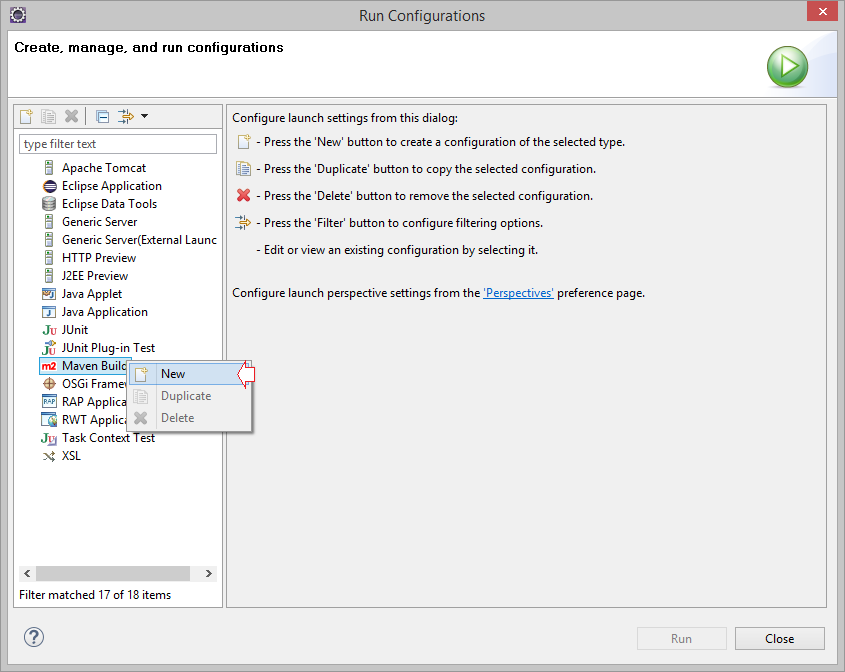

Run configurations:

Enter:

Name: Run SpringMVCHibernateSecurity
Base directory: ${workspace_loc:/SpringMVCHibernateSecurity}
Goals: tomcat7:run

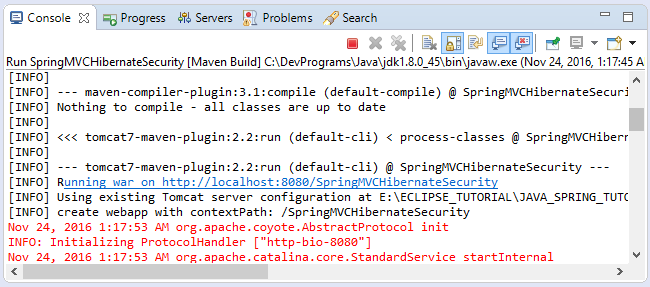

Running URL:

Enter URL to see user information, in case you have not login, the website will be redirected to the login page

http://localhost:8080/SpringMVCHibernateSecurity/userInfo

If you enter wrong information and click Submit, website will redirect to the login page.

In case of a successful login:

You can try with the URL:

http://localhost:8080/SpringMVCHibernateSecurity/admin

The above URL allows user as an ADMIN (ROLE-ADMIN) to access:

In the case of unlogin, website will redirect to the login page. If you login as a ROLE-USER, you will receive a notice of denying access (Access Denied)
