1. Introduction

The document is based on:

Eclipse 4.6 (NEON)
Spring MVC 4.x
Spring Security 4.x
Spring JDBC 4.x
(XML Config)

Before starting this tutorial, you should view documents:

Spring MVC for Beginners:

Spring MVC Tutorial for Beginners

Spring JDBC Tutorial

Spring JDBC

Here I instruct you to create a web login application using Spring MVC +Spring Security + Spring JDBC. Use XML for the configuration. You can reference another similar document using Annotation configuration at
Simple Login Java Web Application using Spring MVC, Spring Security and Spring JDBC

2. Demo

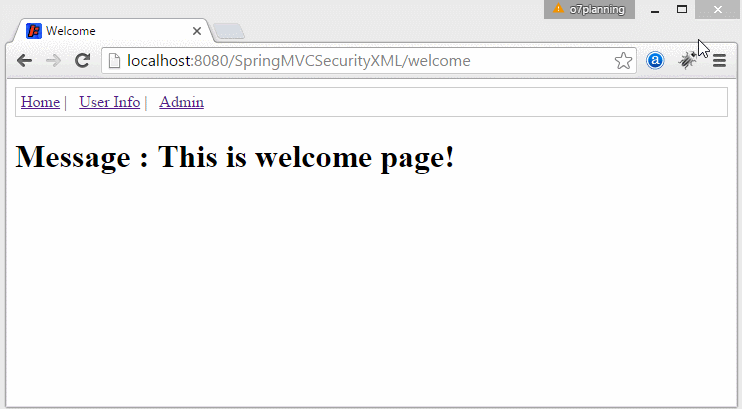

See Demo:

3. Preparing the database

ORACLE:

-- Create table
create table USERS
(
  USERNAME VARCHAR2(36) not null,
  PASSWORD VARCHAR2(36) not null,
  ENABLED  NUMBER(1) not null
) ;

alter table USERS
  add constraint USER_PK primary key (USERNAME);

---------------------

-- Create table
create table USER_ROLES
(
  ROLE_ID   VARCHAR2(50) not null,
  USERNAME  VARCHAR2(36) not null,
  USER_ROLE VARCHAR2(30) not null
) ;

alter table USER_ROLES
  add constraint USER_ROLE_PK primary key (ROLE_ID);

alter table USER_ROLES
  add constraint USER_ROLE_UK unique (USERNAME, USER_ROLE);

-------------------------------

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbuser1', '12345', 1);

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbadmin1', '12345', 1);


insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('1', 'dbuser1', 'USER');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('2', 'dbadmin1', 'ADMIN');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('3', 'dbadmin1', 'USER');

-------------------------------
Commit;

MySQL & SQL SERVER:

-- Create table
create table USERS
(
  USERNAME VARCHAR(36) not null,
  PASSWORD VARCHAR(36) not null,
  ENABLED  smallint not null
) ;

alter table USERS
  add constraint USER_PK primary key (USERNAME);

---------------------

-- Create table
create table USER_ROLES
(
  ROLE_ID   VARCHAR(50) not null,
  USERNAME  VARCHAR(36) not null,
  USER_ROLE VARCHAR(30) not null
) ;

alter table USER_ROLES
  add constraint USER_ROLE_PK primary key (ROLE_ID);

alter table USER_ROLES
  add constraint USER_ROLE_UK unique (USERNAME, USER_ROLE);

-------------------------------

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbuser1', '12345', 1);

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbadmin1', '12345', 1);


insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('1', 'dbuser1', 'USER');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('2', 'dbadmin1', 'ADMIN');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('3', 'dbadmin1', 'USER');

4. Create Project

File/New/Other...

Enter:

Group ID: org.o7planning
Artifact ID: SpringMVCSecurityXML
Package: org.o7planning.tutorial.springmvcsecurity

Project was created:

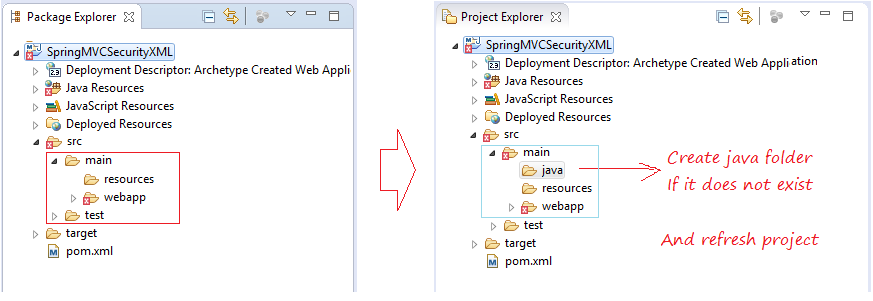

Do not worry about the error message when the Project has been created. The reason is that you do not declare the Servlet library.

Eclipse 4.5 (MARS) create Maven project structure may be wrong. You need to fix it.

Delete file index.jsp.

Sử dụng Java 7 hoặc 8:

Project Properties:

5. Configuring web.xml and Maven

Configure web.xml:

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns="http://java.sun.com/xml/ns/javaee"
 xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
          http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
 id="WebApp_ID" version="3.0">

 <display-name>Spring MVC Security</display-name>

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>


    <!-- Loads Spring Security config file -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>
            /WEB-INF/spring-security.xml,
            /WEB-INF/data-source-cfg.xml
        </param-value>
    </context-param>


    <!-- Spring MVC -->
    <servlet>
        <servlet-name>mvc-dispatcher</servlet-name>

        <servlet-class>
            org.springframework.web.servlet.DispatcherServlet
        </servlet-class>

        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>mvc-dispatcher</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>


    <!-- Spring Security Filter -->
    <filter>
        <filter-name>springSecurityFilterChain</filter-name>
        <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
    </filter>

    <filter-mapping>
        <filter-name>springSecurityFilterChain</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

</web-app>

Maven:

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
   http://maven.apache.org/maven-v4_0_0.xsd">

  <modelVersion>4.0.0</modelVersion>
  <groupId>org.o7planning</groupId>
  <artifactId>SpringMVCSecurityXML</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>SpringMVCSecurityXML Maven Webapp</name>
  <url>http://maven.apache.org</url>




    <properties>
        <!-- Generic properties -->
        <java.version>1.7</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    </properties>


    <repositories>
        <!-- Repository for ORACLE JDBC Driver -->
        <repository>
            <id>codelds</id>
            <url>https://code.lds.org/nexus/content/groups/main-repo</url>
        </repository>
    </repositories>

    <dependencies>

        <!-- Spring framework START -->
        <!-- http://mvnrepository.com/artifact/org.springframework/spring-core -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>4.2.5.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework/spring-web -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>4.2.5.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>4.2.5.RELEASE</version>
        </dependency>



        <!-- http://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>4.2.5.RELEASE</version>
        </dependency>


        <!-- Spring framework END -->


        <!-- Spring Security Artifacts - START -->
        <!-- http://mvnrepository.com/artifact/org.springframework.security/spring-security-web -->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-web</artifactId>
            <version>4.0.4.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework.security/spring-security-config -->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-config</artifactId>
            <version>4.0.4.RELEASE</version>
        </dependency>
        <!-- Spring Security Artifacts - END -->

        <!-- Jstl for jsp page -->
        <!-- http://mvnrepository.com/artifact/javax.servlet/jstl -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <!-- Servlet API -->
        <!-- http://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>

        <!-- JSP API -->
        <!-- http://mvnrepository.com/artifact/javax.servlet.jsp/jsp-api -->
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
            <scope>provided</scope>
        </dependency>

        <!-- MySQL JDBC driver -->
        <!-- http://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.34</version>
        </dependency>

        <!-- Oracle JDBC driver -->
        <dependency>
            <groupId>com.oracle</groupId>
            <artifactId>ojdbc6</artifactId>
            <version>11.2.0.3</version>
        </dependency>

        <!-- SQLServer JDBC driver (JTDS) -->
        <!-- http://mvnrepository.com/artifact/net.sourceforge.jtds/jtds -->
        <dependency>
            <groupId>net.sourceforge.jtds</groupId>
            <artifactId>jtds</artifactId>
            <version>1.3.1</version>
        </dependency>


    </dependencies>

    <build>
        <finalName>SpringMVCSecurityXML</finalName>
        <plugins>

            <!-- Config: Maven Tomcat Plugin -->
            <!-- http://mvnrepository.com/artifact/org.apache.tomcat.maven/tomcat7-maven-plugin -->
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <!-- Config: contextPath and Port (Default: /SpringMVCSecurityXML : 8080) -->
                <!--
                <configuration>
                    <path>/</path>
                    <port>8899</port>
                </configuration>
                -->
            </plugin>
        </plugins>
    </build>

</project>

6. Configure Spring MVC & Security

Configure Spring MVC:

mvc-dispatcher-servlet.xml

<beans xmlns="http://www.springframework.org/schema/beans"
  xmlns:context="http://www.springframework.org/schema/context"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="
      http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
      http://www.springframework.org/schema/context
      http://www.springframework.org/schema/context/spring-context-4.1.xsd">

  <context:component-scan base-package="org.o7planning.tutorial.springmvcsecurity.controller" />
  <context:annotation-config />

  <bean
    class="org.springframework.web.servlet.view.InternalResourceViewResolver">
    <property name="prefix">
      <value>/WEB-INF/pages/</value>
    </property>
    <property name="suffix">
      <value>.jsp</value>
    </property>
  </bean>

</beans>

Configure Datasouce:

data-source-cfg.xml (For ORACLE)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://www.springframework.org/schema/beans
  http://www.springframework.org/schema/beans/spring-beans-4.1.xsd">


  <bean id="myDataSource"
      class="org.springframework.jdbc.datasource.DriverManagerDataSource">

      <property name="driverClassName" value="oracle.jdbc.driver.OracleDriver" />
      <property name="url" value="jdbc:oracle:thin:@localhost:1521:db11g" />
      <property name="username" value="simplehr" />
      <property name="password" value="12345" />
  </bean>


</beans>

data-source-cfg.xml (For MYSQL)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-4.1.xsd">


    <bean id="myDataSource"
        class="org.springframework.jdbc.datasource.DriverManagerDataSource">

       <property name="driverClassName" value="com.mysql.jdbc.Driver" />
       <property name="url" value="jdbc:mysql://localhost:3306/simplehr" />
       <property name="username" value="root" />
       <property name="password" value="12345" />
    </bean>

</beans>

data-source-cfg.xml (For SQL SERVER)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-4.1.xsd">


   <bean id="myDataSource"
       class="org.springframework.jdbc.datasource.DriverManagerDataSource">


      <!-- Using JDBC Driver: JTDS -->
      <property name="driverClassName" value="net.sourceforge.jtds.jdbc.Driver" />
      <property name="url"
          value="jdbc:jtds:sqlserver://localhost:1433/simplehr;instance=SQLEXPRESS" />
      <property name="username" value="sa" />
      <property name="password" value="12345" />
  </bean>



</beans>

Configure Spring Security:

spring-security.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/security"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:beans="http://www.springframework.org/schema/beans"
    xsi:schemaLocation="http://www.springframework.org/schema/security
      http://www.springframework.org/schema/security/spring-security-4.0.xsd
      http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-4.1.xsd">


    <http use-expressions="true">
        <csrf disabled="true"/>

        <intercept-url pattern="/" access="permitAll()" />
        <intercept-url pattern="/welcome" access="permitAll()" />
        <intercept-url pattern="/login" access="permitAll()" />
        <intercept-url pattern="/logout" access="permitAll()" />


        <intercept-url pattern="/userInfo"
            access="hasAnyRole('ROLE_USER', 'ROLE_ADMIN')" />
        <intercept-url pattern="/admin" access="hasRole('ROLE_ADMIN')" />
        <intercept-url pattern="/other/**" access="isAuthenticated()" />

        <access-denied-handler error-page="/403" />

        <form-login login-page='/login' login-processing-url="/j_spring_security_check"
            default-target-url="/userInfo" always-use-default-target="false"
            authentication-failure-url="/login?error=true" username-parameter="username"
            password-parameter="password" />

        <logout logout-url="/logout" logout-success-url="/logoutSuccessful"
            delete-cookies="JSESSIONID" invalidate-session="true" />

    </http>

    <authentication-manager>
        <authentication-provider>
            <user-service>
                <user name="user1" password="12345" authorities="ROLE_USER" />
                <user name="admin1" password="12345" authorities="ROLE_USER, ROLE_ADMIN" />
            </user-service>
        </authentication-provider>



        <!-- authentication from database -->
        <authentication-provider>
            <jdbc-user-service data-source-ref="myDataSource"
                users-by-username-query="select username,password, enabled from users where username=?"
                authorities-by-username-query="Select username, concat('ROLE_',user_role) user_role from user_roles where username=?" />
        </authentication-provider>

    </authentication-manager>

</beans:beans>

Properties of <login-form>:

7. Spring MVC Controller

MainController.java

package org.o7planning.tutorial.springmvcsecurity.controller;

import java.security.Principal;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class MainController {

    @RequestMapping(value = { "/", "/welcome" }, method = RequestMethod.GET)
    public String welcomePage(Model model) {
        model.addAttribute("title", "Welcome");
        model.addAttribute("message", "This is welcome page!");
        return "welcomePage";
    }

    @RequestMapping(value = "/admin", method = RequestMethod.GET)
    public String adminPage(Model model) {
        return "adminPage";
    }

    @RequestMapping(value = "/login", method = RequestMethod.GET)
    public String loginPage(Model model ) {

        return "loginPage";
    }

    @RequestMapping(value = "/logoutSuccessful", method = RequestMethod.GET)
    public String logoutSuccessfulPage(Model model) {
        model.addAttribute("title", "Logout");
        return "logoutSuccessfulPage";
    }

    @RequestMapping(value = "/userInfo", method = RequestMethod.GET)
    public String userInfo(Model model, Principal principal) {

        // After user login successfully.
        String userName = principal.getName();

        System.out.println("User Name: "+ userName);

        return "userInfoPage";
    }

    @RequestMapping(value = "/403", method = RequestMethod.GET)
    public String accessDenied(Model model, Principal principal) {

        if (principal != null) {
            model.addAttribute("message", "Hi " + principal.getName()
                    + "<br> You do not have permission to access this page!");
        } else {
            model.addAttribute("msg",
                    "You do not have permission to access this page!");
        }
        return "403Page";
    }
}

8. JSP Pages

_menu.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>

<div style="border: 1px solid #ccc;padding:5px;margin-bottom:20px;">

  <a href="${pageContext.request.contextPath}/welcome">Home</a>

  | &nbsp;

   <a href="${pageContext.request.contextPath}/userInfo">User Info</a>

  | &nbsp;

  <a href="${pageContext.request.contextPath}/admin">Admin</a>

  <c:if test="${pageContext.request.userPrincipal.name != null}">

     | &nbsp;
     <a href="${pageContext.request.contextPath}/logout">Logout</a>

  </c:if>

</div>

403Page.jsp

<%@page session="false"%>
<html>
<head>
<title>Access Denied</title>
</head>
<body>
<jsp:include page="_menu.jsp"/>

    <h3 style="color:red;">${message}</h3>
</body>
</html>

adminPage.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@page session="true"%>

<html>
<head>
<title>${title}</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />

    <h2>Admin Page</h2>


    <h3>Welcome : ${pageContext.request.userPrincipal.name}</h3>

    <b>This is protected page!</b>
</body>
</html>

loginPage.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>

<html>
<head><title>Login</title></head>
<body>
   <jsp:include page="_menu.jsp" />


   <h1>Login</h1>

     <!-- /login?error=true -->
     <c:if test="${param.error == 'true'}">
         <div style="color:red;margin:10px 0px;">

                Login Failed!!!<br />
                Reason :  ${sessionScope["SPRING_SECURITY_LAST_EXCEPTION"].message}

         </div>
    </c:if>

   <h3>Enter user name and password:</h3>

   <form name='f' action="${pageContext.request.contextPath}/j_spring_security_check" method='POST'>
      <table>
         <tr>
            <td>User:</td>
            <td><input type='text' name='username' value=''></td>
         </tr>
         <tr>
            <td>Password:</td>
            <td><input type='password' name='password' /></td>
         </tr>
         <tr>
            <td><input name="submit" type="submit" value="submit" /></td>
         </tr>
      </table>
  </form>
</body>
</html>

logoutSuccessfulPage.jsp

<html>
<head>
<title>Logout</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />

    <h1>Logout Successful!</h1>
</body>
</html>

userInfoPage.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@page session="true"%>

<html>
<head>
<title>User Info</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />

    <h2>User Info Page</h2>

    <h3>Welcome : ${pageContext.request.userPrincipal.name}</h3>

    <b>This is protected page!</b>
</body>
</html>

welcomePage.jsp

<%@page session="false"%>
<html>
<head>
<title>${title}</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />


    <h1>Message : ${message}</h1>
</body>
</html>

9. Configure and run the application

In the first, before running the application you need to build the project.

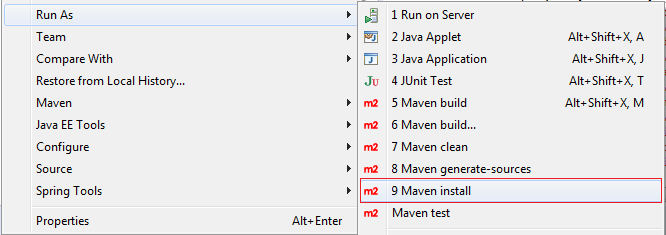

Right-click the project and select:

Run As/Maven install

Run configurations:

Enter:

Name: Run SpringMVCSecurityXML
Base directory: ${workspace_loc:/SpringMVCSecurityXML}
Goals: tomcat7:run

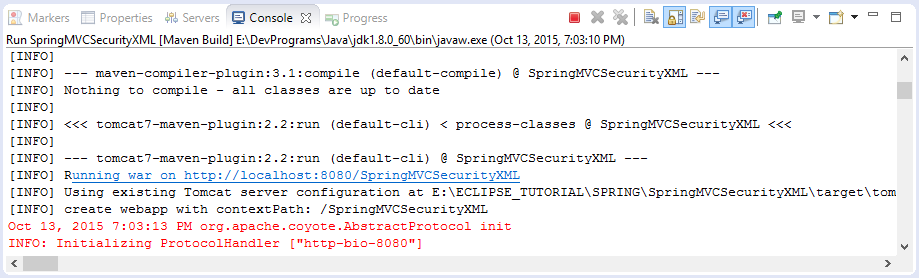

Running URL:

Enter URL to see user information, in case you have not login, the website will be redirected to the login page

http://localhost:8080/SpringMVCSecurityXML/userInfo

If you enter wrong information and click Submit, website will redirect to the login page.

In case of a successful login:

You can try with the URL:

http://localhost:8080/SpringMVCSecurityXML/admin

The above URL allows user as an ADMIN (ROLE-ADMIN) to access:

In the case of unlogin, website will redirect to the login page. If you login as a ROLE-USER, you will receive a notice of denying access (Access Denied)

10. Spring MVC Shopping Cart Application

Java Shopping Cart Application using:
Create a Java Shopping Cart Web Application using Spring MVC and Hibernate
