Sample Oracle Database for Learning SQL

  1. Introduction
  2. Download Script
  3. Run Script
  4. Overview LearningSQL Database
  5. The structure of the tables

1. Introduction

LearningSQL is a small database, used as an example in the instructions of learning SQL on the website of o7planning. There are 3 version on Databases:
  • Oracle
  • MySQL
  • SQLServer.
In this document, I will instruct you to create this database on Oracle.

This database is used in the documentation to learn SQL (Oracle) at:

2. Download Script

Download script at:
Direct
Mediafire
With Oracle, you just need to care about the file:
  • LearningSQL-Oracle-Script.sql

3. Run Script

There are two ways to create SCHEMA: LearningSQL

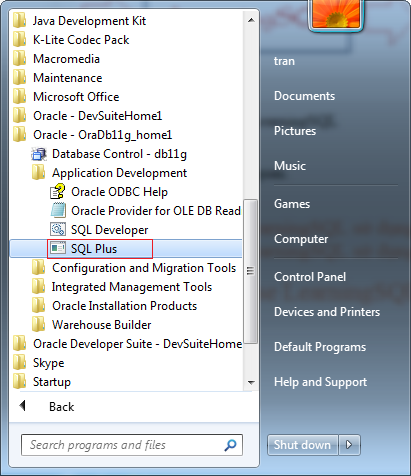

  1. Using SQL Plus
  2. Using visual tools.

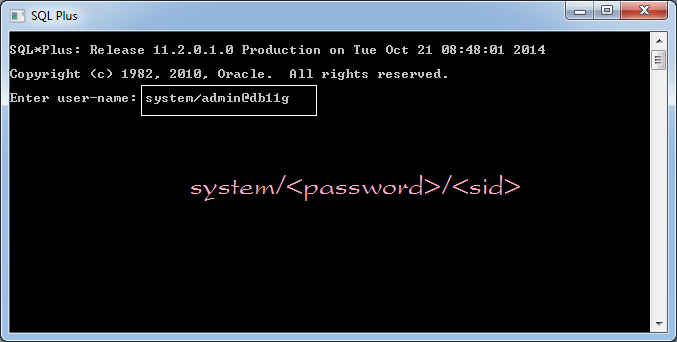

Create SCHEMA LearningSQL using SQL Plus

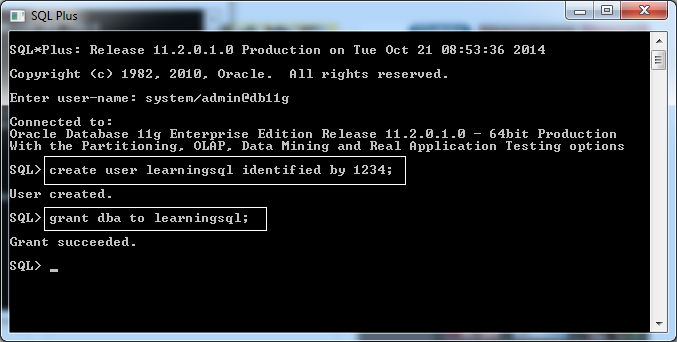

Run 2 commands:
-- Create Schema named learningsql,  password 1234
Create user learningsql identified by 1234;

-- For learning purposes:
-- Grant highest privilege DBA (DB Admin) for the newly created user.
grant dba to learningsql;

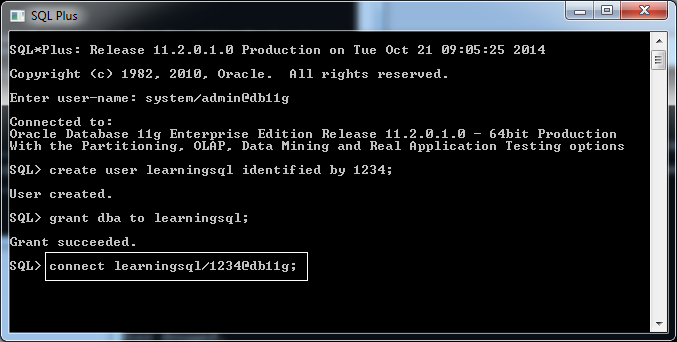

Connect to the newly created SCHEMA:
-- Connect to Schema
-- Syntax: connect <user>/<pass>@<sid>

connect learningsql/1234@db11g;
Run Script:
-- Run Script file in SQL Plus

@F:\LEARNING_SQL\LearningSQL-Oracle-Script.sql

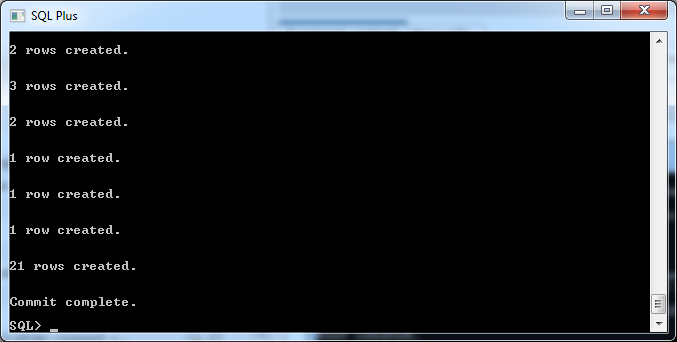

Script run successfully:
Create SCHEMA LearningSQL using visual tool

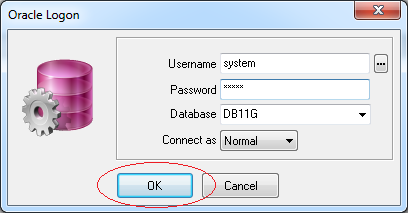

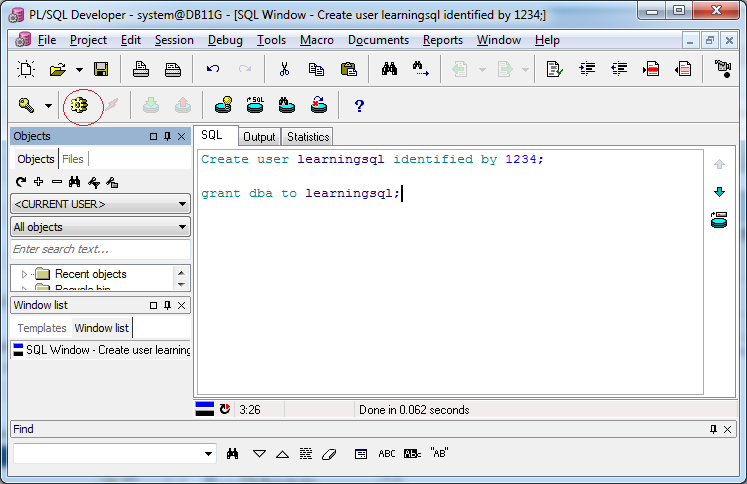

On the visual tools (Here I use PL/SQL Developer), connected to the user with DBA authority (for example: system).
Execute script to create schema: learningsql.
-- Create schema named learningsql

Create user learningsql identified by 1234;

-- For learning purposes:
-- Grant highest privilege DBA (DB Admin) for the newly created user.

grant dba to learningsql;

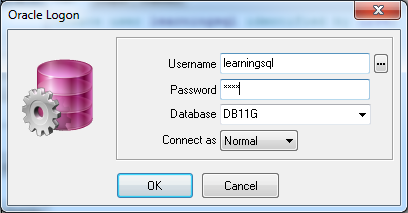

Connect to Schema you just created:
Copy content of LearningSQL-Oracle-Script.sql into PL/SQL Developer and execute.
Create Schema success.

4. Overview LearningSQL Database

LearningSQL is a small database simulating the data of a bank:
Table Name
Description
ACCOUNT
The table saves the bank accounts. Each of customer can register multiple accounts each of which corresponds to a product type provided by the bank.
(See more: PRODUCT)
ACC_TRANSACTION
The table saves the transaction history between the bank and a certain account.
BRANCH
The branch of bank.
BUSSINESS
CUSTOMER
The table of customers
DEPARTMENT
The department table of bank
EMPLOYEE
The employee table of bank
OFFICER
PRODUCT
The products and services of bank, such as:
  • Savings account
  • The business lines of credit
  • The loans to small business
  • .....
PRODUCT_TYPE
The types of products and services, such as:
  • Bank acounts
  • Loans to individual and business
  • The provider of insurance.

5. The structure of the tables

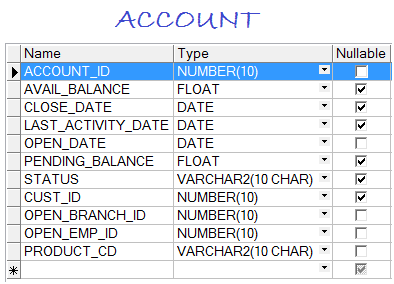

ACCOUNT

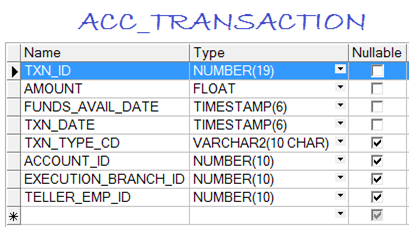

ACC_TRANSACTION

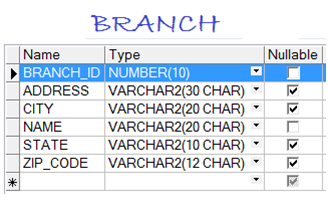

BRANCH

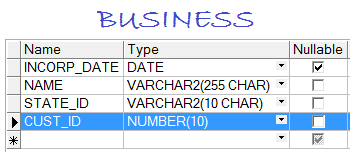

BUSINESS

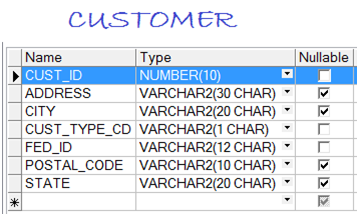

CUSTOMER

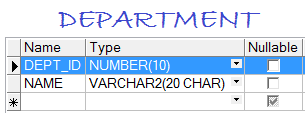

DEPARTMENT

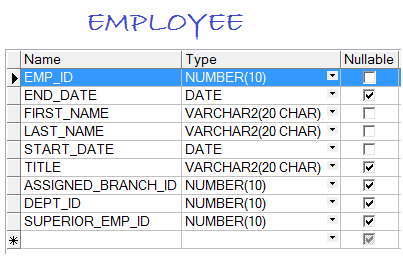

EMPLOYEE

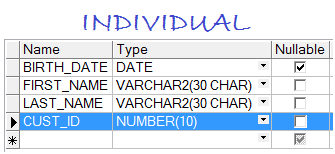

INDIVIDUAL

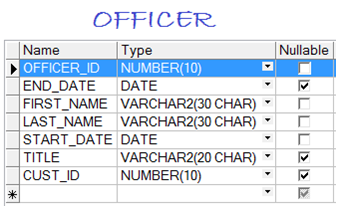

OFFICER

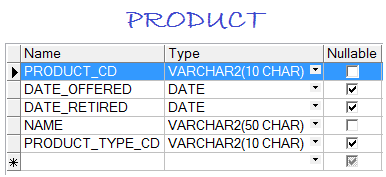

PRODUCT

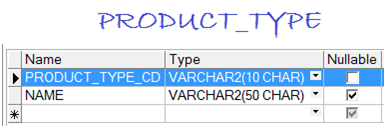

PRODUCT_TYPE
