1- Introduction

This document is based on:
  • Eclipse 4.4 (LUNA) (or newer)
  • BIRT 4.4

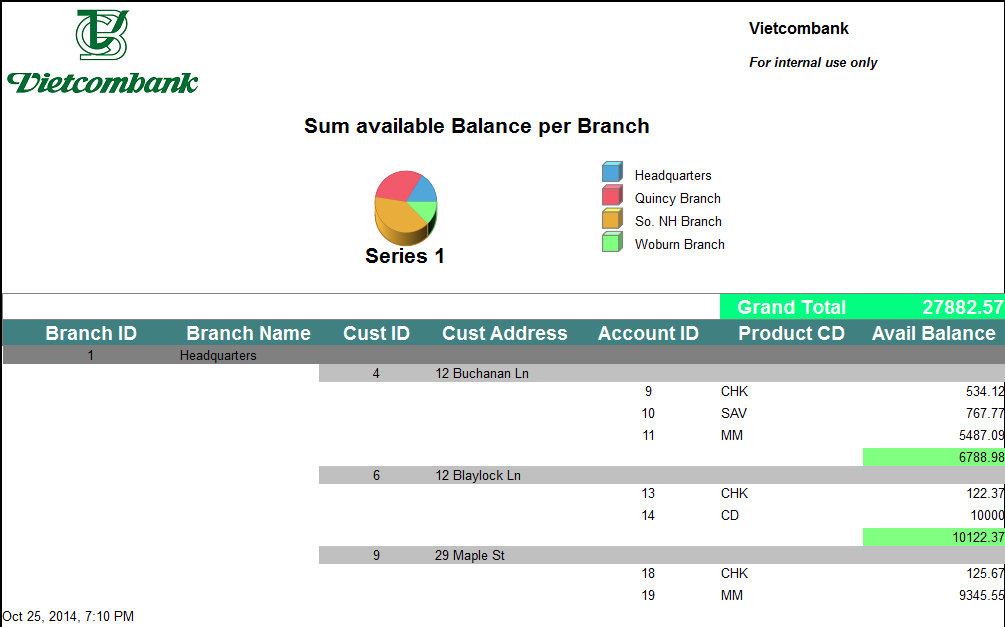

2- Reporting interface after project completion

This is a photo of report will be made in this document:
Raw data:
First of all, we need to understand some professional knowledge:
  • A CUSTOMER can create one or more ACCOUNT in a branch of some bank.
  • Each account corresponds with a service PRODUCT provided by the bank.
  • Each account has an AVAILABLE BALANCE.

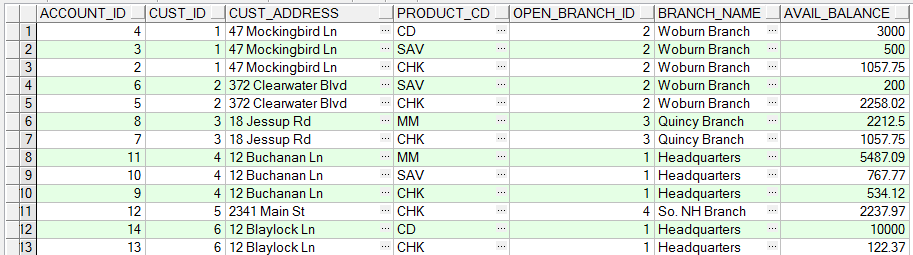

For convenience, you can look at the following raw data.
** SQL **

Select Acc.Account_Id
    ,Acc.Cust_Id
    ,Cus.Address        Cust_Address
    ,Acc.Product_Cd -- Product Code (Service of Bank)
    ,Acc.Open_Branch_Id -- Branch (of Bank)
    ,Bra.Name           Branch_Name
    ,Acc.Avail_Balance -- Available Balance
From   Account  Acc
    ,Customer Cus
    ,Branch   Bra
Where  Acc.Cust_Id = Cus.Cust_Id
And    Acc.Open_Branch_Id = Bra.Branch_Id;

3- The installation requires

BIRT Plugin:
For programming BIRT report, you need to install BIRT tools into Eclipse. You can see the instructions at:
Sample database:
LearningSQL is a small database used commonly in the instruction of o7planning. The instruction of programming BIRT report also uses data on this Database. You need to create this Database (It takes only 5 minutes) as the following instruction:
JDBC Driver library for Databases (OracleMySQLSQLServer) and its use:
Depending on the type of Database, you use the equivalent JDBC Driver library of that Database (It takes you 3 minutes to finish it), look at the instruction of download at:

4- Create BIRT Project

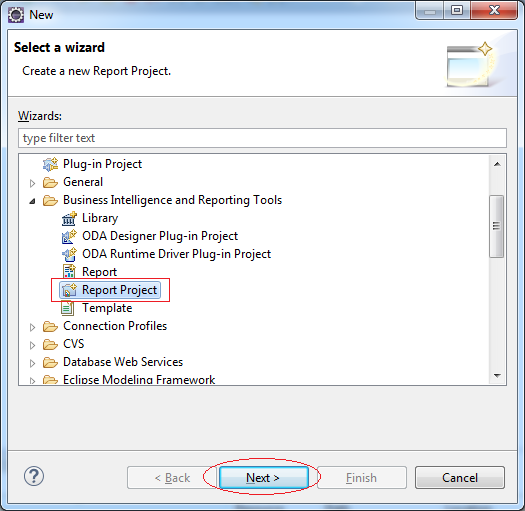

In Eclipse select:
  • File/New/Other...

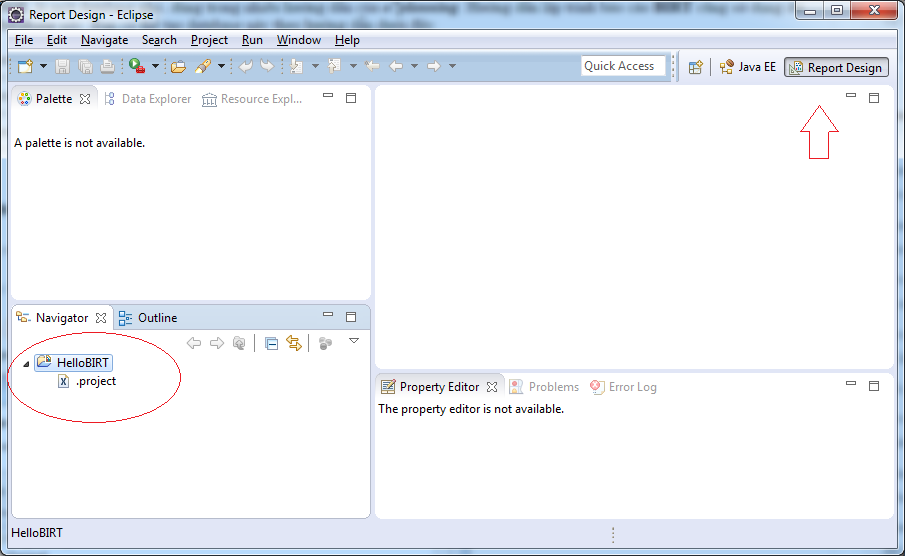

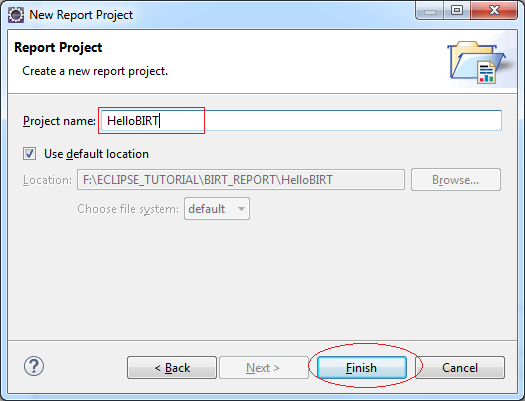

Enter Project name:
  • HelloBIRT

5- Create Data Source

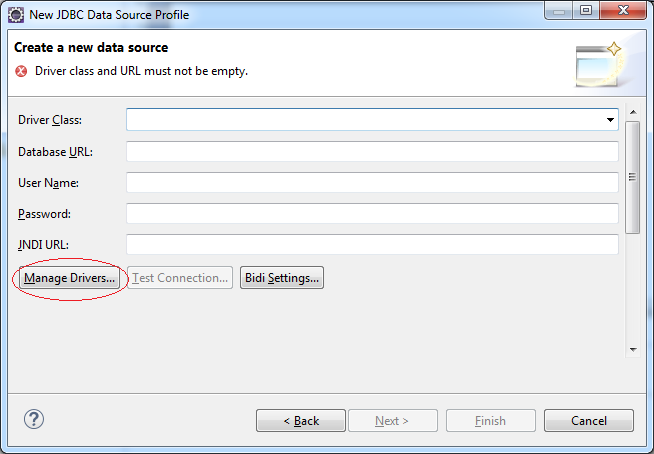

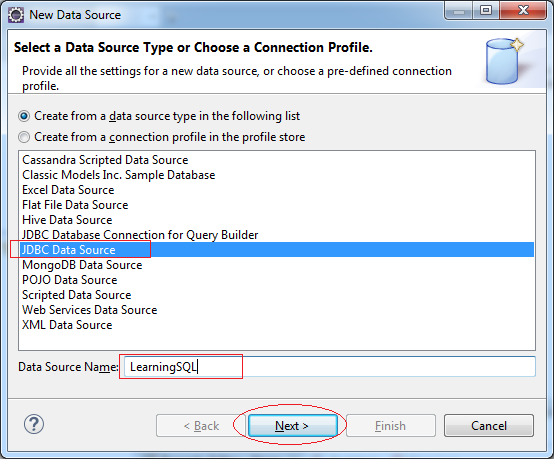

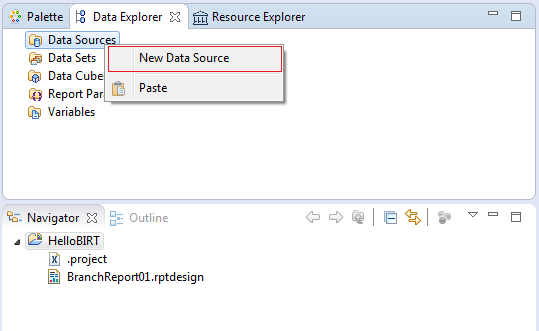

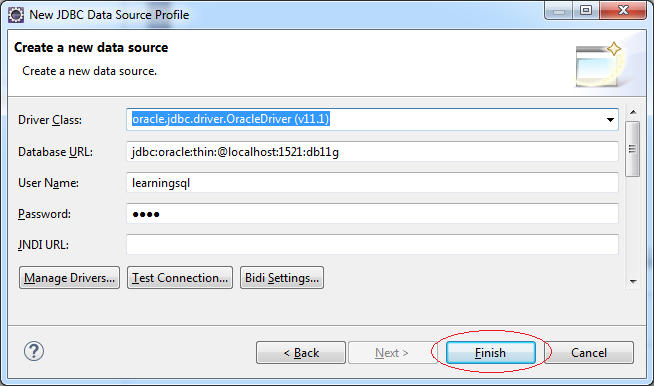

Create a Data Source from JDBC, or XML,... In this document, we will create Data Source from JDBC connected with LearningSQL database.
Here I connect JDBC with LearningSQL database (on DB Oracle). However, other Database manipulation is carried out alike.

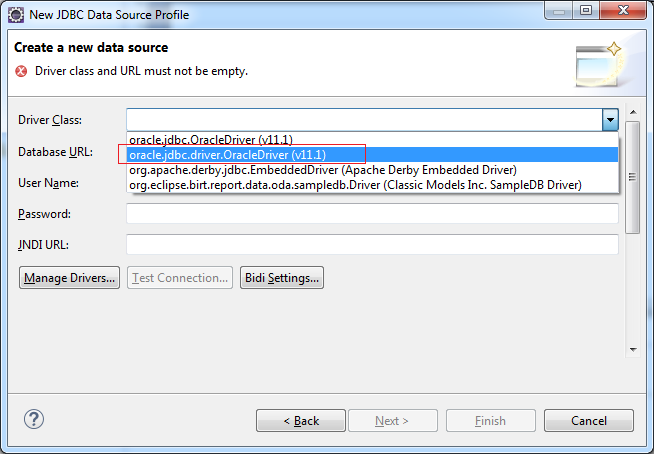

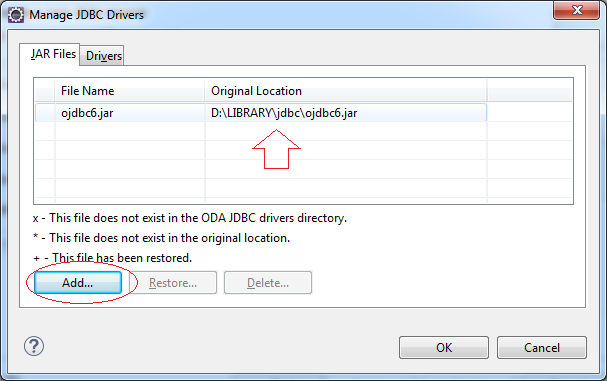

ojdbc6.jar is a JDBC Driver library for Oracle
See more:

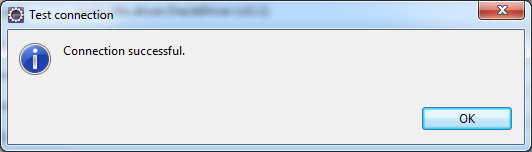

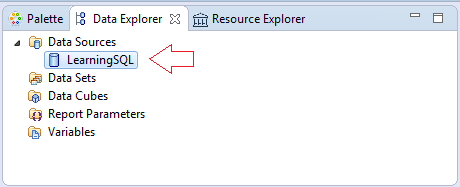

Check whether database LearningSQL has been connected or not.

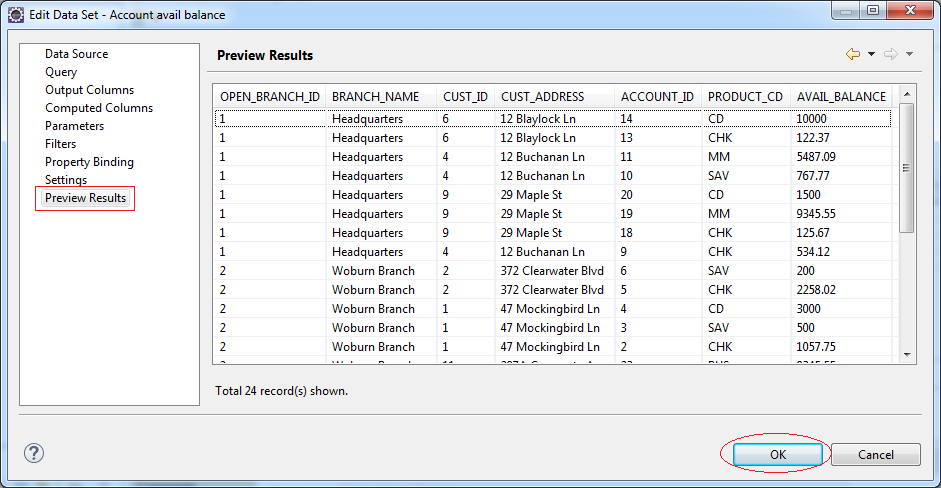

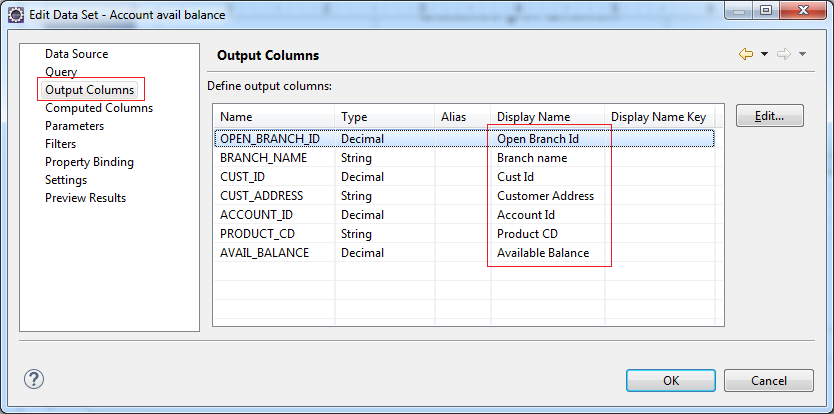

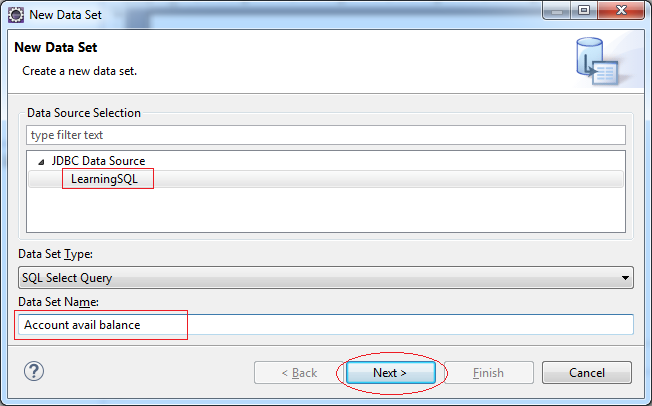

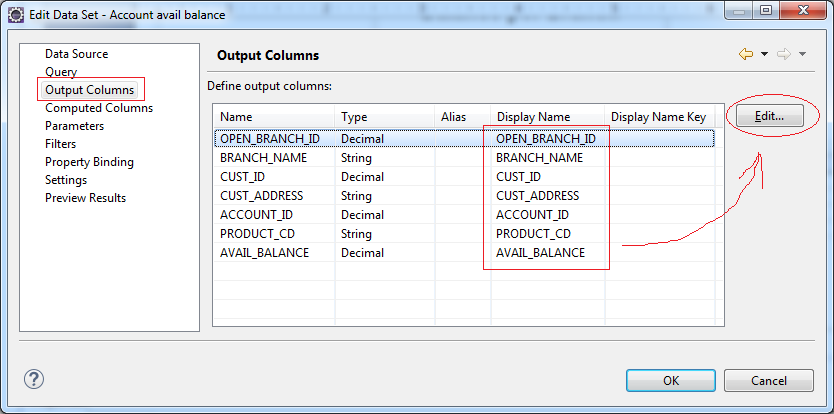

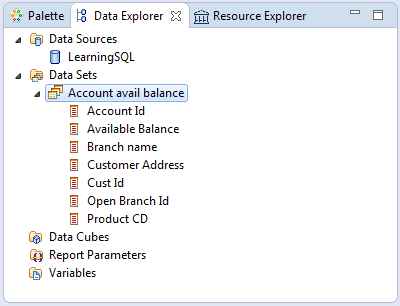

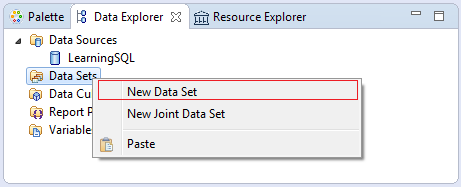

6- Create dataset

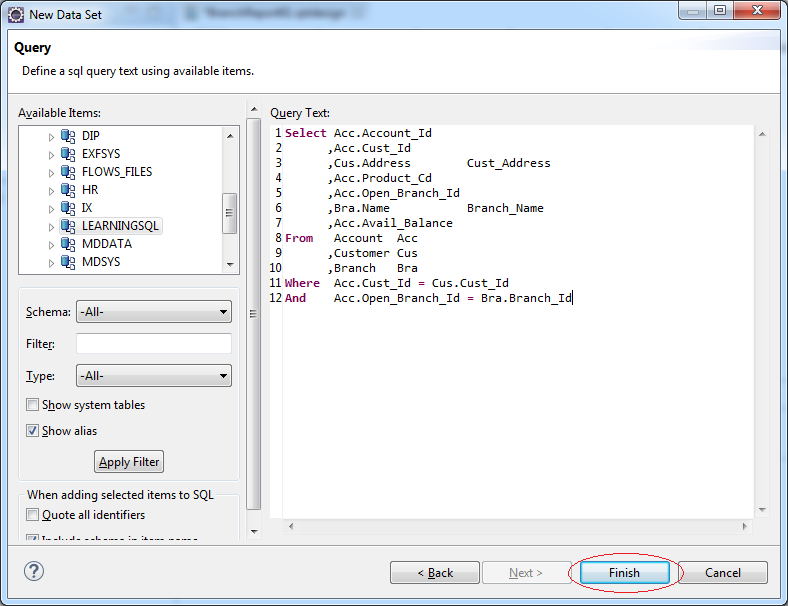

Enter:
  • Data Set Name: Account avail balance

Select Acc.Open_Branch_Id
     ,Bra.Name           Branch_Name
     ,Acc.Cust_Id
     ,Cus.Address        Cust_Address
     ,Acc.Account_Id
     ,Acc.Product_Cd
     ,Acc.Avail_Balance
From   Account  Acc
     ,Customer Cus
     ,Branch   Bra
Where  Acc.Cust_Id = Cus.Cust_Id
And    Acc.Open_Branch_Id = Bra.Branch_Id
Order  By Acc.Open_Branch_Id

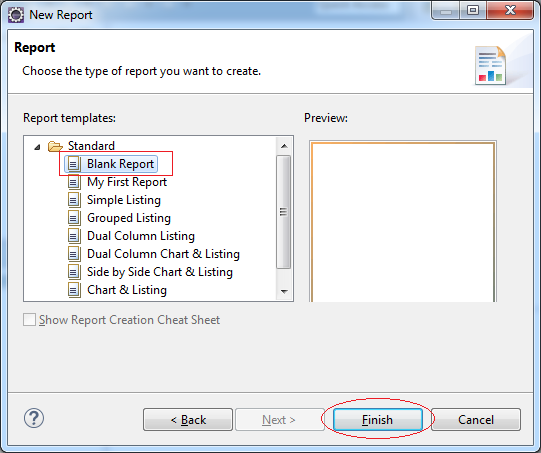

7- Create new Report

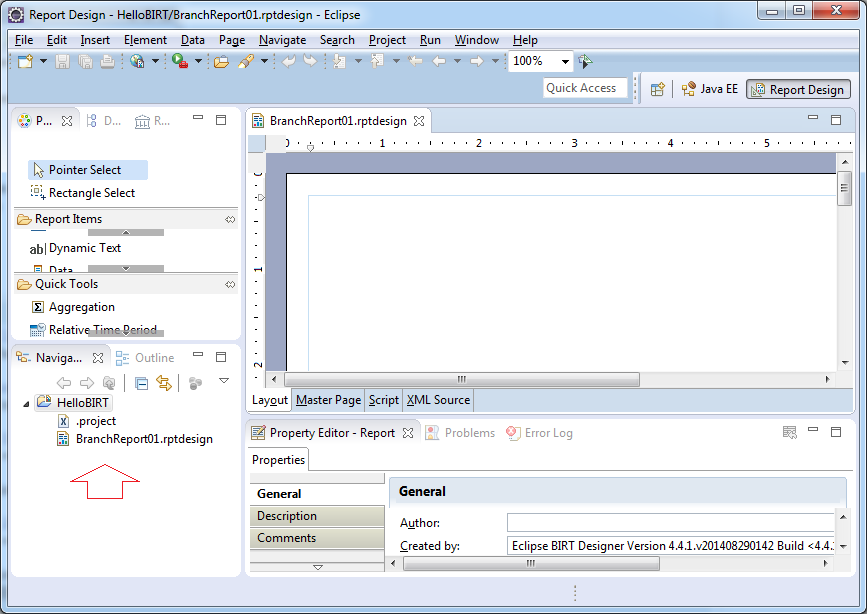

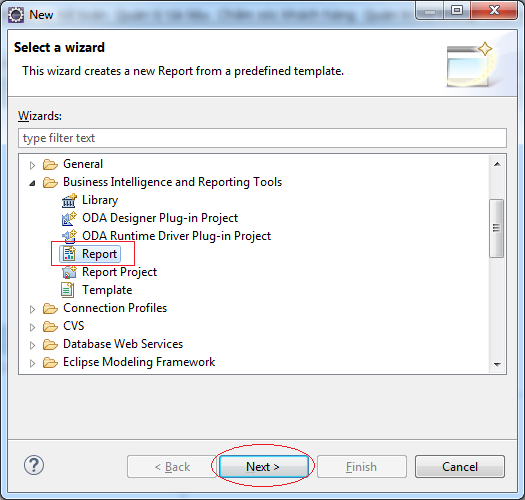

In Eclipse select:
  • File/New/Other...

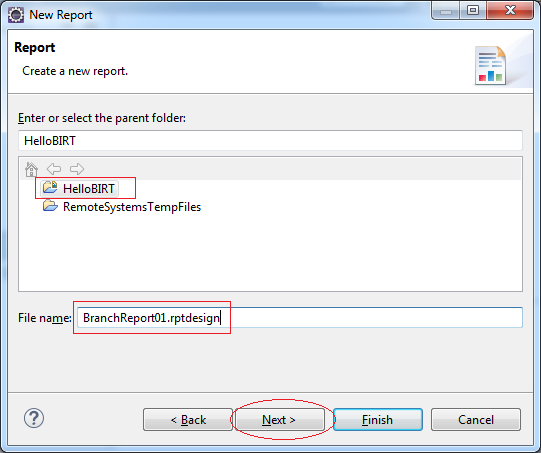

  • File name: BranchReport01.rptdesign

8- Configuring the size of the report

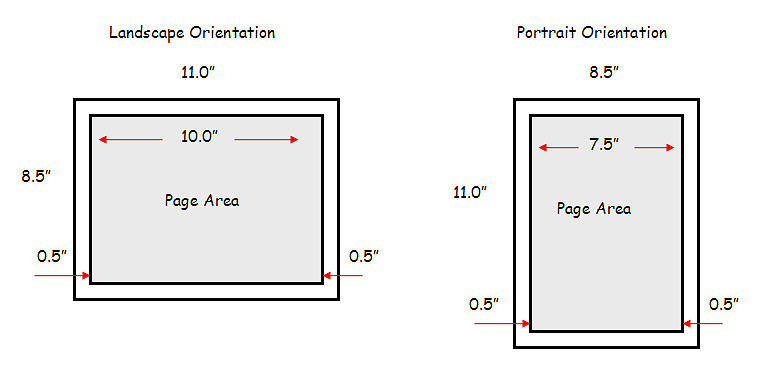

We create a default report whose size is the same as that of an A4 paper.

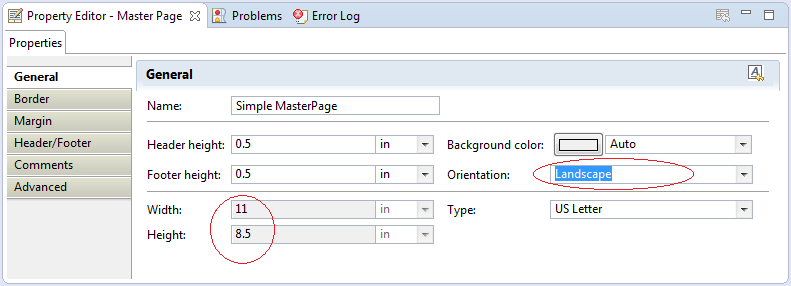

Select property:
  • Orientation: Landscape

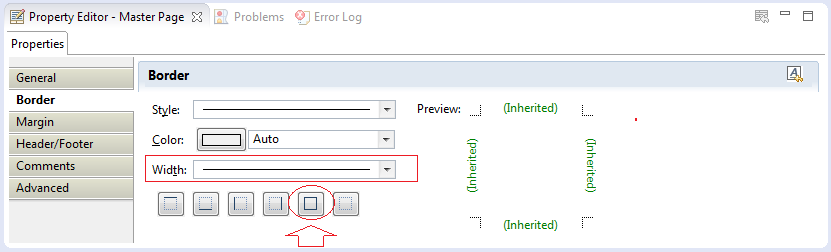

Configuring Border:
You can also change other properties.

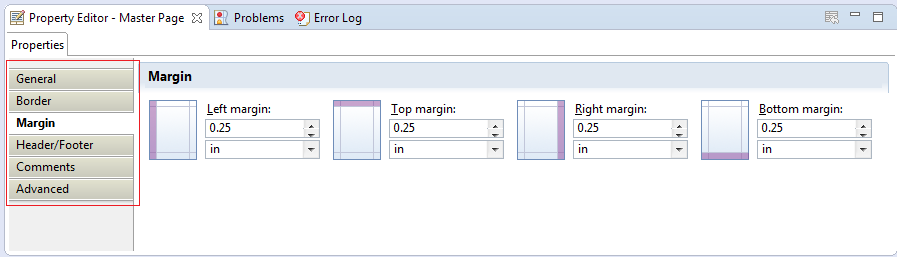

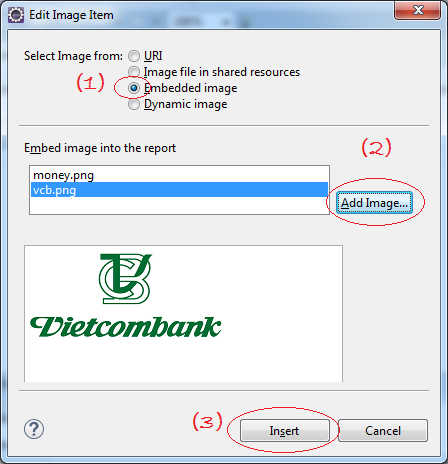

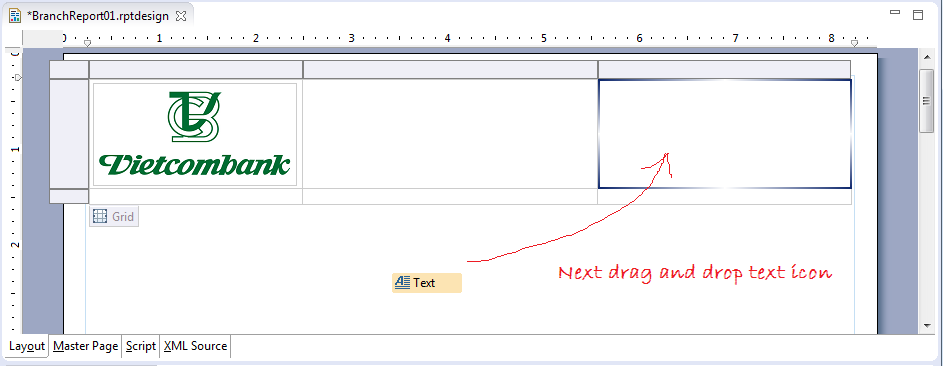

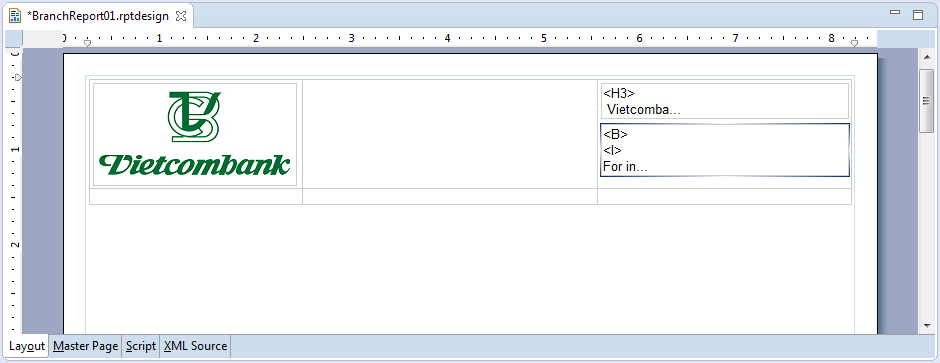

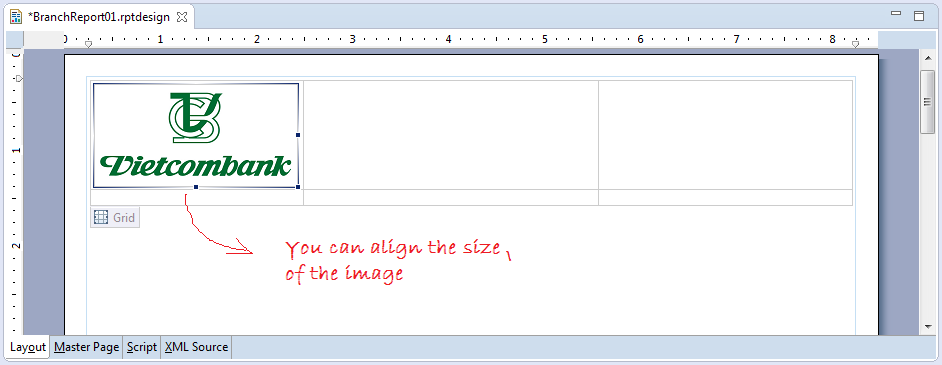

9- Interface Design (Header)

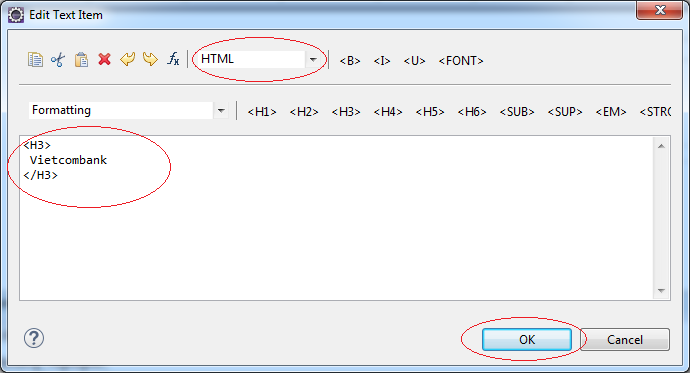

<H3>
Vietcombank
</H3>

<B>
<I>
For internal use only
</I>
</B>

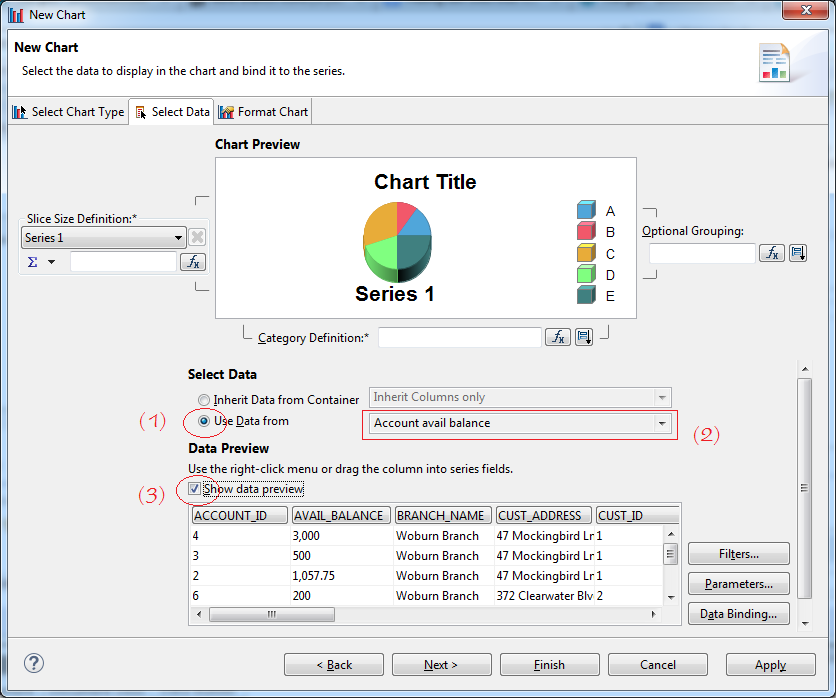

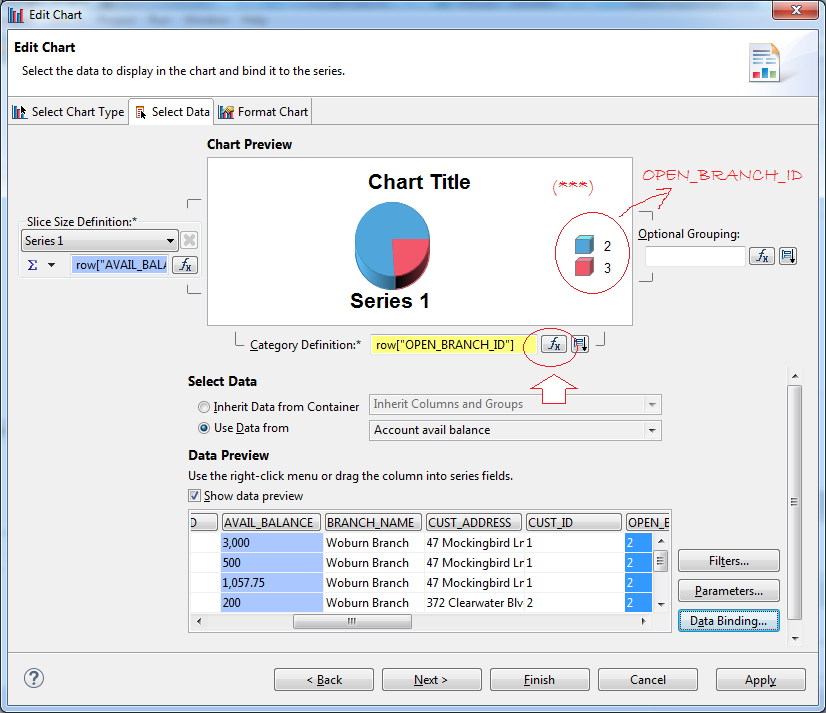

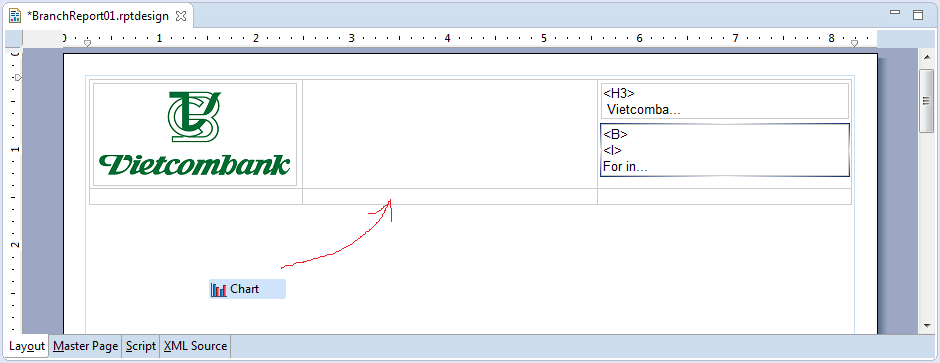

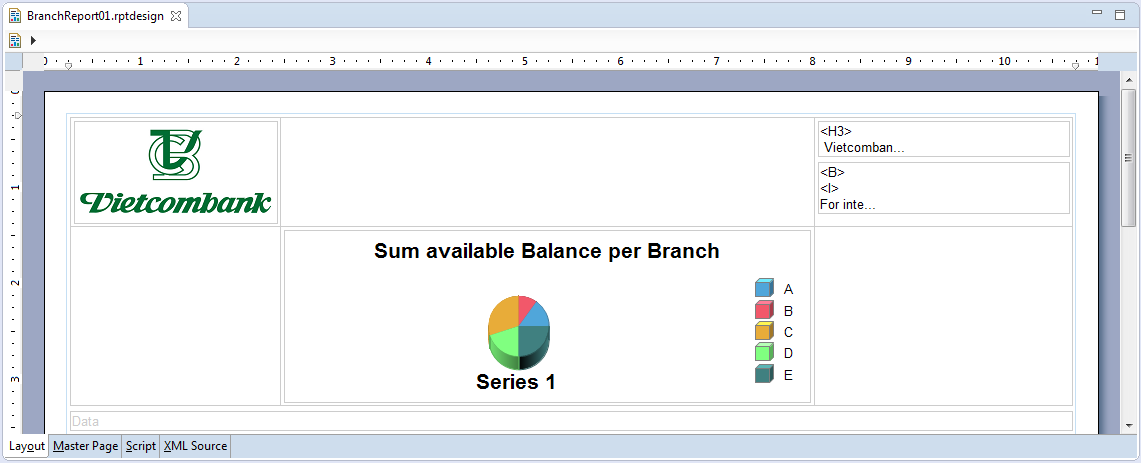

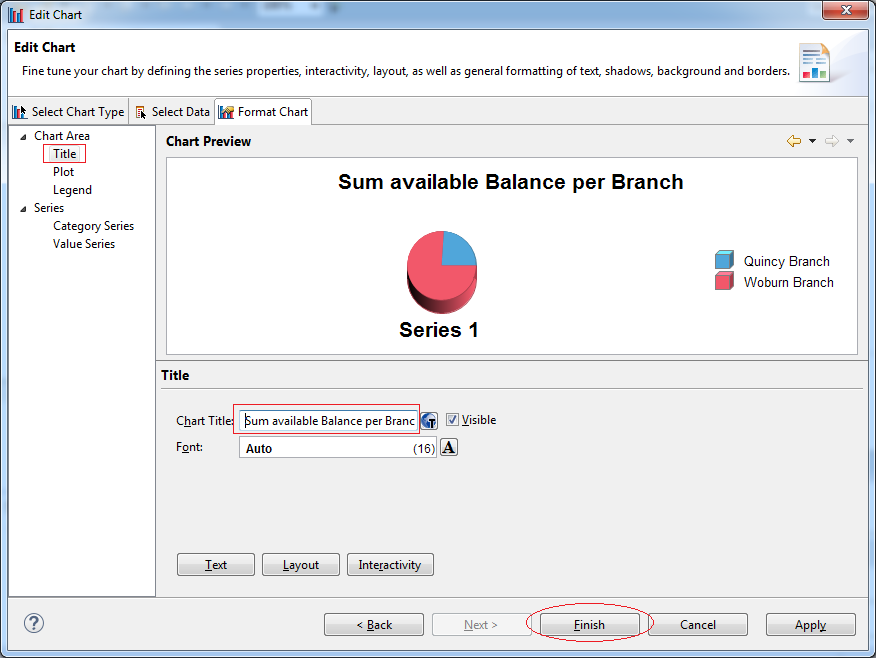

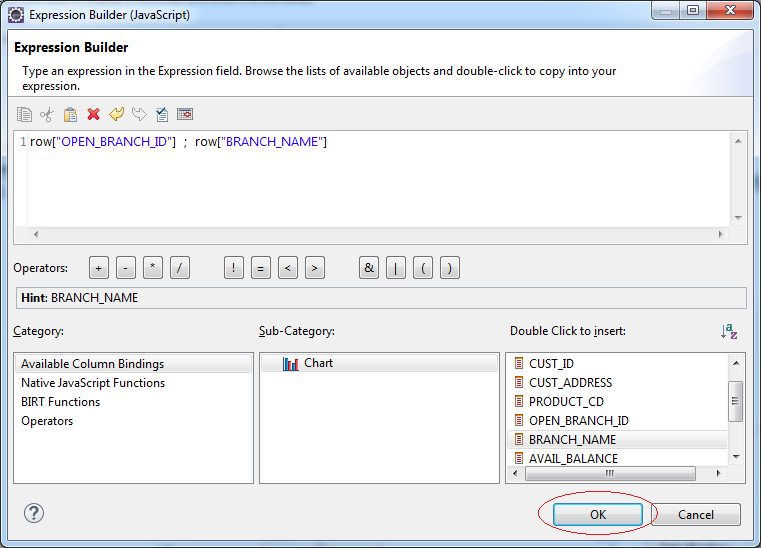

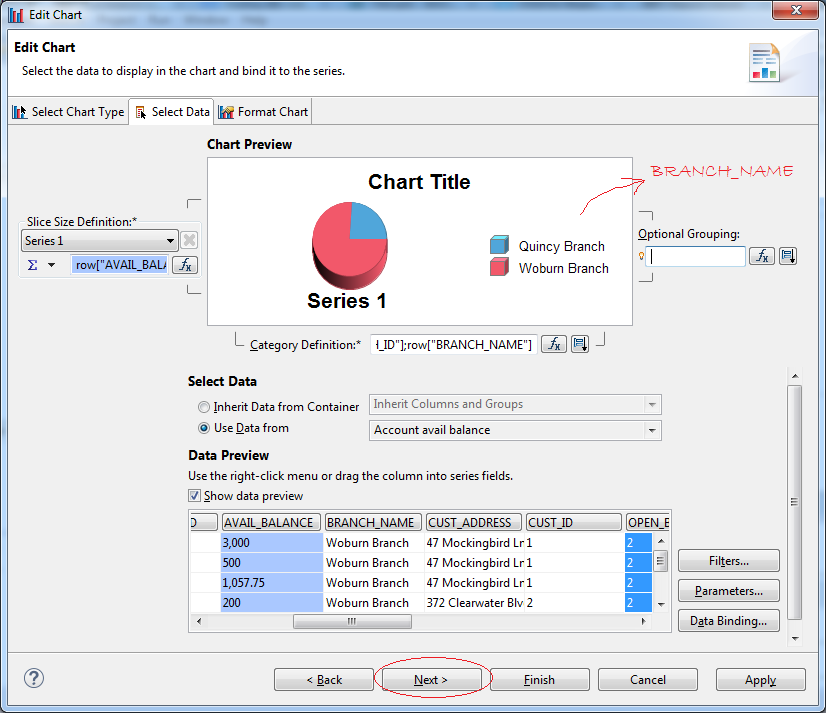

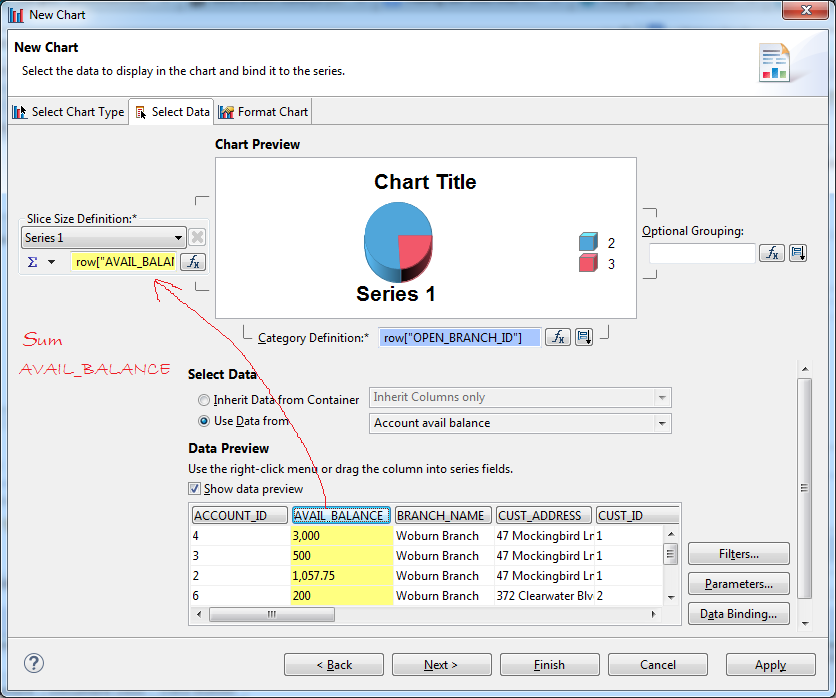

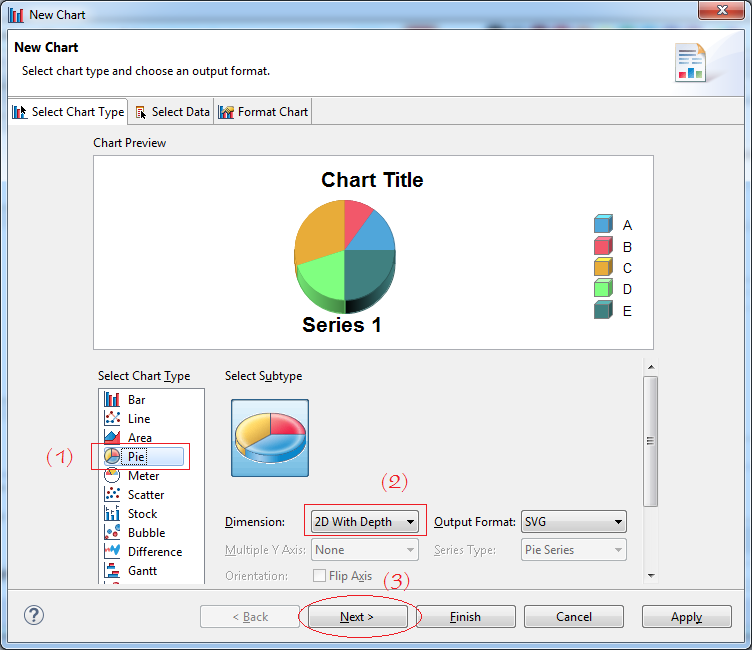

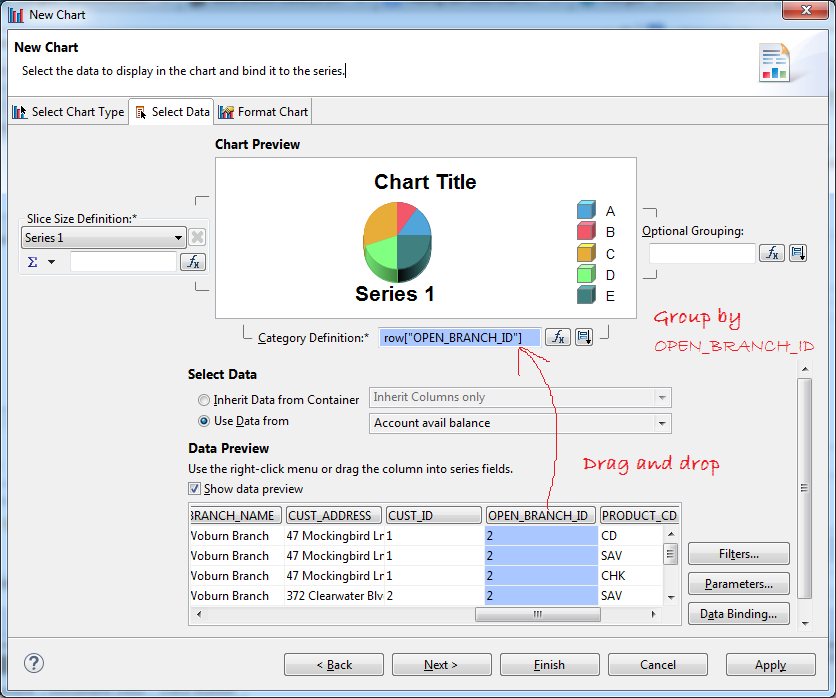

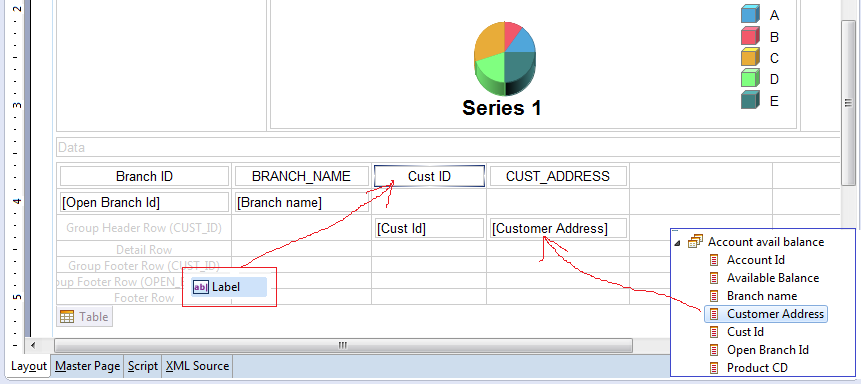

10- Design charts

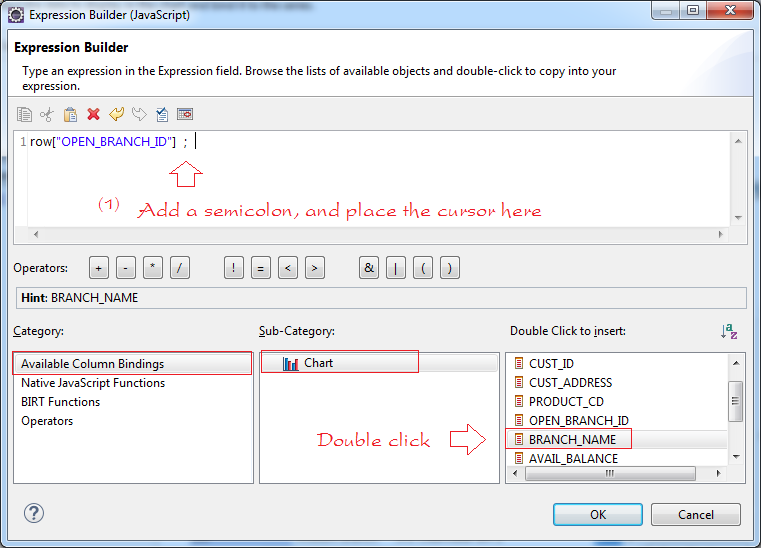

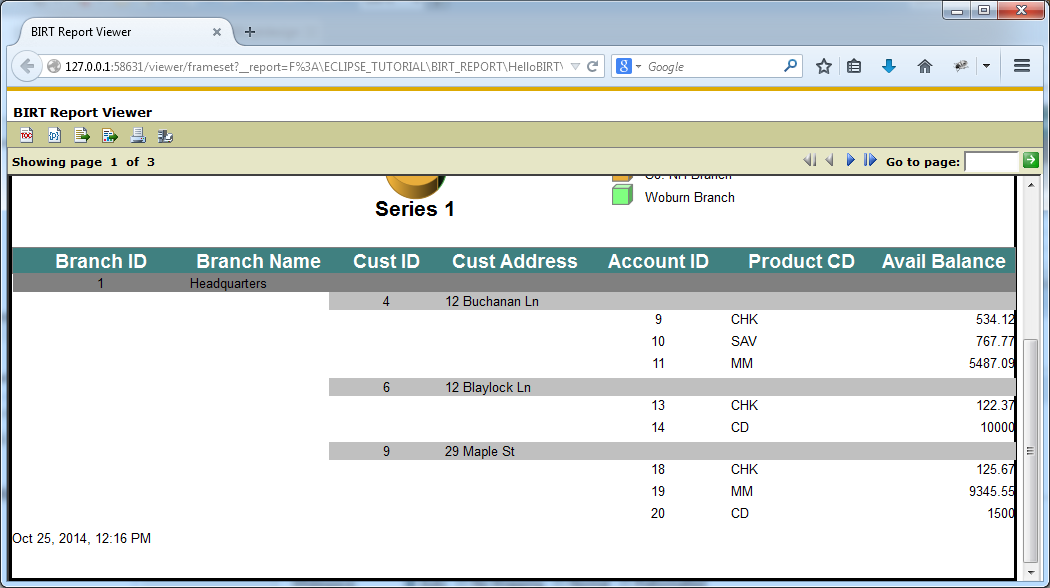

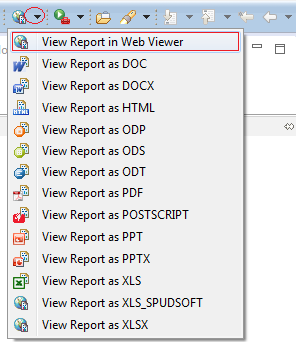

11- Run reports for the first time

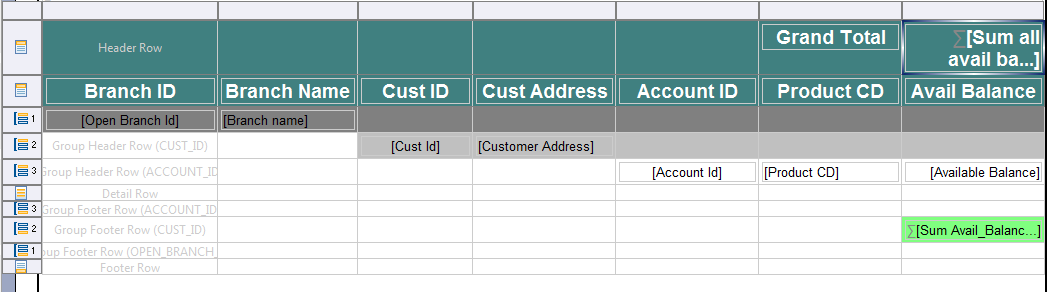

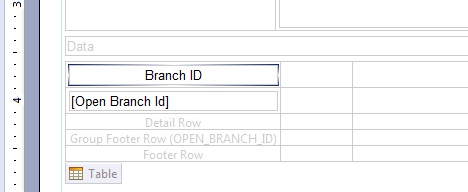

12- Designing the body of the report

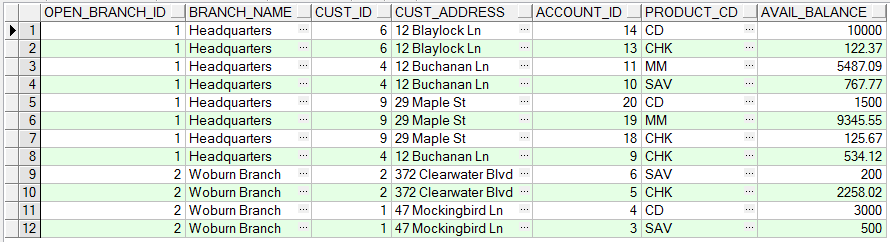

Raw data like the illustration below:

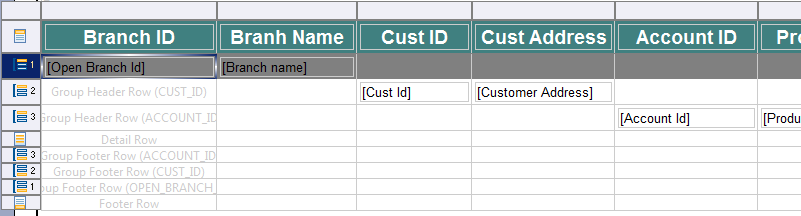

But we will design the report so that its display is more simple and eye-catching (As the below illustration)
We will carry out step by step.

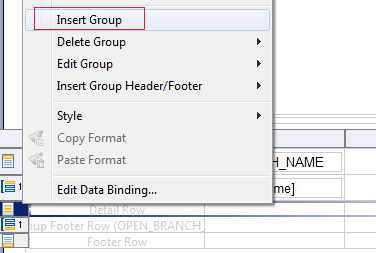

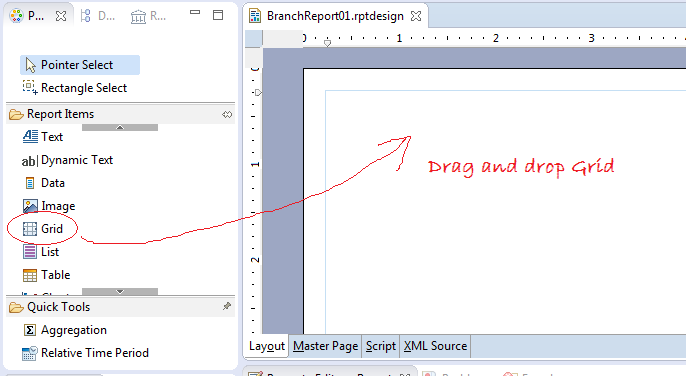

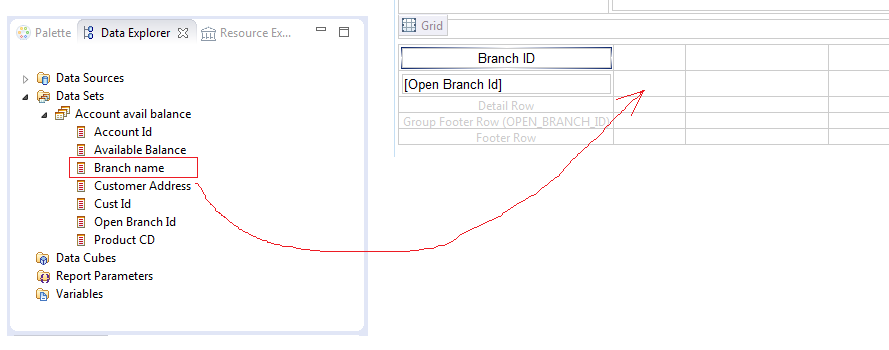

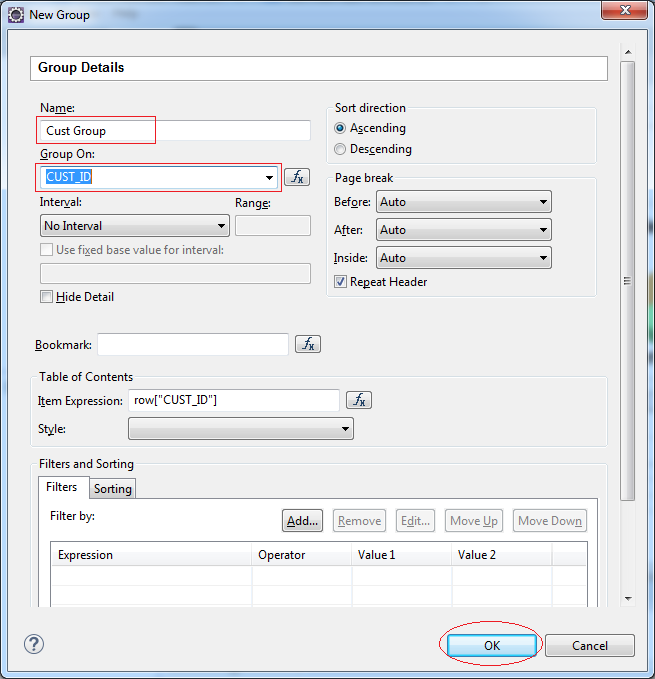

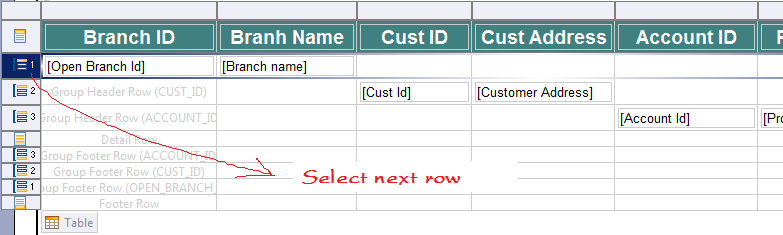

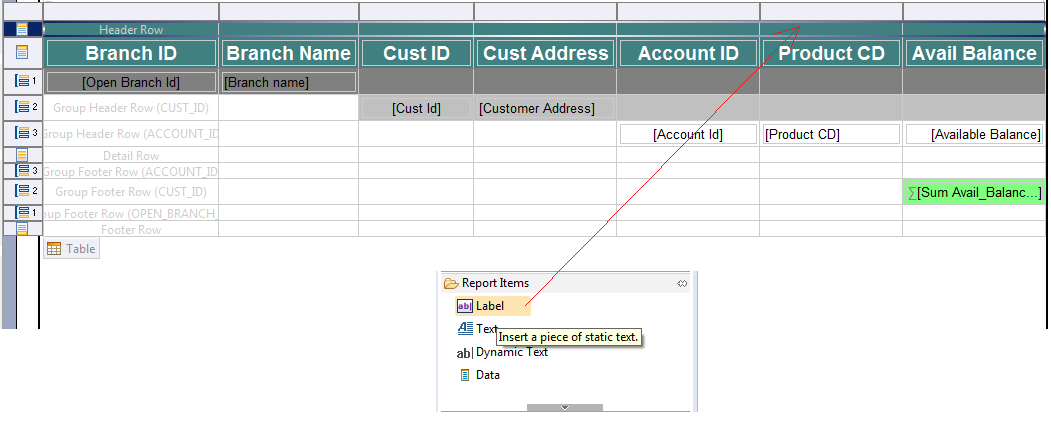

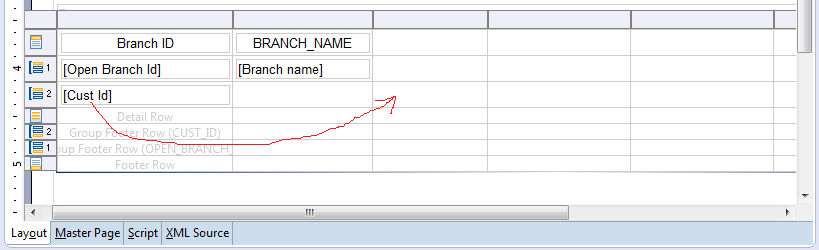

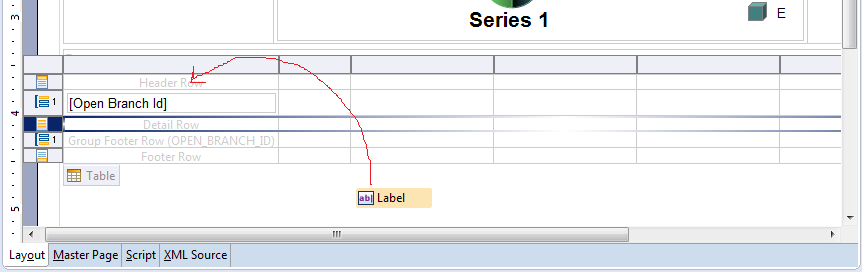

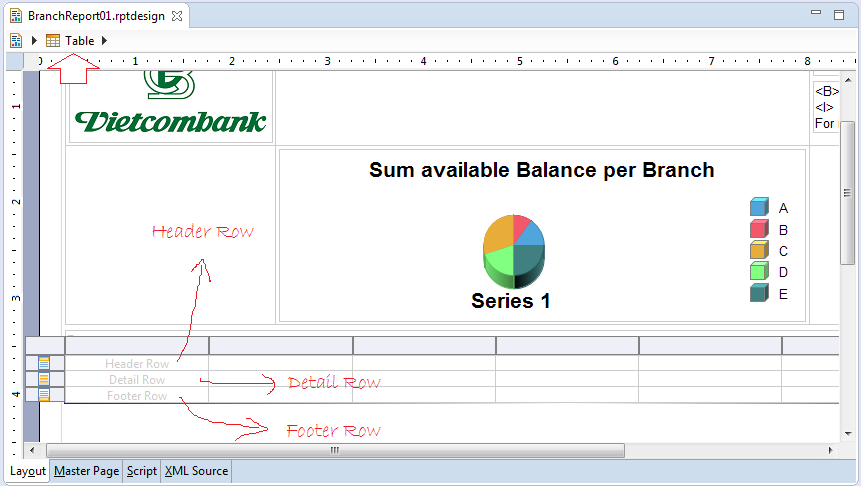

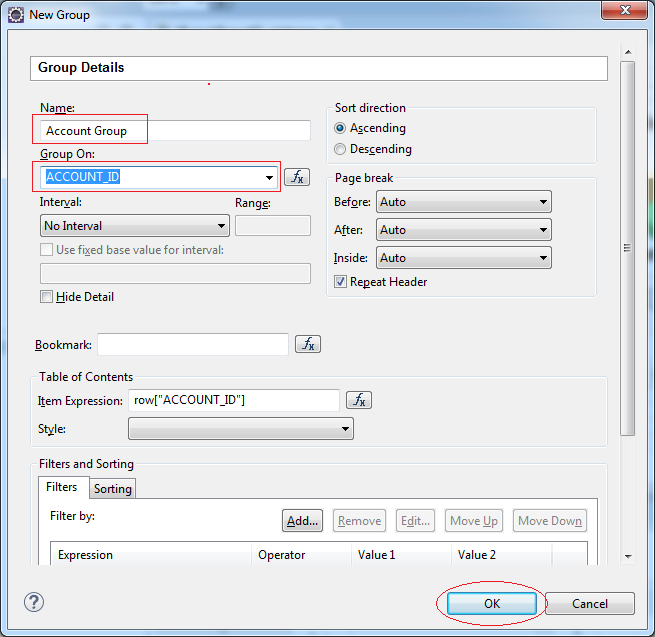

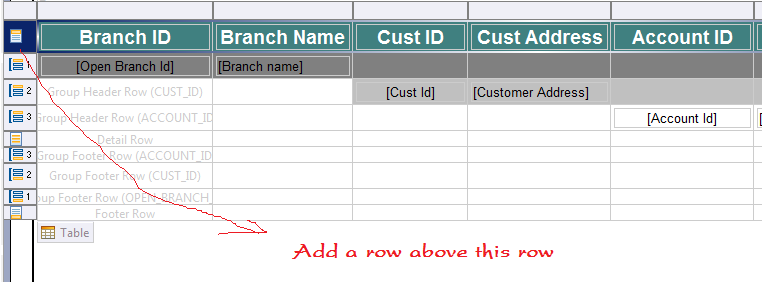

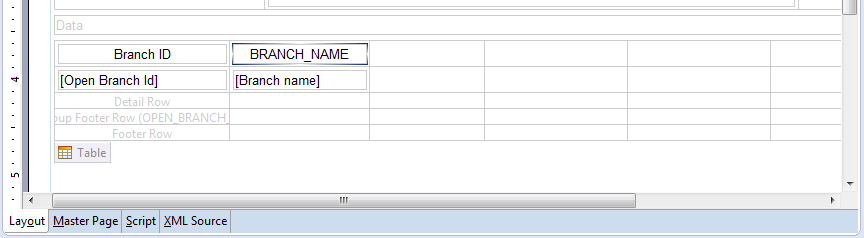

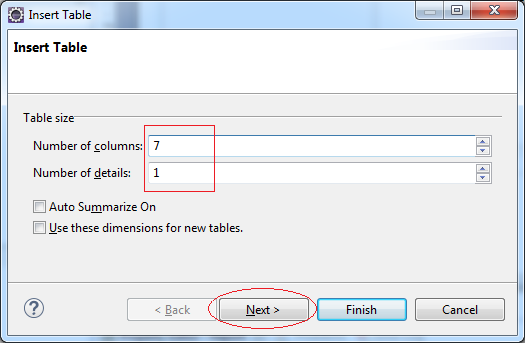

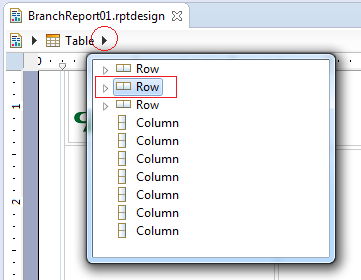

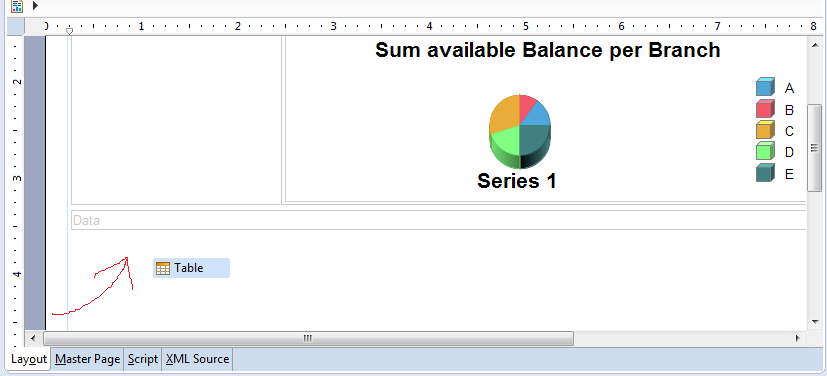

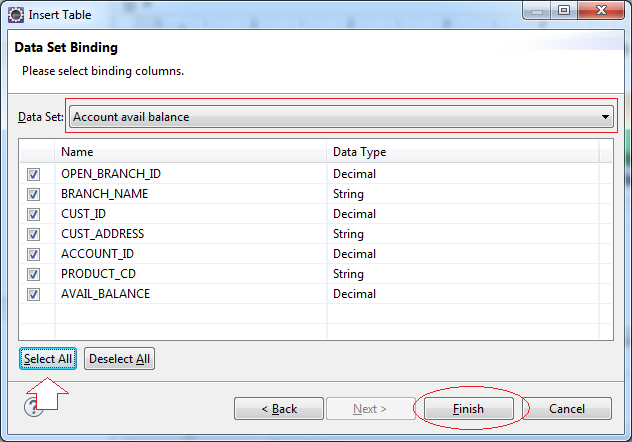

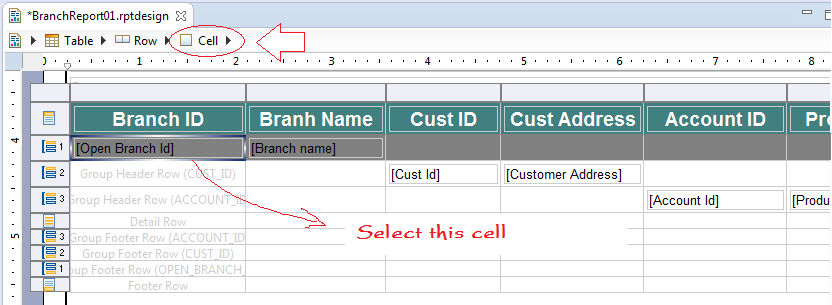

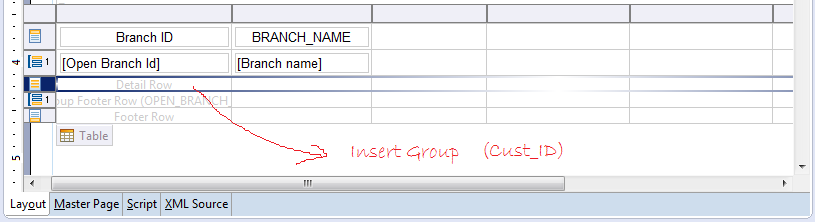

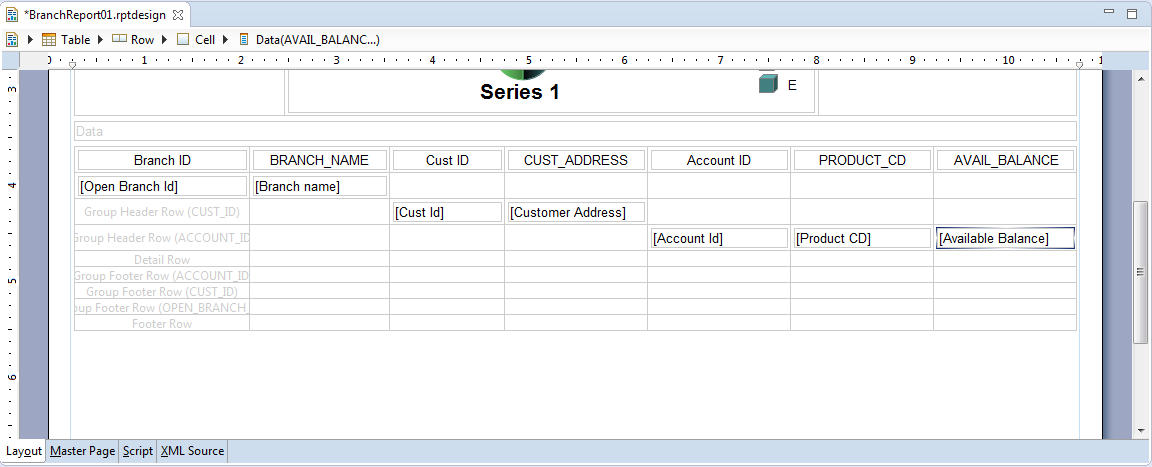

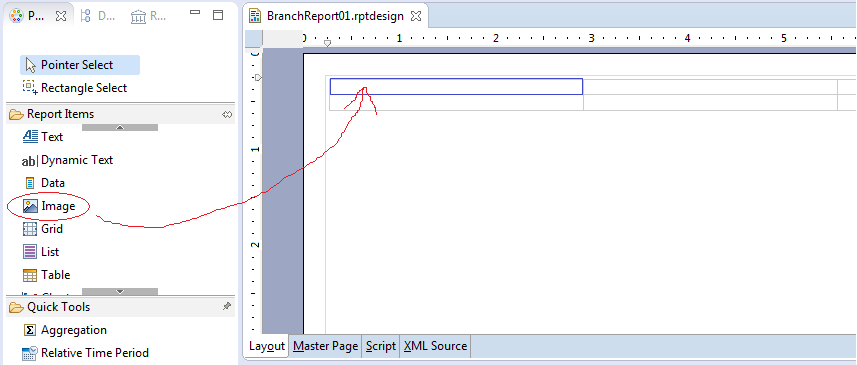

Drag and drop Table icon into the screen of report.

13- Run report (2)

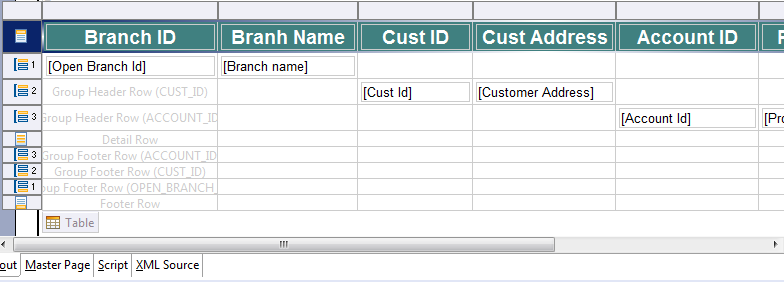

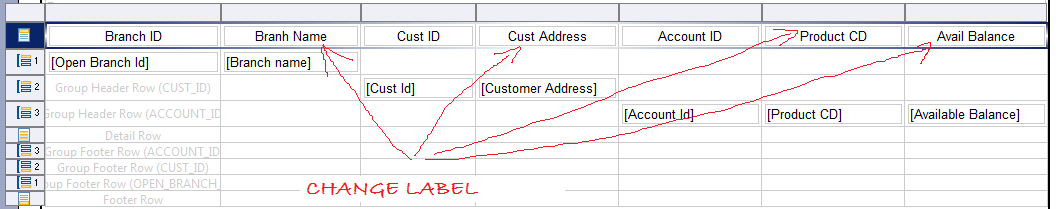

14- Edit style (1)

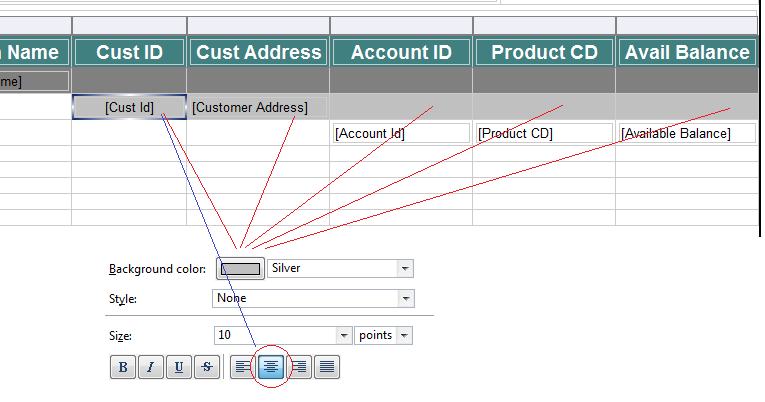

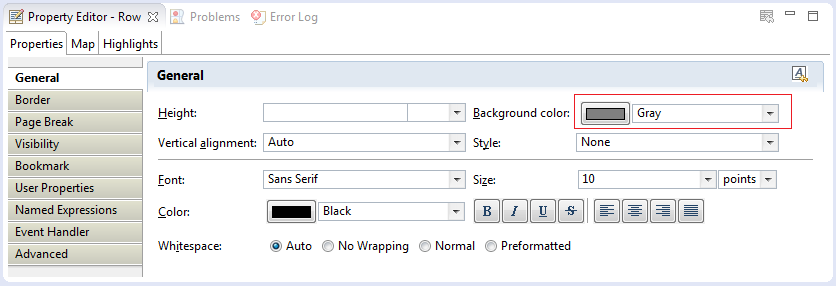

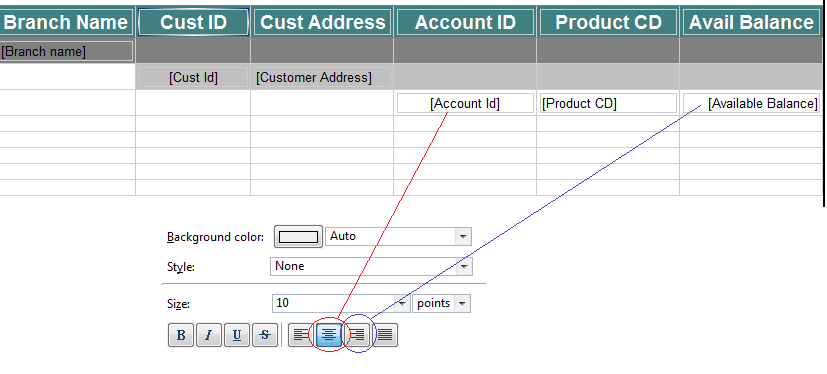

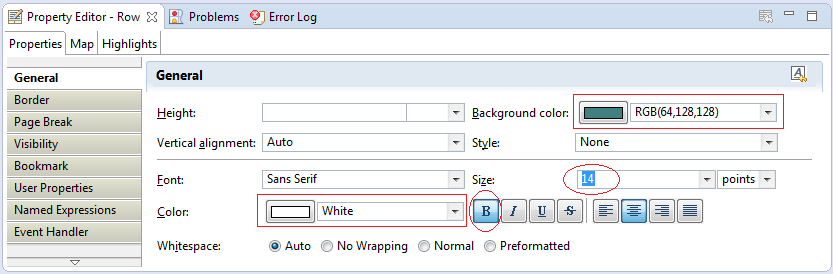

The report runs, but its interface is not beautiful. We need to adjust some styles.

15- Run report (3)

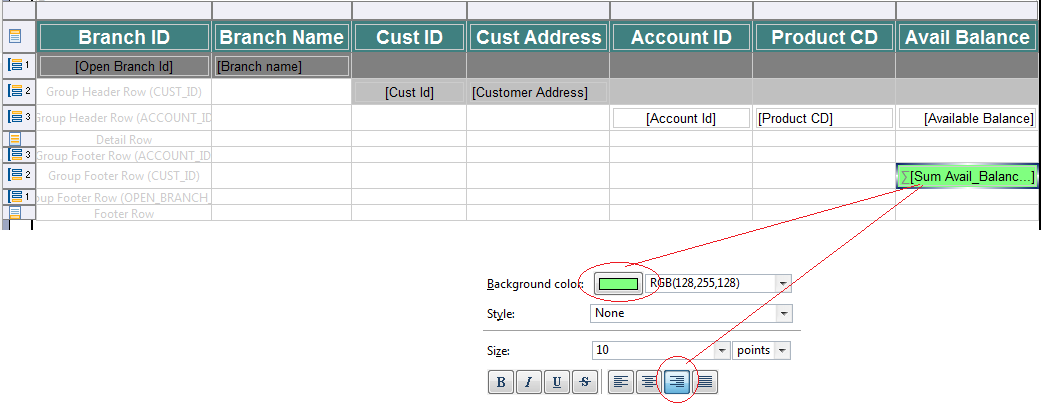

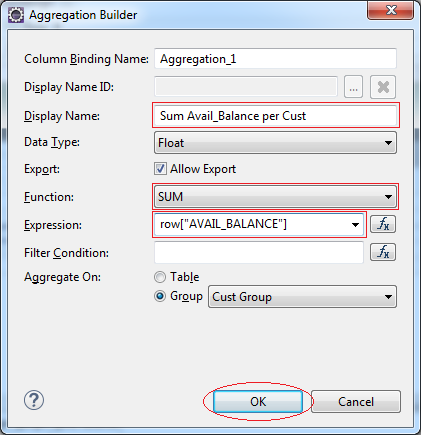

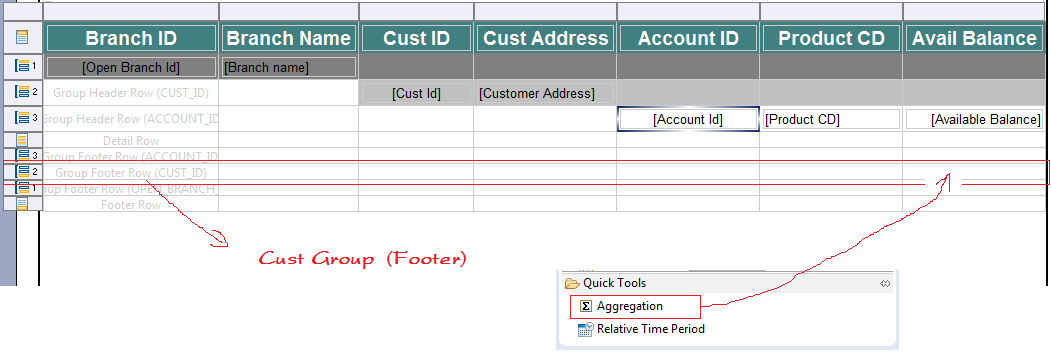

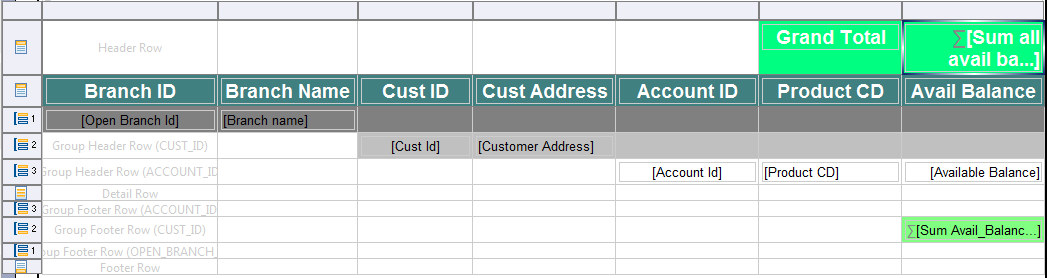

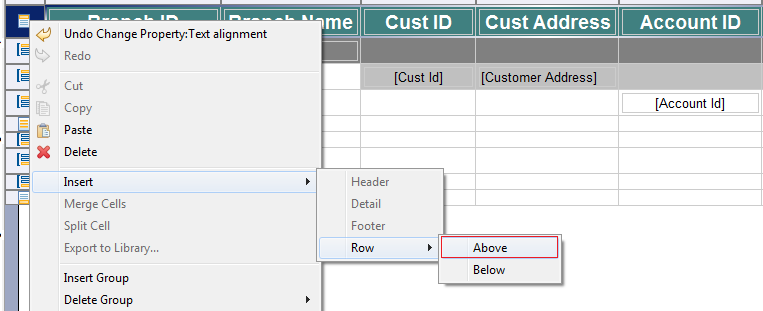

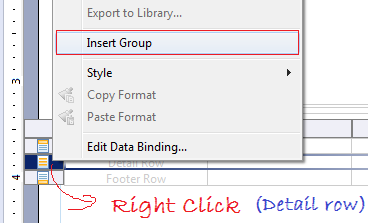

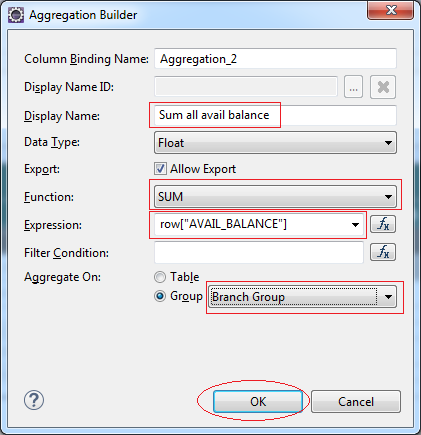

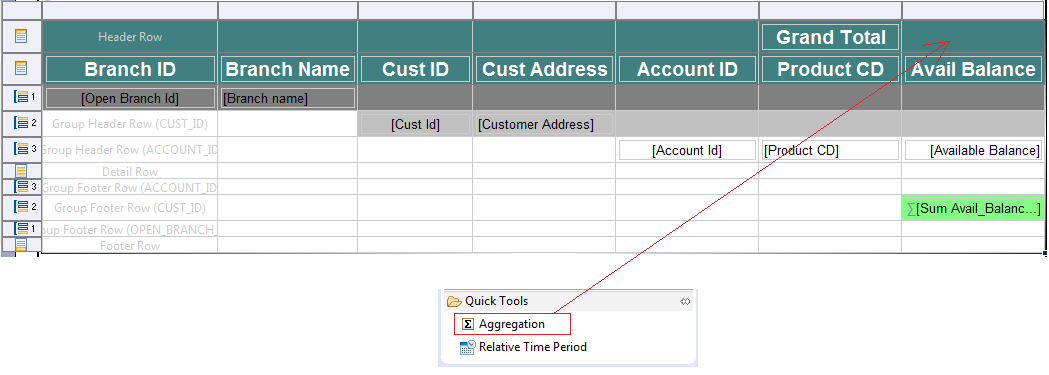

16- Sub Total
