1- Introduction

LearningSQL is a small database, used as an example in the instructions of learning SQL on the website of o7planning. There are 3 version on Databases:
  • Oracle
  • MySQL
  • SQLServer
In this article, I will instruct you to create this database in MySQL.
This database is made for example in the study guide SQL (MySQL) at:

2- Download Script

Download script at:
Direct Mediafire
Download Download
With MySQL, you just need to care about the file:
  • LearningSQL-MySQL-Script.sql

3- Run Script

3.1- Create SCHEMA LearningSQL in MySQL Workbench

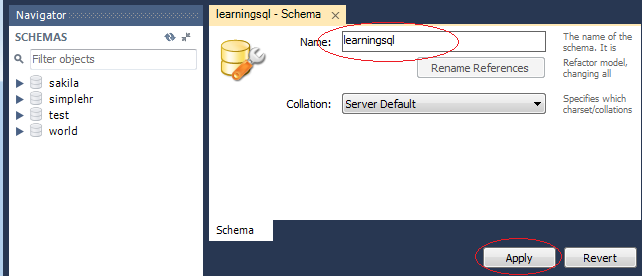

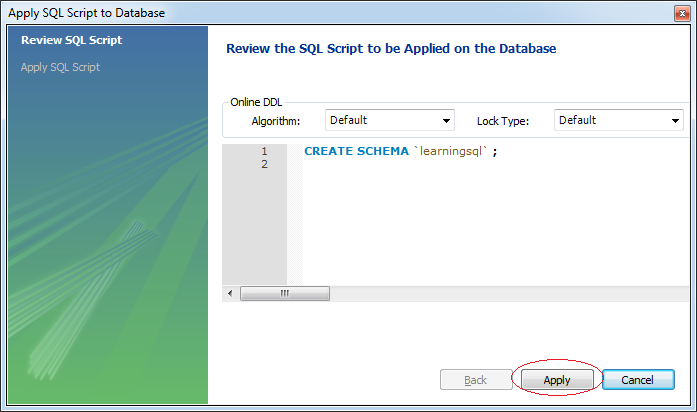

Create Schema named learningsql:

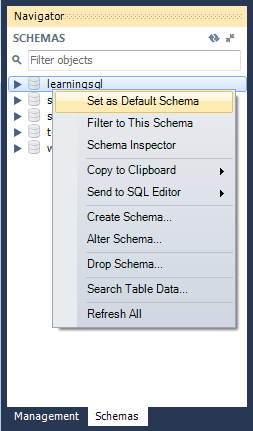

After Schema has been created, right-click on Schema, set up to default Schema to work.
Copy content of LearningSQL-MySQL-Script.sql and execute in SQL window.

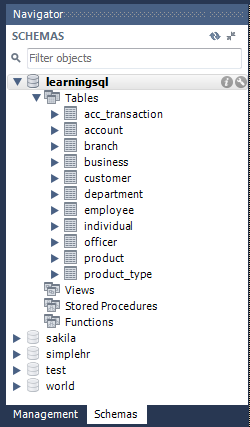

Running successfully.

4- Overview LearningSQL Database

LearningSQL is a small database simulating the data of a bank:
Table Name Description
ACCOUNT The table saves the bank accounts. Each of customer can register multiple accounts each of which corresponds to a product type provided by the bank.
(See more: PRODUCT)
ACC_TRANSACTION The table saves the transaction history between the bank and a certain account.
BRANCH The branch of bank.
BUSSINESS
CUSTOMER The table of customers
DEPARTMENT The department table of bank
EMPLOYEE The employee table of bank
OFFICER
PRODUCT The products and services of bank, such as:
  • Savings account
  • The business lines of credit
  • The loans to small business
  • .....
PRODUCT_TYPE The types of products and services, such as:
  • Bank acounts
  • Loans to individual and business
  • The provider of insurance.

5- The structure of the tables

5.1- ACCOUNT

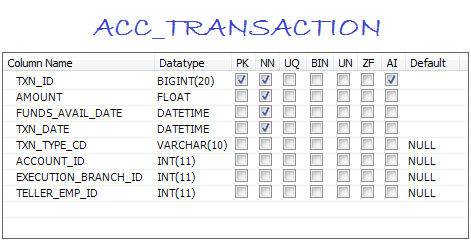

5.2- ACC_TRANSACTION

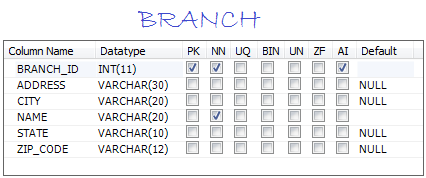

5.3- BRANCH

5.4- BUSINESS

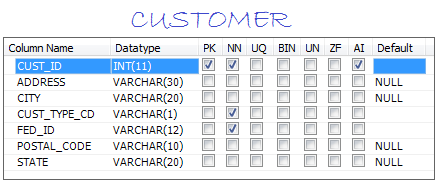

5.5- CUSTOMER

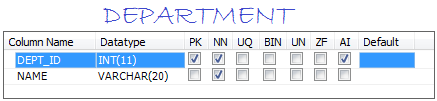

5.6- DEPARTMENT

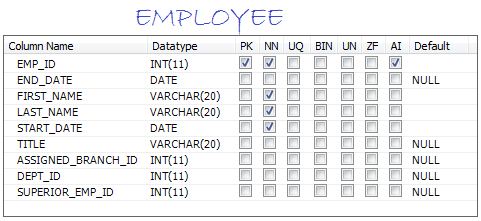

5.7- EMPLOYEE

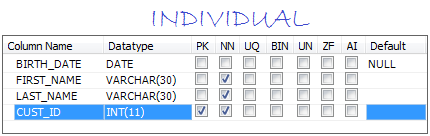

5.8- INDIVIDUAL

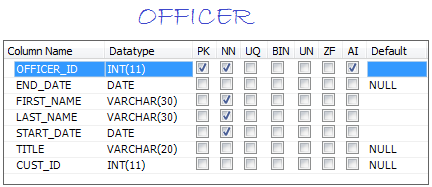

5.9- OFFICER

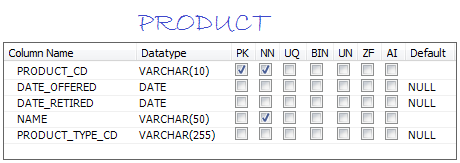

5.10- PRODUCT

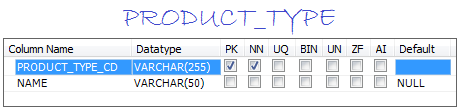

5.11- PRODUCT_TYPE
